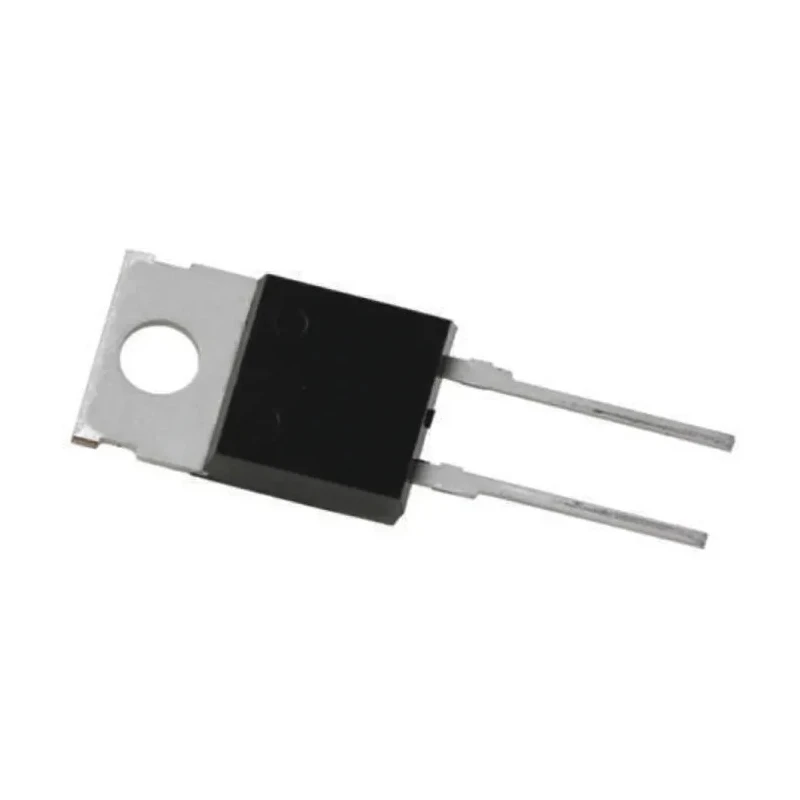

STMicroelectronics 600 V 8 A Switching Diode 2-Pin TO-220AC STTH8L06D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH8L06D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH8L06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 8μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 105ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
| STMicroelectronics Diode, STTA806DBrand | STMicroelectronics |
Key Features
- The diode features a single diode configuration in a TO-220AC package.
- It has a maximum forward voltage drop of 1.3V ensuring efficient conduction.
- The peak reverse recovery time is 105ns, supporting fast switching operations.
- Its peak non-repetitive forward surge current rating is 120A for transient current handling.
- Designed for through-hole mounting, it facilitates easy PCB assembly.
- Operates reliably between temperatures of -40°C and 175°C, suitable for harsh environments.
- Complies with RoHS standards, ensuring environmental safety.
- The diode is widely used in industrial electronics, power supplies, and switching regulator circuits.
Product Description
STMicroelectronics STTH8L06D is a high-quality switching diode in a TO-220AC package designed for robust performance in power electronics applications. With a maximum continuous forward current of 8 amperes and a reverse voltage tolerance of 600 volts, this diode ensures reliable and efficient rectification and switching operations.
The device configuration consists of a single diode with two pins, optimized for through-hole mounting on printed circuit boards. Its maximum forward voltage drop of 1.3 volts contributes to lower power dissipation, enhancing overall circuit efficiency. The diode's fast recovery time of 105 nanoseconds makes it well suited for high-frequency switching applications.
STTH8L06D supports high surge currents up to 120 amperes, enabling it to withstand transient loads without damage. It operates safely within an ambient temperature range from -40°C to 175°C, making it appropriate for use in industrial and automotive electronics that require durability across extreme temperature variations.
Compliance with RoHS directives ensures the product meets environmental standards by restricting hazardous substances. The diode has a maximum continuous forward current of 8A. Maximum reverse voltage is rated at 600V. Peak reverse recovery time is 105ns for quick switching.
Maximum forward voltage drop is 1.3V, reducing power loss. Peak non-repetitive surge current withstands 120A. Package type is TO-220AC, designed for through-hole mounting. Operating temperature ranges from -40°C to 175°C.
RoHS compliant for environmental safety.
This diode is extensively used in industrial and power management electronics, semiconductor switching circuits, and power supply designs. It is ideal for engineers and manufacturers requiring reliable semiconductor components for high voltage and current switching applications.
Explore more semiconductor products by STMicroelectronics and find compatible modules and components in the EnvMart catalogue for your industrial and electronic fabrication needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH8L06D is 8 amperes.
This diode has a peak reverse voltage rating of 600 volts.
The diode comes in a TO-220AC package type, designed for through-hole mounting.
The maximum forward voltage drop is 1.3 volts, which helps reduce power loss in circuits.
The peak non-repetitive forward surge current rating is 120 amperes, allowing it to handle transient loads effectively.
The peak reverse recovery time is 105 nanoseconds, making it suitable for high-frequency switching applications.
It operates reliably within a temperature range of -40°C to 175°C, suitable for harsh environments.
This diode features a 2-pin configuration, optimized for easy PCB assembly.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements by restricting hazardous substances.
The height of this diode is 9.3 mm and the width is 4.6 mm.
This model is classified as a switching rectifier, designed for efficient rectification and switching operations.
The STTH8L06D is widely used in industrial electronics, power supplies, and switching regulator circuits.
