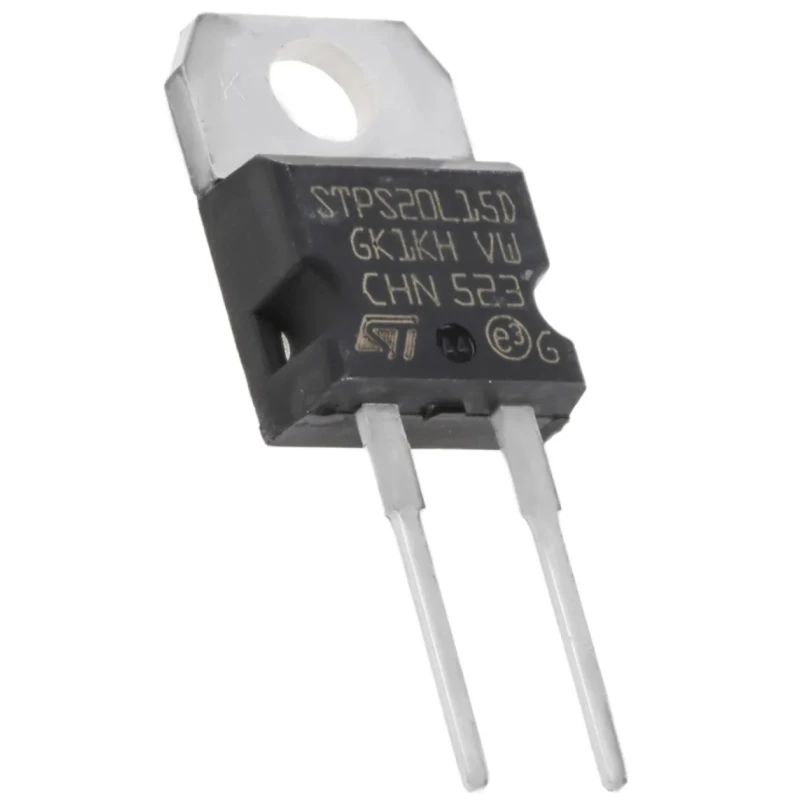

STMicroelectronics 15 V 20 A Schottky Diode 2-Pin TO-220AC STPS20L15D
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | STPS20L15D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPS20L15 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 15V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 310A |
| Maximum Forward Voltage Vf | 0.28V |
| Vishay 15V 9A, Schottky Diode, 2-Pin DO-204AR VS-95SQ015Brand | Vishay |
Key Features
- Through hole mount type ensures easy installation on standard PCBs.
- Low forward voltage of 0.28V reduces power loss efficiently.
- Capable of peak non-repetitive forward surge current up to 310A for robust transient tolerance.
- Operates reliably in temperatures ranging from -65°C to 125°C.
- Compact TO-220AC package with dimensions 10.4mm length, 4.6mm width, and 9.15mm height.
- Features single diode configuration optimized for rectification applications.
- Pin count of 2 simplifies circuit integration.
- Peak reverse current is low at 6mA, supporting efficient blocking performance.
Product Description
STMicroelectronics STPS20L15D Schottky Diode 2-Pin TO-220AC is a high-performance semiconductor component designed for efficient rectification in power conversion and electronic circuits. Its 20A maximum continuous forward current and 15V peak repetitive reverse voltage ratings cater to demanding operating conditions requiring reliable diode performance.
The diode’s through hole mounting simplifies PCB assembly and mechanical stability, while the TO-220AC package ensures effective heat dissipation and compact footprint. Operating temperature range from -65°C to 125°C allows this diode to function in harsh industrial, laboratory, and consumer environments.
Featuring a low forward voltage drop of 0.28V, the STPS20L15D minimizes conduction losses, improving energy efficiency in power supplies, converters, and rectifiers. The high peak non-repetitive forward surge current of 310A provides robustness against transient surges commonly seen in power electronics.
This single configuration Schottky diode has a minimal peak reverse current of 6mA ensuring efficient blocking capability and reduced leakage. Applications include power management, battery chargers, power supplies, industrial control systems, and other electronic devices requiring fast switching and low voltage drops.
Through hole mounting for easy PCB installation. Widely used in industrial and consumer electronic applications. Compact TO-220AC package for space-constrained designs. High current handling capabilities to support demanding circuits.
Robust surge current tolerance for transient protection. EnvMart customers can explore advanced semiconductor solutions in the Schottky diode category to find components suited for various electronic and industrial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STPS20L15D Schottky diode is 20A.
The peak reverse repetitive voltage rating of this diode is 15V.
The forward voltage drop for this model is 0.28V, which helps reduce power loss efficiently.
It can handle a peak non-repetitive forward surge current of up to 310A.
This diode operates reliably in temperatures ranging from -65°C to 125°C.
The dimensions of the TO-220AC package are 10.4mm in length, 4.6mm in width, and 9.15mm in height.
The STPS20L15D features a through hole mounting type, which simplifies installation on standard PCBs.
This model has a pin count of 2, which simplifies circuit integration.
The peak reverse current is low at 6mA, supporting efficient blocking performance.
This diode is suitable for applications including power management, battery chargers, and power supplies.
The diode configuration is single, optimized for rectification applications.
The country of origin for this diode is India.
