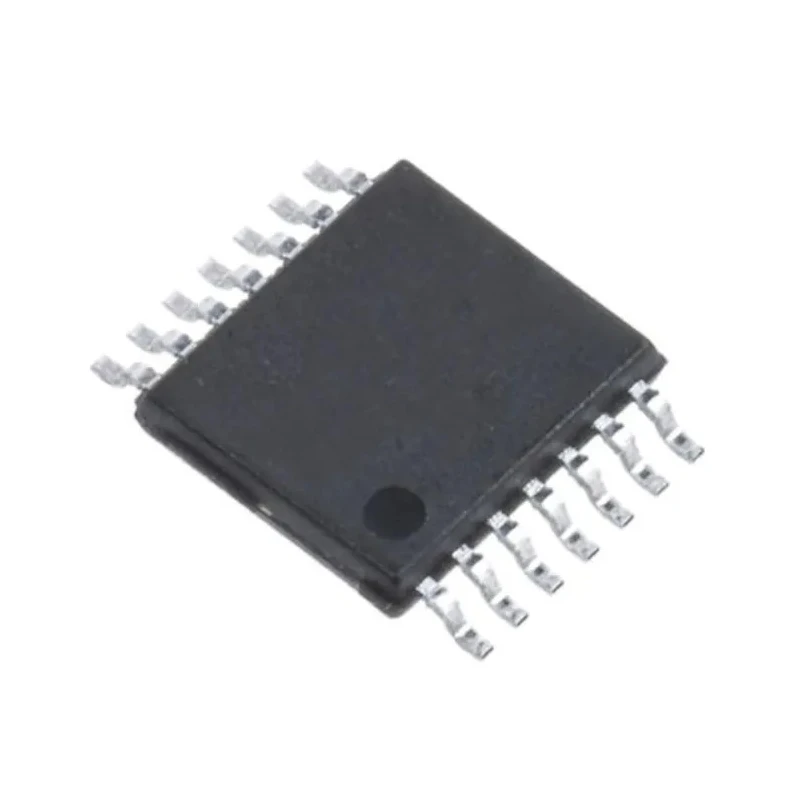

onsemi Voltage Level Shifter Buffer 1 Low Voltage 14-Pin TSSOP 74LVX125MTCX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | 74LVX125MTCX |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LVX125 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVX |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 9ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 4mA |
| Translation | Low Voltage |
Key Features
- This device features four independent non-inverting buffers with 3-STATE outputs.
- It supports bi-directional logic level shifting from 5V to 3V systems.
- Inputs tolerate voltages up to 7V, enabling robust interfacing.
- Low power consumption suitable for 3.3V low noise applications.
- Guaranteed simultaneous switching noise level and dynamic threshold performance.
- Operates within a temperature range of -40°C to 85°C for industrial suitability.
- Surface mountable in a compact TSSOP package with 14 pins.
- Designed for general use in electronic systems requiring voltage translation.
Product Description
onsemi 74LVX125MTCX Voltage Level Shifter Buffer 1 Low Voltage in a 14-Pin TSSOP package is engineered for efficient voltage level translation and buffering in electronic circuits.
The LVX125 comprises four independent non-inverting buffers equipped with 3-STATE outputs, ensuring excellent signal integrity and flexible control. It supports bi-directional operation with input voltage tolerance up to 7 volts, allowing direct interfacing between 5V and 3V logic systems. This capability is ideal for modern low voltage applications, particularly in 3.3V systems where noise minimization and power efficiency are critical.
With a maximum propagation delay time of 9 nanoseconds at a specified load capacitance, this buffer offers swift signal transitions suitable for high-speed digital circuits. The device operates across an industrial temperature range from -40°C to 85°C, making it reliable for harsh environments. Its surface mount design in a TSSOP package reduces board space without compromising functionality.
This Voltage Level Shifter is broadly applicable in electronic component designs that require seamless voltage interfacing, such as logic translation, microcontroller communications, and mixed-voltage signal processing in industrial, laboratory, construction, and manufacturing electronics.
Features four non-inverting buffers with 3-STATE outputs for efficient buffering. Supports bi-directional translation between 5V and 3V logic levels. Input tolerance up to 7V ensures compatibility with different voltage systems.
Low supply current suitable for low power applications. Compact 14-Pin TSSOP surface-mount package minimizes PCB footprint. Industrial temperature range operation from -40°C to 85°C. Guaranteed dynamic threshold and simultaneous switching noise levels.
Widely used in industrial, laboratory, and manufacturing electronics. Explore a wide range of electronic component solutions in the Semiconductor category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
It tolerates input voltages up to 7V, allowing for robust interfacing between different voltage systems.
This device features four independent non-inverting buffers with 3-STATE outputs.
The maximum propagation delay time is 9 nanoseconds at a specified load capacitance.
The supply voltage range is from 2V to a maximum of 3.6V.
It comes in a compact 14-Pin TSSOP surface-mount package.
This model supports bi-directional voltage level shifting.
The minimum operating temperature is -40°C, making it suitable for industrial environments.
The output type is 3-STATE, allowing for flexible control in electronic circuits.
It is broadly applicable in electronic component designs requiring voltage translation, such as logic translation and microcontroller communications.
The height of this model is 1.05mm.
The logic family for this device is LVX.
