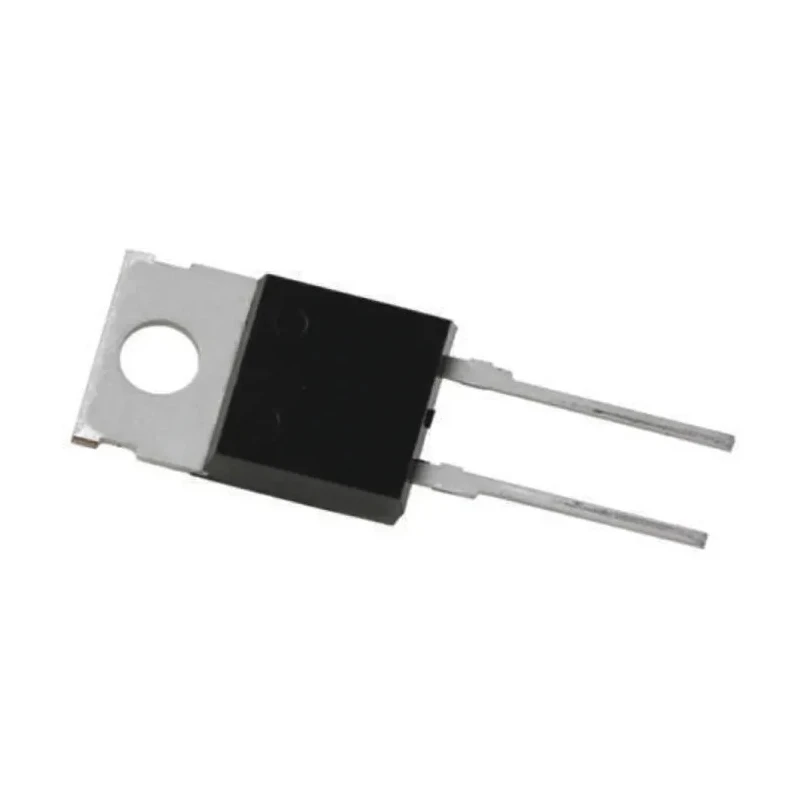

Vishay Fast Recovery Diode 800 V 20 A 2-Pin TO-220 VS-20ETF08-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10.51mm |
| Brand | Vishay |
| Height | 8.76mm |
| Length | 10.54mm |
| Model | VS-20ETF08-M3 |
| Width | 4.57mm |
| Mount Type | Through Hole |
| Series | VS-20ETF-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 355A |
| Maximum Forward Voltage Vf | 1.31V |
| Peak Reverse Recovery Time trr | 400ns |
Key Features
- 800 V peak reverse repetitive voltage rating ensures robust insulation.
- 20 A maximum continuous forward current supports demanding power applications.
- Fast recovery rectifier type reduces switching losses efficiently.
- Compact 2-pin TO-220 package enables through-hole mounting and effective heat dissipation.
- Peak reverse current of 100 microamperes ensures low leakage during operation.
- Maximum operating temperature of 150°C allows for reliable high-temperature use.
- Peak non-repetitive forward surge current of 355 A accommodates surge load conditions.
- Maximum forward voltage drop of 1.31 V improves power efficiency.
Product Description
The Vishay VS-20ETF08-M3 is a fast recovery diode specifically engineered for high-efficiency power rectification in industrial and electronic circuit applications. Delivered in the standardized TO-220 through-hole package, this diode offers mechanical robustness and excellent heat conduction.
Featuring a maximum continuous forward current of 20 amperes and a peak reverse repetitive voltage of 800 volts, the device is suitable for demanding power electronic circuits including power supplies, inverters, and motor drives.
The fast recovery rectifier design minimizes switching losses, enabling improved efficiency in high-frequency switching power applications. With a peak reverse recovery time of only 400 nanoseconds and a maximum forward voltage drop of 1.31 volts, the diode contributes to enhanced energy conservation and reduced thermal dissipation.
Its peak non-repetitive forward surge capability of 355 amperes ensures the diode can withstand transient conditions without failure. The device operates reliably across a wide temperature range from -40°C up to a maximum of 150°C, suitable for industrial and automotive environments.
The diode’s compact 2-pin TO-220 package supports easy integration onto PCBs with through-hole mounting, providing easy installation and effective thermal management. Furthermore, it meets RoHS compliance standards, ensuring environmentally safe manufacturing and usage.
The Vishay VS-20ETF08-M3 fast recovery diode serves industrial, electronic manufacturing, automotive electronics, and power conversion applications requiring robust, efficient, and reliable diode performance.
800 V peak reverse repetitive voltage. 20 A maximum continuous forward current. Fast recovery rectifier type for improved efficiency. 2-pin TO-220 through-hole package. Peak reverse current of 100 μA. Operating temperature range from -40°C to 150°C.
355 A peak non-repetitive forward surge current. Max forward voltage drop of 1.31 V. Peak reverse recovery time of 400 ns. RoHS compliant.
This product is categorized under Schottky Diodes & Rectifiers for electronics manufacturing and power semiconductor applications. Browse EnvMart's extensive catalog for more advanced semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-20ETF08-M3 has a peak reverse repetitive voltage rating of 800 V.
This model supports a maximum continuous forward current of 20 A.
It is a fast recovery rectifier type diode, designed to minimize switching losses.
The diode is housed in a compact 2-pin TO-220 package, suitable for through-hole mounting.
The peak reverse recovery time is 400 nanoseconds.
The maximum forward voltage drop is 1.31 V, which helps improve power efficiency.
It operates reliably within a temperature range of -40°C to 150°C.
The diode can withstand a peak non-repetitive forward surge current of 355 A.
The peak reverse current is rated at 100 microamperes (100 μA), ensuring low leakage during operation.
The dimensions of the TO-220 package are approximately 10.54 mm in length, 4.57 mm in width, and 8.76 mm in height.
Yes, the Vishay VS-20ETF08-M3 meets RoHS compliance standards, ensuring environmentally safe manufacturing and usage.
This diode is suitable for industrial, electronic manufacturing, automotive electronics, and power conversion applications.
