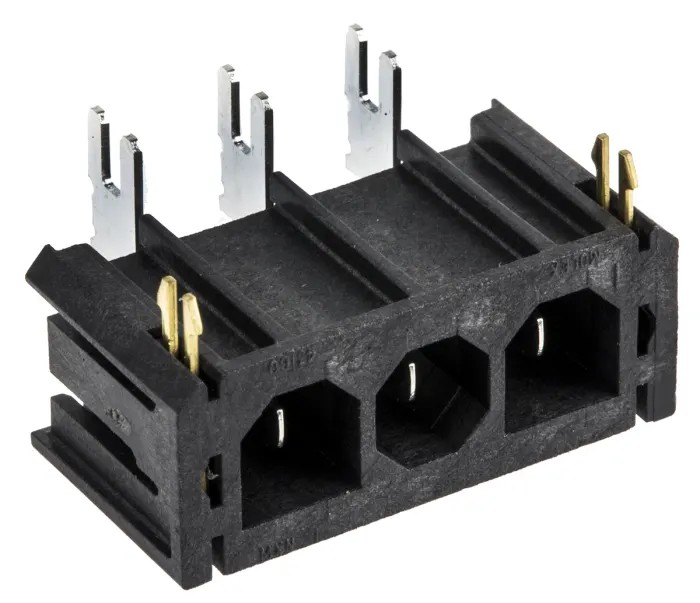

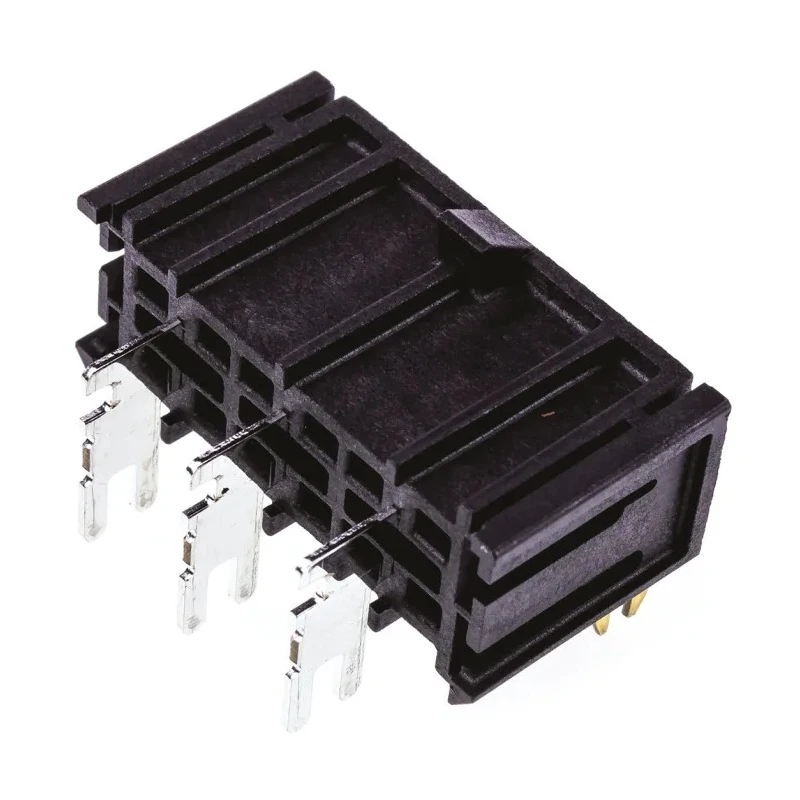

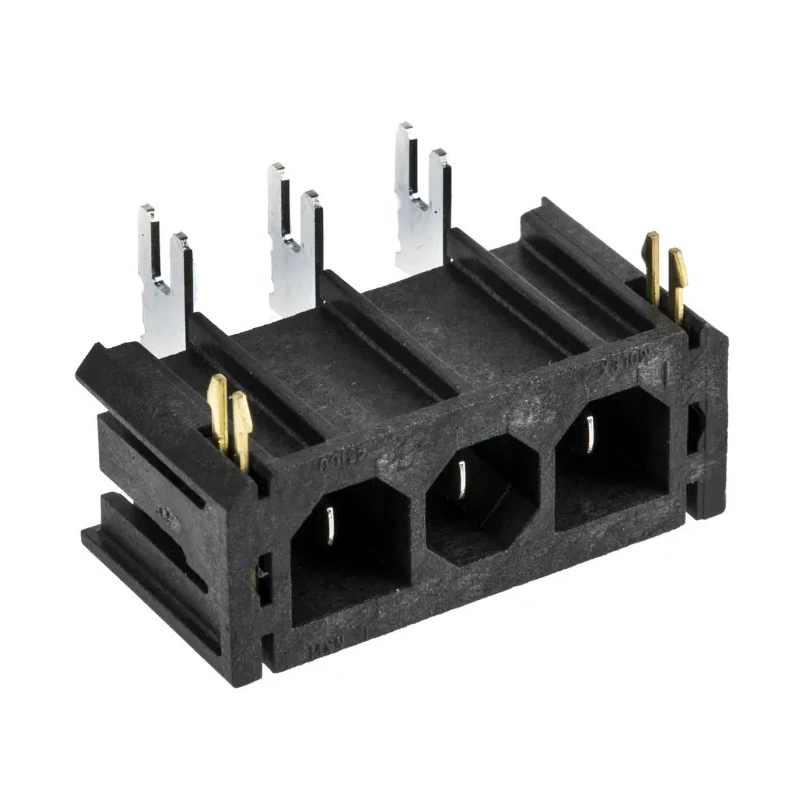

Molex Sabre Series Right Angle Through Hole PCB Header 3 Contacts 7.49 mm Pitch 1 Row Shrouded 43160-3103
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 18A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Sabre |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 7.49mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.81mm |
| Row Pitch | 7.5mm |
Key Features
- Features a single row of 3 male contacts for reliable connections.
- Constructed with high temperature thermoplastic housing for durability.
- Supports up to 18A current at 600V operating voltage.
- Right angle orientation with shrouded design for protection and correct mating.
- Contacts are brass with tin plating ensuring good conductivity and corrosion resistance.
- Suitable for PCB mounting via through-hole solder termination.
- Operates reliably between -40°C to 75°C temperature range.
- Tail pin length is 3.81 mm for secure PCB fitment.
Product Description
Molex 43160-3103 Sabre Series Right Angle Through Hole PCB Header is a robust single-row connector designed for high current applications up to 18A and 600V operating voltage.
The connector housing is made of high temperature thermoplastic material, which ensures durability and reliable insulation under various environmental conditions. Its right angle orientation and shrouded casing provide secure connections with positive locking and polarization to prevent incorrect mating and accidental disconnection.
This PCB header utilizes through-hole solder termination with 3.81 mm tail pins and is suitable for wire-to-board connection systems. It operates within an ambient temperature range from -40°C up to 75°C, making it ideal for industrial, manufacturing, and telecommunications applications.
The design includes harpoons for PCB fixation and complies with relevant UL standards, ensuring quality and safety. Overall, this Molex Sabre Series connector is engineered for reliable use in demanding electronic assemblies requiring high current capacity and secure mechanical connections.
Features a single row of 3 male contacts for reliable connections. Constructed with high temperature thermoplastic housing for durability. Supports up to 18A current at 600V operating voltage. Right angle orientation with shrouded design for protection and correct mating.
Contacts are brass with tin plating ensuring good conductivity and corrosion resistance. Suitable for PCB mounting via through-hole solder termination. Operates reliably between -40°C to 75°C temperature range. Tail pin length is 3.81 mm for secure PCB fitment.
This product is well suited for electronic, industrial, manufacturing, and power connector applications where secure PCB connections are critical. Explore the Molex Sabre Series and other Molex connectors on EnvMart for comprehensive power connector solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 18A.
The operating voltage for this connector is 600V.
It operates reliably within a temperature range of -40°C to 75°C.
This model features a single row with 3 male contacts.
It utilizes through-hole solder termination for mounting.
The housing is constructed from high temperature thermoplastic material.
The tail pin length is 3.81 mm, ensuring secure fitment on the PCB.
This connector has a right angle orientation.
The contacts are made of brass with tin plating for good conductivity.
This model is shrouded, providing protection and correct mating.
It is suitable for electronic, industrial, manufacturing, and power connector applications.
The country of origin for this PCB header is India.
