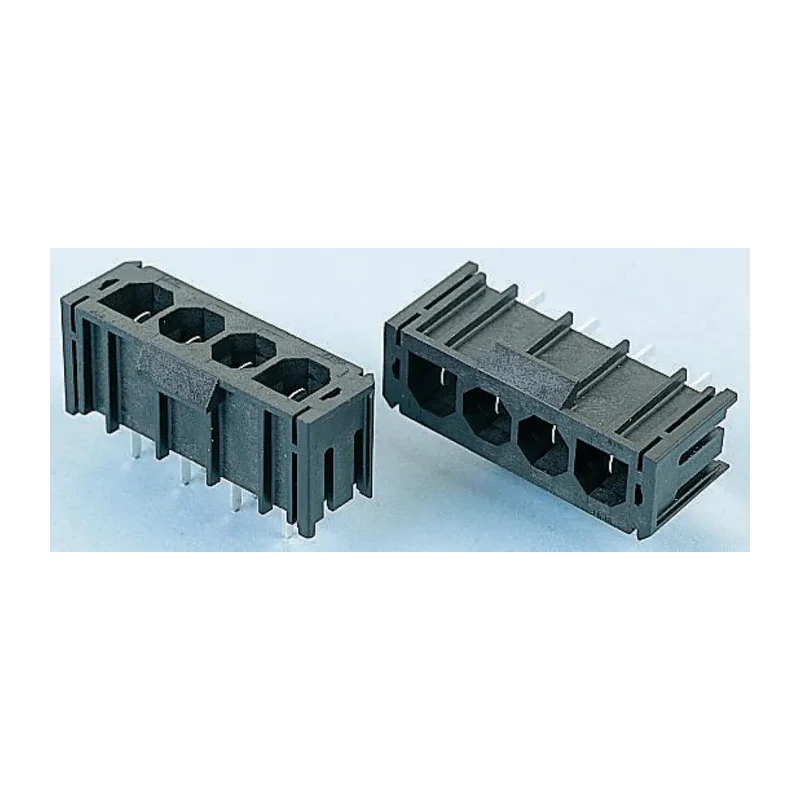

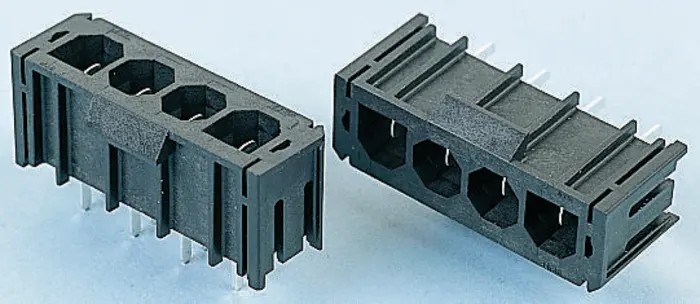

Molex Sabre Series Right Angle Through Hole PCB Header 4 Contact 7.5 mm Pitch 1 Row Shrouded 43160-3104
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 18A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Sabre |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.81mm |
Key Features
- Supports high current up to 18A for reliable power transmission.
- Constructed with high temperature thermoplastic housing for durability.
- Right angle orientation with through hole mount for secure PCB connection.
- Brass male contacts plated with tin ensure excellent conductivity and corrosion resistance.
- Pitch of 7.5 mm and single-row configuration for efficient PCB layout.
- Harpoons on contacts provide secure fixing on the PCB board.
- Operating temperature range from -40°C to 75°C for versatile environments.
- Designed for wire-to-board connector system with shrouded casing to prevent accidental disconnections.
Product Description
Molex 43160-3104 Sabre Series Right Angle Through Hole PCB Header features a robust design suitable for electronic and industrial applications requiring reliable PCB connections. This connector supports a 7.5 mm pitch, facilitates wire-to-board connections, and is shrouded for added protection and polarization to ensure proper mating.
The housing is made from high temperature thermoplastic, ensuring the connector withstands harsh environments with operating temperatures ranging from -40°C to 75°C. The male brass contacts are tin plated to uphold conductivity and resist corrosion, accommodating up to 18A current capacity, making it ideal for high power needs.
The right angle, through-hole mounting type ensures strong mechanical stability on printed circuit boards. Harpoons secure the connections firmly, enhancing reliability even under vibration or movement. The shrouded design and positive locking casings with audible clicks prevent accidental disconnections during operation.
This Molex Sabre Series connector is compliant with UL E29179 and UL1950 and CSA LR19980 standards, emphasizing safety and quality assurance for electronic applications. Supports high current up to 18A for reliable power transmission.
Constructed with high temperature thermoplastic housing for durability. Right angle orientation with through hole mount for secure PCB connection. Brass male contacts plated with tin ensure excellent conductivity and corrosion resistance.
Pitch of 7.5 mm and single-row configuration for efficient PCB layout. Harpoons on contacts provide secure fixing on the PCB board. Operating temperature range from -40°C to 75°C for versatile environments. Designed for wire-to-board connector system with shrouded casing to prevent accidental disconnections.
Ideal for industrial electronic equipment, manufacturing automation, power distribution, and other applications requiring a durable and reliable PCB connection solution. Browse the Electronics & Electricals category on EnvMart for more connectors fitting various technical demands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current capacity of 18A, making it suitable for high power applications.
The pitch size of this connector is 7.5 mm, allowing for efficient PCB layout in single-row configurations.
It utilizes a through hole mounting type, ensuring strong mechanical stability on printed circuit boards.
The housing is made from high temperature thermoplastic, while the contacts are made of brass and plated with tin for conductivity and corrosion resistance.
The operating temperature range is from -40°C to 75°C, making it suitable for various environments.
This model features 4 contacts, designed for reliable connections in electronic applications.
This connector is shrouded, which helps prevent accidental disconnections and ensures proper mating.
The termination type for this PCB header is solder, which is commonly used for secure connections on PCBs.
It is compliant with UL E29179, UL1950, and CSA LR19980 standards, ensuring safety and quality assurance.
The orientation of this model is right angle, which facilitates space-efficient connections on the PCB.
The tail pin length is 3.81 mm, which is designed for effective soldering to the PCB.
This model is suitable for industrial electronic equipment, manufacturing automation, and power distribution applications.
