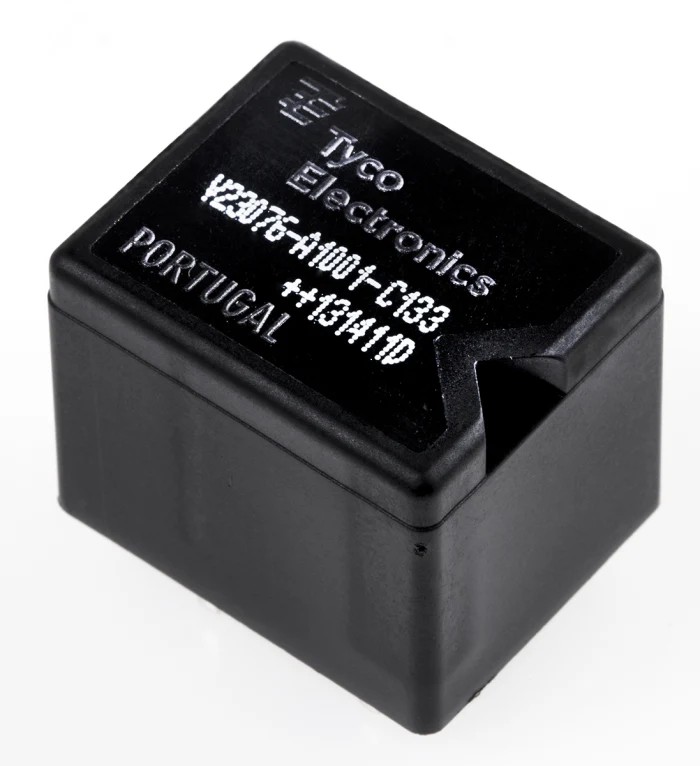

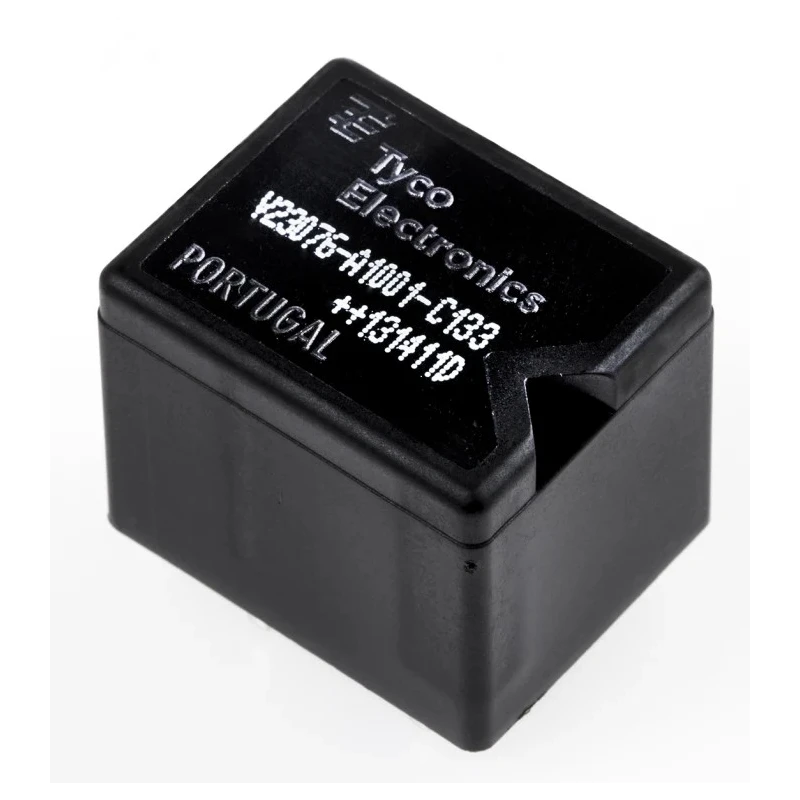

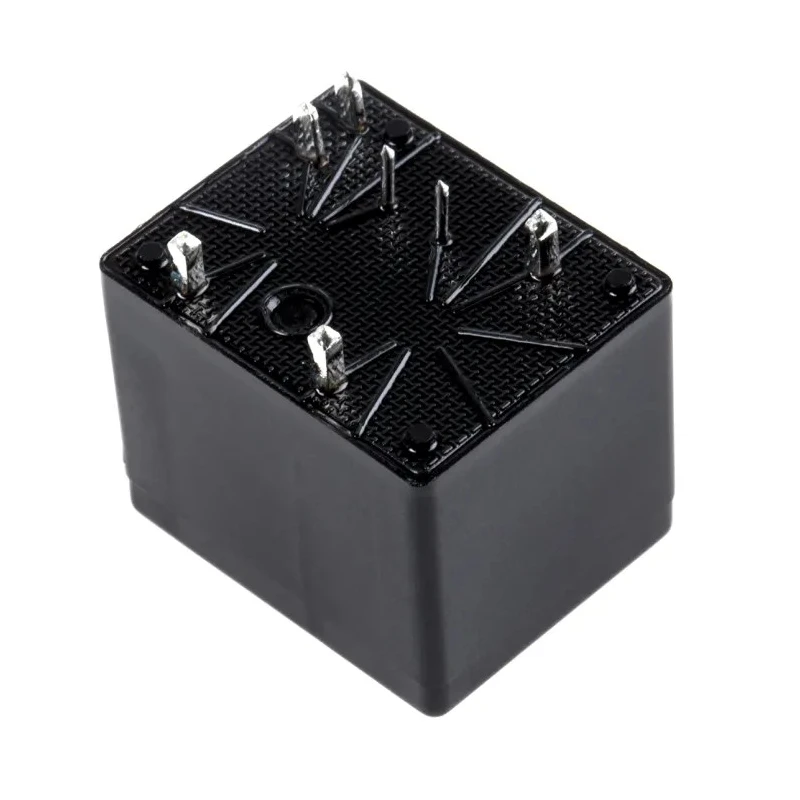

TE Connectivity PCB Automotive Relay 12V DC Coil Voltage 30A Switching Current SPDT V23076A1001C133 1393277-4
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 21.5mm |
| Operating Temperature Range | -40 °C to 85°C |
| Length | 26.5mm |
| Model | V23076A1001C133 1393277-4 |
| Depth | 21.5mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | K |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
Key Features
- The relay features a coil resistance of 90 ohms to ensure stable operation.
- It is suitable for PCB mounting due to its PCB mount type and solder terminal type.
- Operates reliably across a wide temperature range from -40°C to 125°C maximum.
- Constructed with durable silver contact material for enhanced conductivity and durability.
- Compact dimensions of 26.5mm length, 21.5mm height, and 21.5mm depth support versatile PCB applications.
- Part of the K series, known for high quality and performance in automotive applications.
- Immersion cleanable and protected to IP67, suitable for harsh environments.
- Typical applications include lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
Product Description
TE Connectivity V23076A1001C133 1393277-4 PCB Automotive Relay features a 12V DC coil voltage with a 30A switching current and SPDT contact configuration. Manufactured with silver contacts and designed for PCB mounting applications, it offers reliable performance in automotive and industrial electronic control systems.
This relay supports a coil resistance of 90Ω and is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for demanding automotive environments. Its compact size, with a length of 26.5mm, height of 21.5mm, and depth of 21.5mm, allows for flexible PCB integration while maintaining durability and performance integrity.
The K series relay from TE Connectivity includes features such as resistive or inductive load capability and immersion cleaning protection (IP67), making it reliable for use in lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
With a solder terminal type and one-pole configuration, this relay ensures efficient electrical switching and is built to meet stringent automotive standards. The robust silver contact material enhances conductivity and longevity, vital for automotive and automation applications.
The relay provides reliable switching using single-pole double-throw contact configuration for versatile circuit control. It is PCB mount type, facilitating easy assembly and integration into automotive control systems. Designed for harsh environments, it features an operating temperature range from -40°C to 125°C and is immersion cleanable to IP67 standards.
The 12V coil voltage and 90Ω coil resistance optimize performance for automotive electrical systems. Compact dimensions allow the relay to fit into space-constrained electronic assemblies. Silver contact material provides excellent electrical conductivity and corrosion resistance.
Commonly applied in automotive circuits such as lock control, seat adjustments, window defoggers, and starter solenoid switches.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It has a maximum switching current of 30A.
This model features a single-pole double-throw (SPDT) contact configuration.
The relay has a length of 26.5mm, a height of 21.5mm, and a depth of 21.5mm.
The coil resistance is 90 ohms.
It operates reliably within a temperature range of -40°C to 125°C.
This relay is designed for PCB mounting.
The contacts are made of silver, enhancing conductivity and durability.
Yes, it is immersion cleanable and has an IP67 protection rating, making it suitable for harsh environments.
Typical applications include lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches.
It features solder terminals for easy installation.
This relay is part of the K series from TE Connectivity, known for high quality and performance in automotive applications.
