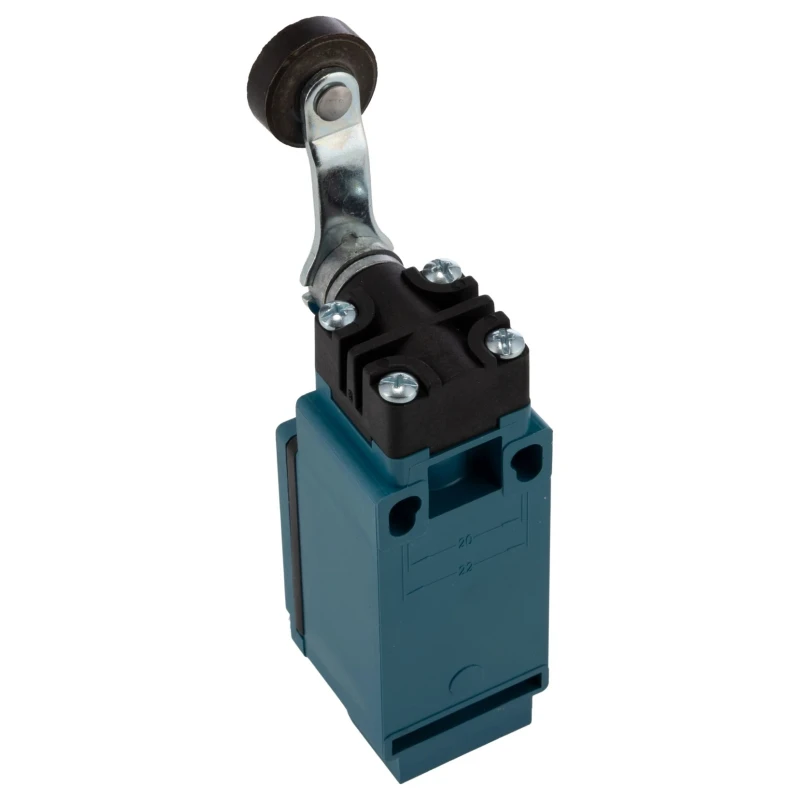

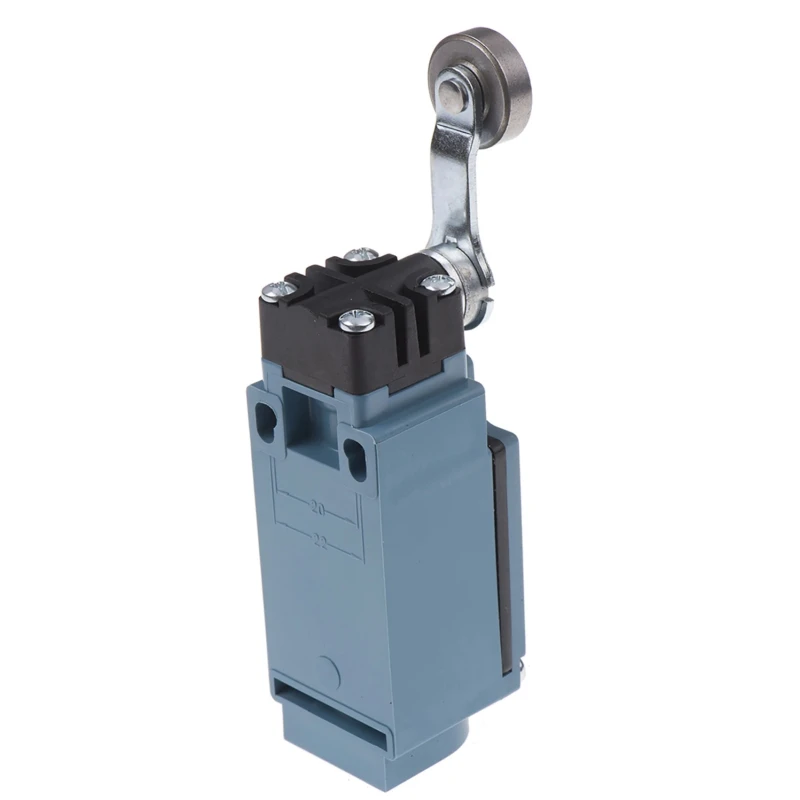

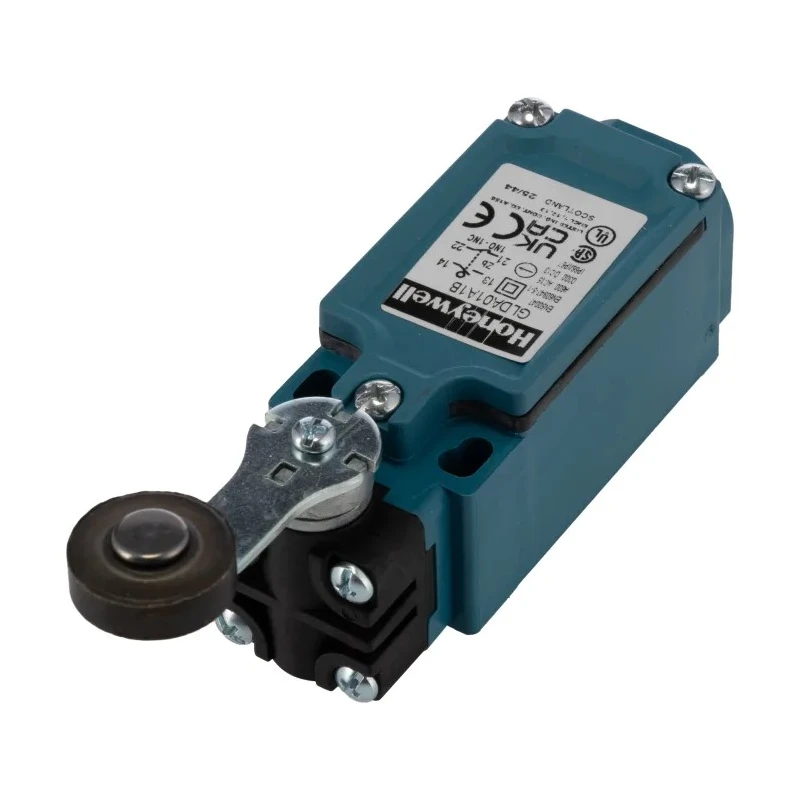

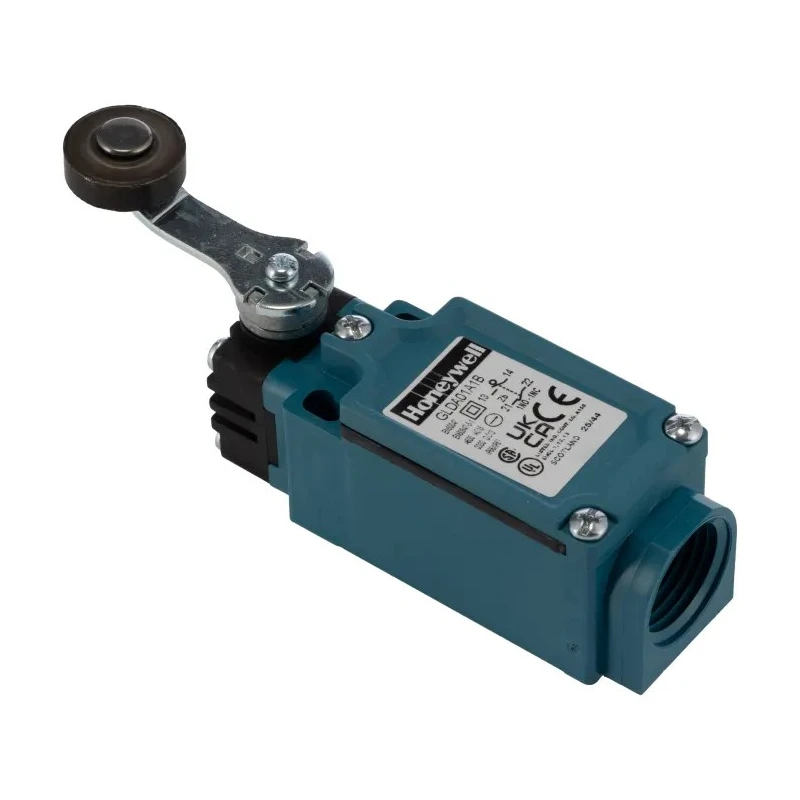

Honeywell Technologies GLD Series Roller Lever Limit Switch, SPDT, IP66, Fibreglass Reinforced Thermoplastic GLDA01A1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell Technologies |
| Length | 68.5mm |
| Model | GLDA01A1B |
| Depth | 26.35mm |
| IP Rating | IP66 |
| Width | 30.5mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | GLD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | EN, UL, RoHS, IEC, CSA, CE, CCC |
| Operating Force | 0.12Nm |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1/2 in to 14 NPT |
Key Features
- The roller lever actuator enables precise motion detection and discrete switching.
- SPDT snap-action contact offers reliable single-pole double-throw switching.
- IP66 fibreglass reinforced thermoplastic housing protects against dust and water jets.
- Capable of switching up to 10A at 240V AC and 250V DC for control applications.
- Designed for mechanical endurance of 10 million cycles for long service life.
- Wide operating temperature range from -40°C to 85°C suits extreme environments.
- Operating force of 0.12 Nm provides predictable trigger response under load.
- Conduit entry supports 1/2 inch to 14 NPT threaded conduit fittings.
Product Description
Honeywell Technologies GLDA01A1B is a GLD Series roller lever limit switch designed for industrial-grade mechanical position sensing in automation and control systems. This device uses a roller lever actuator to detect motion and provide a discrete switching signal with SPDT contact configuration.
The switch features a fibreglass reinforced thermoplastic housing rated to IP66 protection, ensuring resistance to dust ingress and powerful water jets. It supports switching currents up to 10A at 240V AC and 250V DC suitable for many industrial control circuits.
Its mechanical life expectancy is 10 million cycles, backed by a robust snap-action contact and a predictable operating force of 0.12 Nm. The wide operating temperature range from -40°C to 85°C enables use in harsh environments with extreme climates.
The unit accepts conduit entry compatible with 1/2 inch to 14 NPT threaded connections. It conforms to international standards such as EN, UL, RoHS, IEC, CSA, CE, and CCC to meet quality and safety requirements.
The roller lever actuator enables precise motion detection and switching. SPDT snap-action contact offers clear switching of single-pole double-throw circuits. IP66 fibreglass reinforced housing protects against dust and water ingress.
Rated switching currents of 10A accommodate significant control loads. Mechanical endurance of 10 million cycles supports long term reliability. Wide temperature tolerance from -40°C to 85°C suits industrial applications.
Low operating force ensures consistent and predictable actuation. Compatible with standard threaded conduit entries for easy installation. Meets multiple international certifications for performance and safety. Applications include conveyor end limits, safety interlocks, motor starter feedback, and material handling sensors.
This Honeywell GLD Series limit switch is optimal for industrial automation, manufacturing lines, HVAC, material handling, and safety control systems. EnvMart offers this reliable, high-quality Limit Switch for precise position sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can switch currents up to 10A at 240V AC and 250V DC, making it suitable for various industrial control applications.
This model operates within a wide temperature range from -40°C to 85°C, accommodating extreme environmental conditions.
It features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching capabilities.
It has a mechanical life expectancy of 10 million cycles, ensuring long-term reliability in various applications.
The housing is constructed from fibreglass reinforced thermoplastic, providing durability and protection against environmental factors.
It has an IP66 rating, which means it is protected against dust ingress and powerful water jets.
The operating force for this model is 0.12 Nm, ensuring predictable trigger response under load.
It uses a roller lever actuator, which enables precise motion detection and discrete switching.
The dimensions are 68.5mm in length, 30.5mm in width, and 26.35mm in depth.
It supports conduit entry for 1/2 inch to 14 NPT threaded fittings, facilitating easy installation.
It conforms to several international standards including EN, UL, RoHS, IEC, CSA, CE, and CCC, ensuring compliance with quality and safety requirements.
This limit switch is suitable for applications such as conveyor end limits, safety interlocks, motor starter feedback, and material handling sensors.
