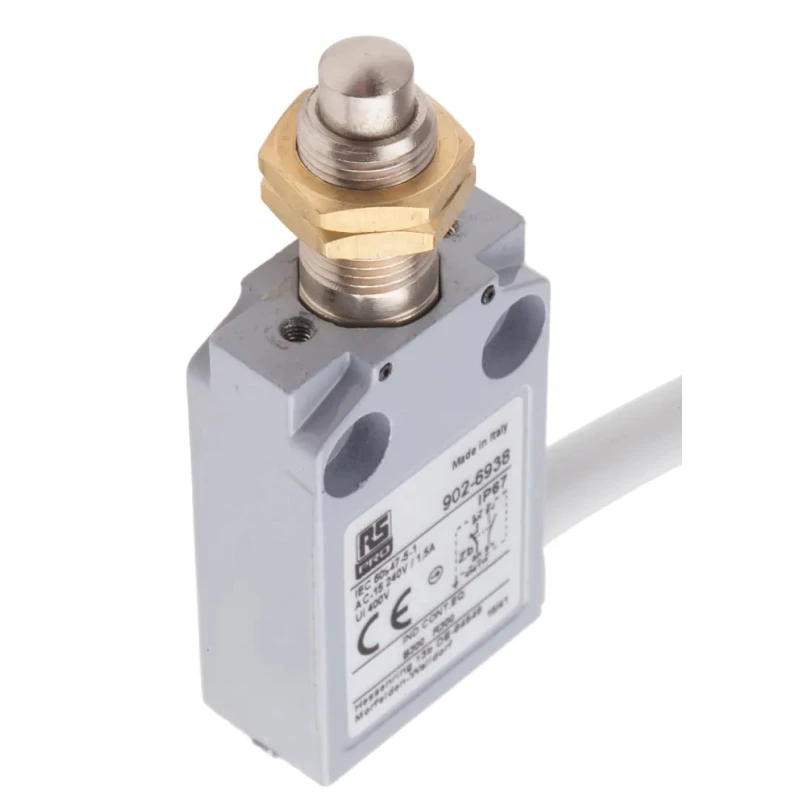

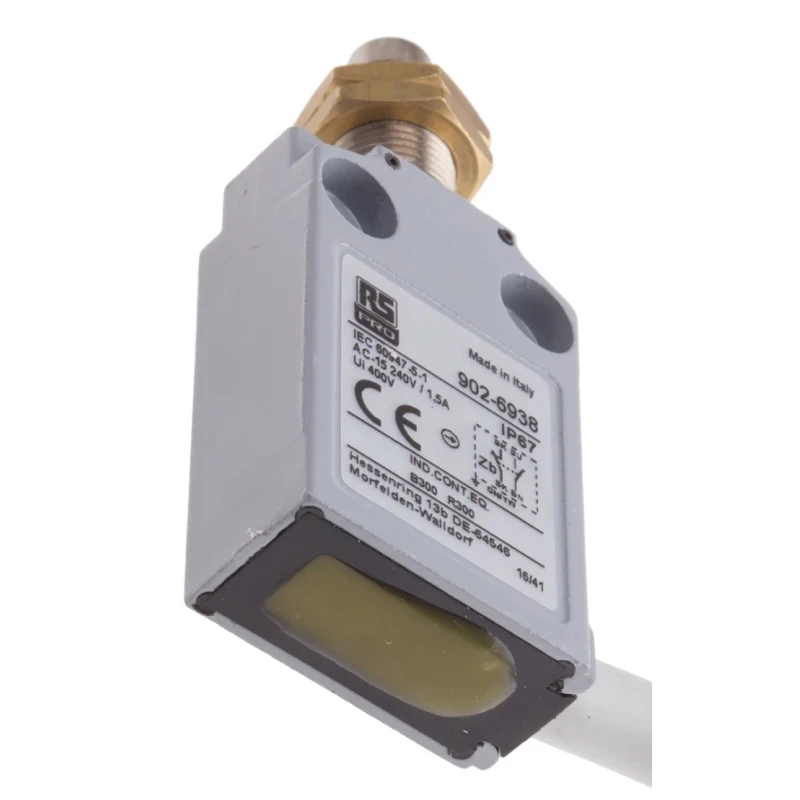

RS PRO Plunger Limit Switch 1 NO/1 NC IP67 Die Cast Zinc Housing 240V AC 5A IP67

RS PRO IP67 Plunger Limit Switch model IP67 is an electromechanical limit switch featuring a durable die cast zinc housing and a plunger actuator. It is engineered for industrial use with protection rated at IP67, providing excellent resistance against dust and water ingress. The switch supports 1 normally open and 1 normally closed contact configuration with snap action for precise and reliable switching performance.

Operating at 240V AC and 5A switching current, this limit switch is capable of handling strong electrical loads and is suitable for applications requiring consistency and durability. It is designed to operate over a wide temperature range from -25°C to 70°C making it adaptable to various industrial environments.

The mechanical life rating of 10 million operations ensures a long service life under continuous use. Compact dimensions of 31.5mm length, 74mm width, and 16mm depth facilitate installation in constrained spaces. The plunger actuator type is ideal for position detection, presence indication, and travel limit control in automation systems.

Its vertical mounting orientation and cable terminal type simplify integration into existing systems. The die cast zinc housing enhances robustness and corrosion resistance, making it fit for demanding industrial, manufacturing, and automation applications. This product is manufactured in Italy, ensuring quality adherence to international standards such as CSA, UL, IEC, and RoHS compliance.

Equipped with 1 NO/1 NC contact configuration. IP67 rated for protected operation in harsh environments. Robust die cast zinc housing for enhanced durability. Snap action contact type for accurate switching. Supports 240V AC voltage and 5A switching current.

Wide operating temperature range: -25°C to 70°C. Mechanical life of 10 million operations for long-term reliability. Compact design with dimensions 31.5mm x 74mm x 16mm. Vertical mounting orientation with cable terminal connection.

Manufactured in Italy with compliance to multiple international standards.

Ideal for electrical and automation industries, this RS PRO limit switch is suitable for detecting presence or absence, positioning and travel limit applications, as well as object counting in construction, manufacturing, and water treatment systems. Explore more quality Limit Switches in the Electronics & Electricals category at EnvMart.
