Texas Instruments 2 2-Input AND Logic Gate, CMOS, 8-Pin SSOP Package, Operating Voltage 1.65 to 5.5 V SN74LVC2G08DCTR

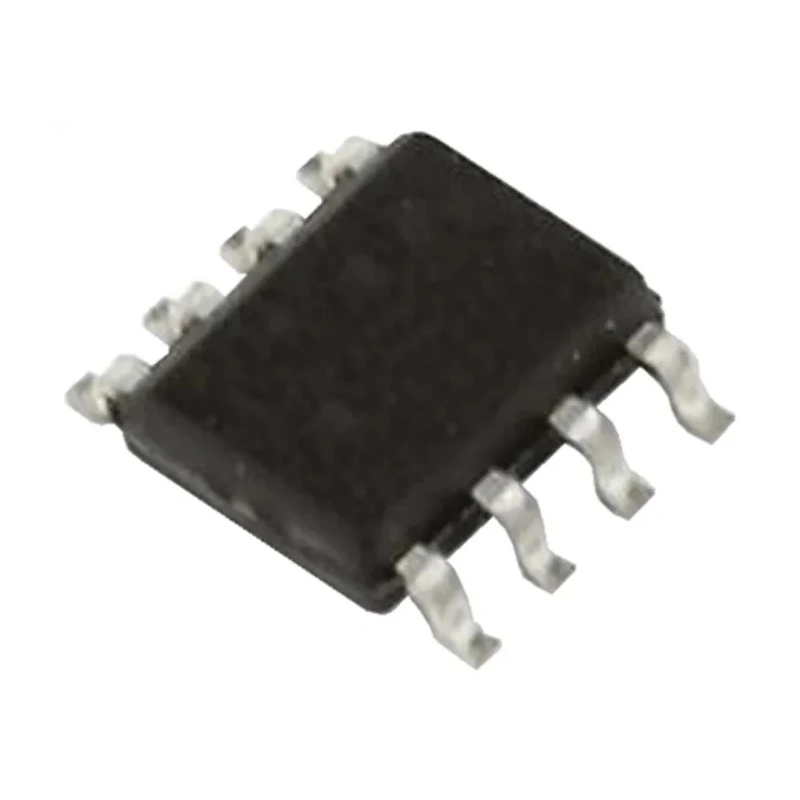

Texas Instruments SN74LVC2G08DCTR is a 2 2-input AND Logic Gate integrated circuit with CMOS technology, optimized for low voltage operations from 1.65 to 5.5 V. Packaged in an 8-pin SSOP form factor, it offers a compact, surface-mount design suitable for dense PCB layouts.

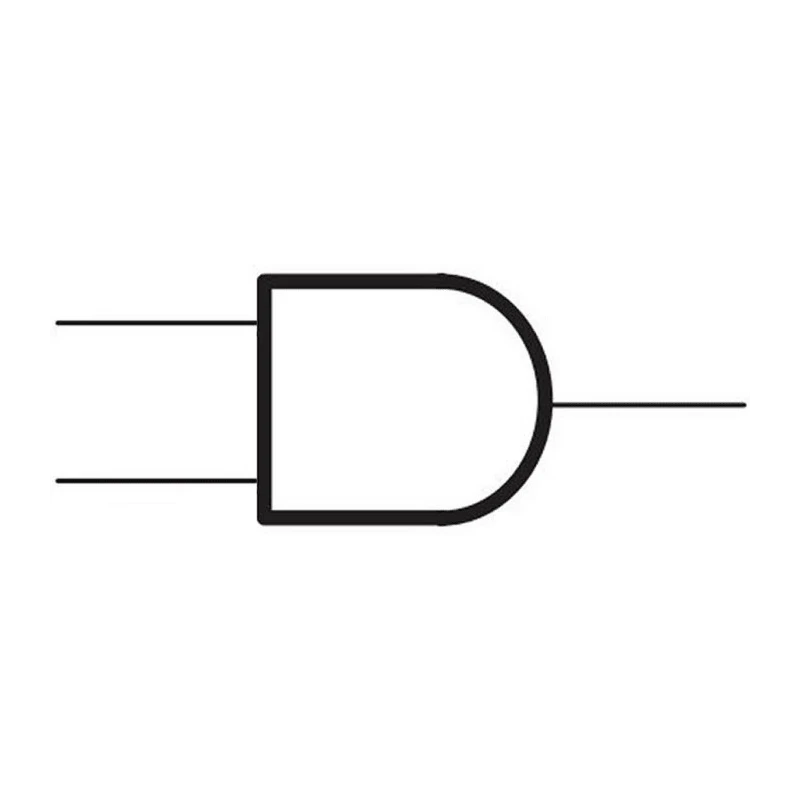

This device includes two independent AND gates that perform the boolean AND function on two inputs each, making it essential for implementing digital logic and combinational circuits. The logic family is LVC with compatibility for LVTTL/TTL inputs and LVCMOS outputs, assuring seamless interfacing with various digital systems.

The maximum propagation delay of 4.8 ns at specified load conditions ensures high-speed processing for timing-critical applications. The device operates reliably over a wide temperature range of -40°C to 85°C, suitable for industrial and commercial environments.

Output peak currents are ±32 mA, providing sufficient drive capability to interface with other logic components or downstream stages. It is ideal for use in embedded systems, industrial automation, consumer electronics, and communication equipment.

Two independent 2-input AND gates in a single IC. Low power consumption CMOS technology. Compatibility with TTL and CMOS logic levels. Fast switching with propagation delay of 4.8 ns. Wide operating temperature range for varying environments.

Compact 8-pin SSOP package designed for surface mount use. Operating voltage range of 1.65 to 5.5 V. High output drive current capability of ±32 mA. Applications include digital logic design, signal processing, embedded systems, and industrial control.
