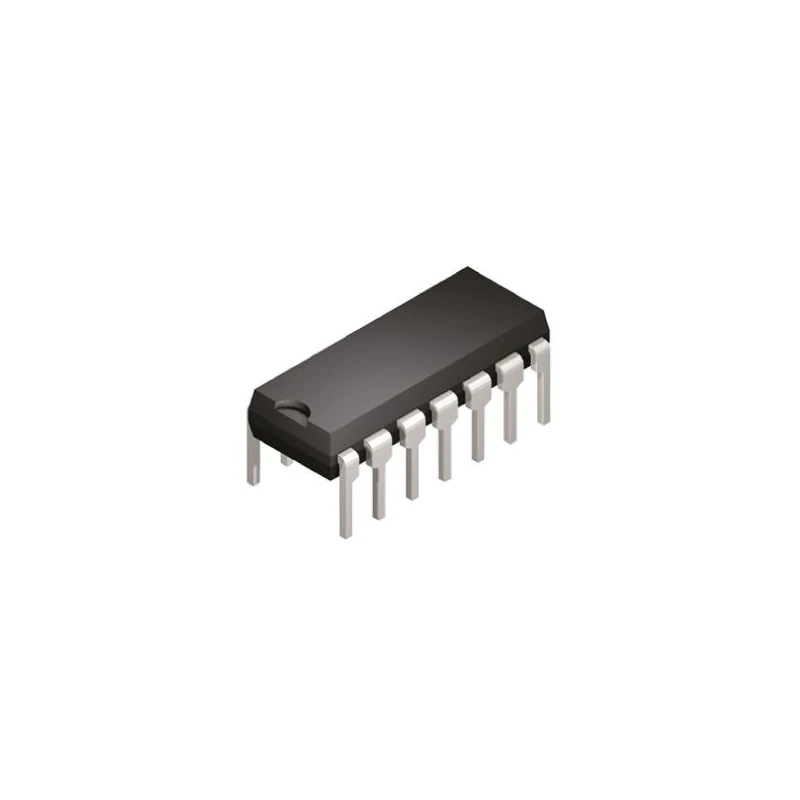

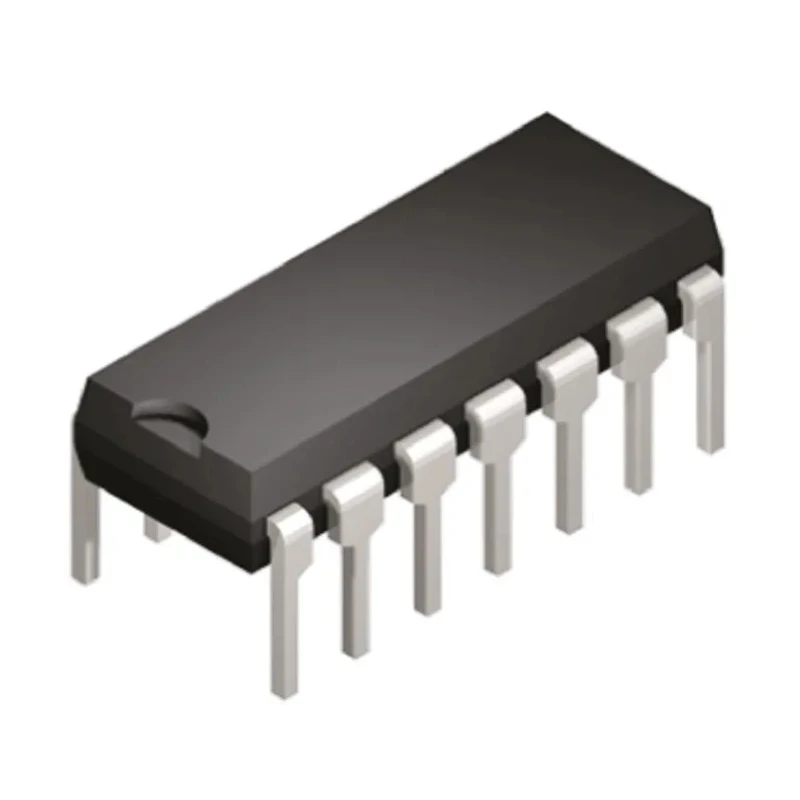

Texas Instruments Operational Amplifier 3 MHz 14-Pin 16V PDIP TLV2374IN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TLV2374IN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLV2374 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 2.4V/μs |
Key Features
- Four independent channels for multi-signal amplification.
- Gain Bandwidth Product of 3 MHz ensuring high-frequency operation.
- Operates at supply voltages between 3V and 16V.
- Low input bias current of 1 nA suitable for precision tasks.
- Slew rate of 2.4 V/μs for fast signal response.
- Wide operating temperature range from -40°C to 125°C.
- Complies with RoHS standards for environmental safety.
- Built-in automotive standard AEC-Q100 qualification.
Product Description
Texas Instruments TLV2374IN is a low voltage CMOS Operational Amplifier featuring four independent channels in a 14-pin PDIP package. It supports applications requiring a bandwidth of 3 MHz and operates reliably within a supply voltage range of 3V to 16V. This amplifier offers a slew rate of 2.4 V/μs and low input bias current of 1 nA, making it ideal for precise signal processing in industrial, electronic, and automotive environments.
The device is designed for through-hole mounting, facilitating easy integration into PCB systems. It operates securely across a broad temperature range from -40°C to 125°C, meeting the automotive quality standards of AEC-Q100. This ensures durability and reliability for demanding industrial and electronic applications.
The TLV2374IN amplifier offers a maximum output current of 100 mA, supporting diverse load requirements. Its compact footprint with dimensions of 19.3 mm in length, 6.35 mm in width, and a height of 4.57 mm ensures efficient space utilization on circuit boards.
With its RoHS compliance, this amplifier adheres to strict environmental and safety regulations, making it a sustainable choice for manufacturing. Its high gain bandwidth product and low offset voltages are well suited for high-performance analog signal conditioning systems in laboratories, manufacturing automation, HVAC control units, and automotive electronic controls.
Four independent channels for multi-signal amplification. Gain Bandwidth Product of 3 MHz ensuring high-frequency operation. Operates at supply voltages between 3V and 16V. Low input bias current of 1 nA suitable for precision tasks.
Slew rate of 2.4 V/μs for fast signal response. Wide operating temperature range from -40°C to 125°C. Complies with RoHS standards for environmental safety. Built-in automotive standard AEC-Q100 qualification. Output current capability up to 100 mA.
Through-hole mount with a PDIP package type for easy PCB integration. Explore more electronic components and semiconductors at EnvMart for your industrial and laboratory measurement projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, ensuring high-frequency operation for various applications.
It operates at supply voltages between 3V and 16V, making it versatile for different circuit requirements.
This operational amplifier can provide a maximum output current of 100 mA, suitable for diverse load requirements.
The slew rate of the TLV2374IN is 2.4 V/μs, allowing for fast signal response in applications.
It has a wide operating temperature range from -40°C to 125°C, suitable for demanding environments.
This model features four independent channels for multi-signal amplification.
The dimensions of this operational amplifier are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
It has a low input bias current of 1 nA, making it suitable for precision tasks.
The TLV2374IN is designed for through-hole mounting, facilitating easy integration into PCB systems.
It complies with the automotive standard AEC-Q100, ensuring reliability for automotive applications.
Yes, this operational amplifier complies with RoHS standards for environmental safety.
The input offset voltage (Vos) for the TLV2374IN is 6 mV, which is important for precision applications.
