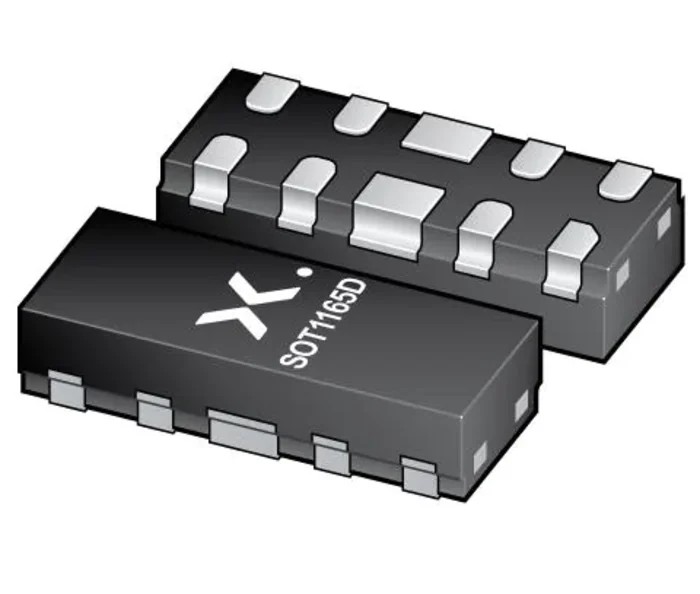

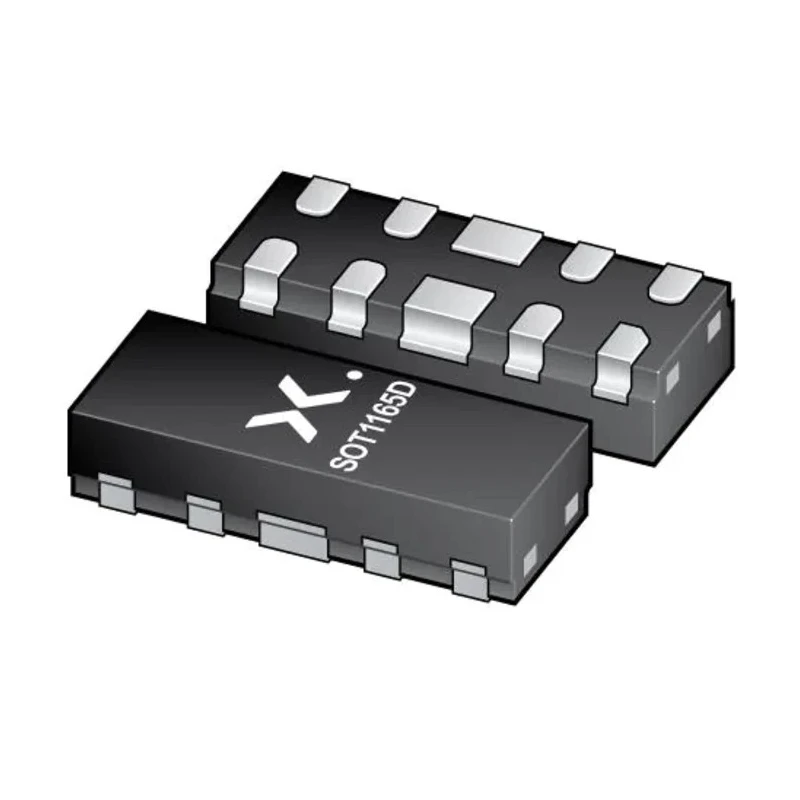

Nexperia Bi-Directional ESD Protection Device 10-Pin DFN2510D Package PESD4USB3B-TTS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TTS |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Protects USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI, DisplayPort, and eSATA interfaces against electrostatic discharge.
- Line capacitance of only 0.5 pF per channel ensures minimal signal distortion.
- Features matched 0.5 mm trace spacing and side-wettable flanks for automated optical inspection.
- Offers outstanding system protection with deep snap-back and dynamic resistance of 0.4 Ω.
- Supports automotive A/V displays, infotainment systems, and industrial SerDes interfaces such as GMSL and LVDS.
- Complies with automotive standard AEC-Q101 and IEC/ISO ESD protection standards.
Product Description
The Nexperia PESD4USB3B-TTS is a high-performance bi-directional ESD protection device packaged in a compact 10-pin DFN2510D form factor. It is specifically designed to safeguard sensitive high-speed digital interfaces from damaging electrostatic discharges.
This device ensures system-level protection for interfaces including USB 2.0, SuperSpeed USB 3.2 operating up to 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and Low Voltage Differential Signalling (LVDS) lines. With an exceptionally low line capacitance of 0.5 pF per channel, it preserves integrity and minimizes signal interference in high-speed data transfer applications.
Technical advantages include a matched 0.5 mm trace spacing compatible with automated PCB inspection through side-wettable flanks, exceptional snap-back characteristics, and a dynamic resistance of 0.4 Ω for effective transient absorption. This makes it ideal for automotive infotainment systems, high-definition video transmission, and Serializer/Deserializer (SerDes) applications such as Gigabit Multimedia Serial Link (GMSL).
The device conforms to rigorous automotive grade standards including AEC-Q101 and complies with international ESD robustness standards IEC61000-4-2 and ISO10605, ensuring reliability in harsh industrial and automotive environments. It operates within a temperature range of -55°C to 150°C and features a maximum reverse leakage current of 100 nA for low standby power consumption.
Its compact dimensions (length: 2.5 mm, width: 1 mm, height: 0.75 mm) facilitate PCB space savings, making it suitable for dense circuit designs. Protects USB 2.0, SuperSpeed USB 3.2, HDMI, DisplayPort, and eSATA interfaces against ESD.
Low line capacitance of 0.5 pF per channel minimizes signal distortion. Matched 0.5 mm trace spacing with side-wettable flanks enables AOI. Deep snap-back and dynamic resistance of 0.4 Ω enhance system protection. Supports automotive and infotainment applications including GMSL and LVDS SerDes.
Conforms to automotive standard AEC-Q101, ISO10605 and IEC61000-4-2. Wide operating temperature range from -55°C to 150°C. Compact 10-Pin DFN2510D package for space-efficient design.
Engineered for demanding industrial, automotive, and high-speed communication applications, the Nexperia PESD4USB3B-TTS offers reliable ESD protection performance. Explore EnvMart’s extensive selection of semiconductor protection devices for your design requirements.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
It supports USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and Low Voltage Differential Signalling (LVDS).
The dynamic resistance of the PESD4USB3B-TTS is 0.4 Ω, which enhances its effectiveness in transient absorption.
This model has a length of 2.5 mm, a width of 1 mm, and a height of 0.75 mm.
The line capacitance is only 0.5 pF per channel, which helps minimize signal distortion.
It complies with the automotive standard AEC-Q101, ensuring its suitability for automotive applications.
The maximum reverse leakage current is 100 nA, which contributes to low standby power consumption.
The device is packaged in a compact 10-pin DFN2510D form factor.
The minimum breakdown voltage (Vbr) for the PESD4USB3B-TTS is 6V.
It is designed for automotive infotainment systems, high-definition video transmission, and industrial SerDes applications such as GMSL and LVDS.
The clamping voltage (VC) for this model is 5.5V.
The operating temperature range for the PESD4USB3B-TTS is from -55°C to 150°C.
