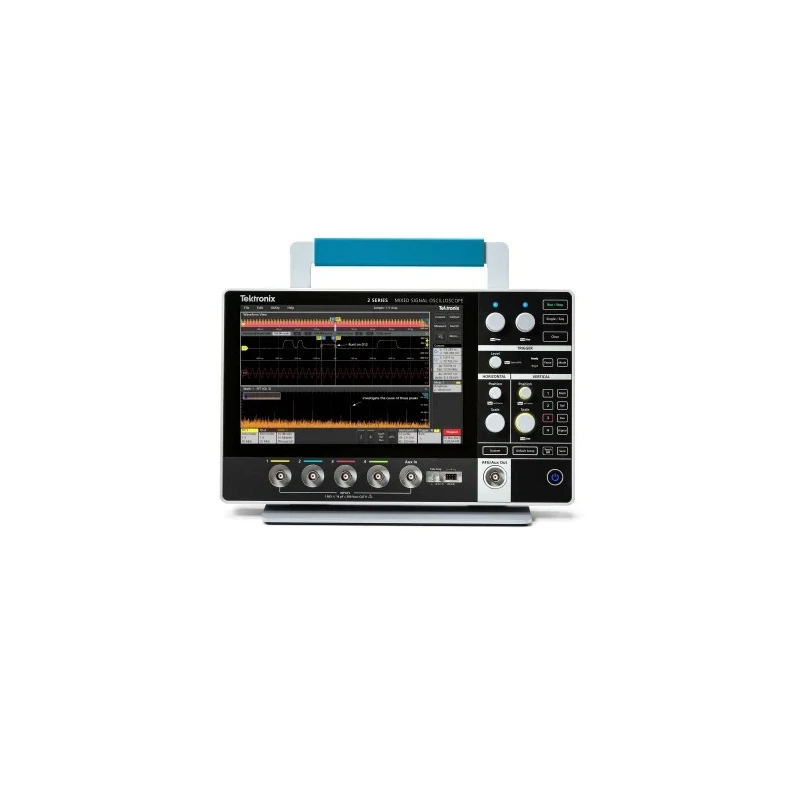

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 100 MHz Bandwidth 20 Channels MSO24 2-BW-100

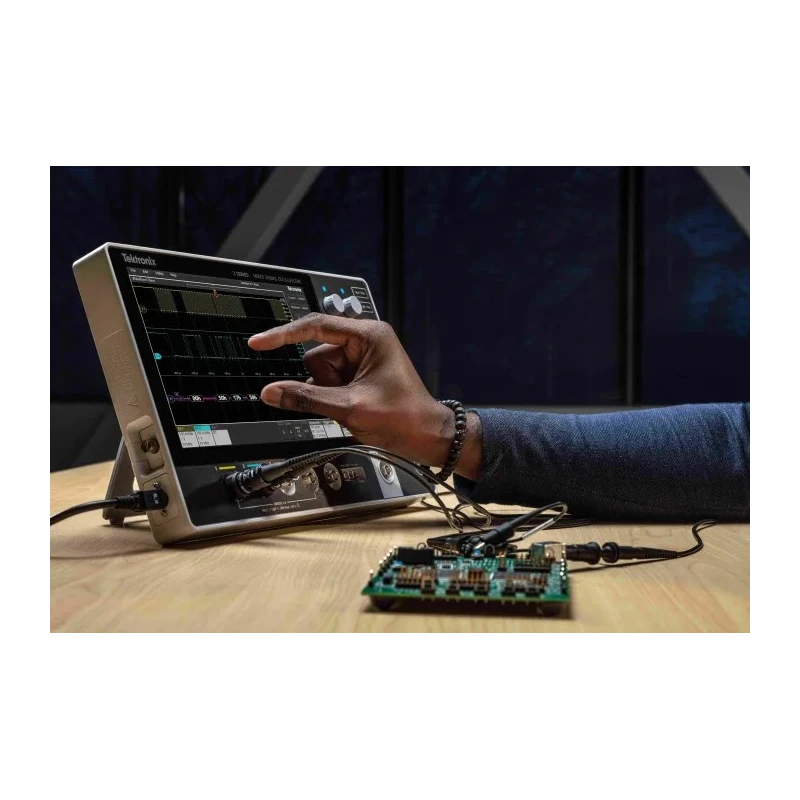

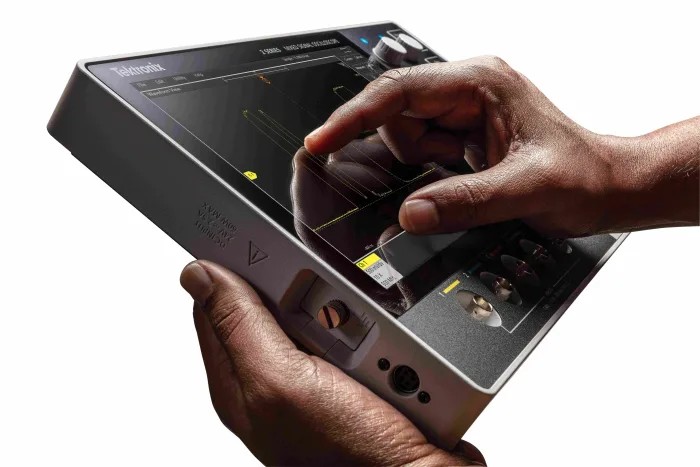

Tektronix MSO24 2-BW-100 2 Series MSO Mixed Signal Oscilloscope is an ultra-compact instrument with 100 MHz bandwidth and 20 channels, designed for advanced electronic debugging and testing applications. Featuring a 10.1 inch capacitive touch display, it offers a highly intuitive user interface tailored for efficient operation.

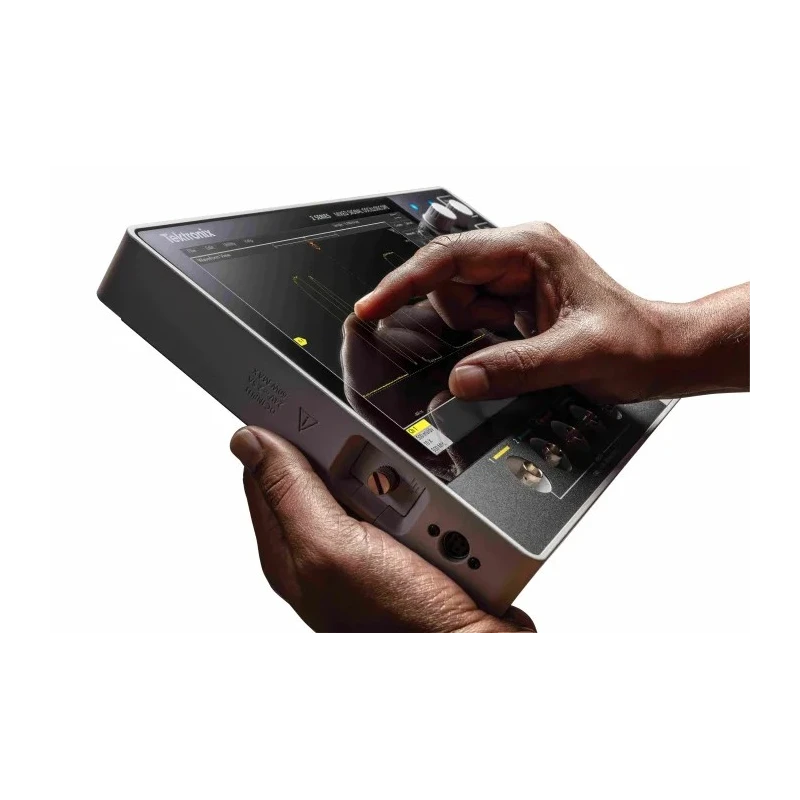

The oscilloscope supports both analog and digital signals with a mixed signal form factor optimized for bench space savings and portability. The instrument is lightweight at 1.8 kg without the battery pack and supports an optional battery pack with two hot-swappable batteries for extended unplugged testing sessions.

With a memory depth of 128kpts and a minimum time base of 2 ns/div, it supports detailed waveform acquisition. The device integrates a built-in VNC server allowing remote viewing and control from PCs, tablets, or smartphones, enhancing flexibility in laboratory and industrial environments.

Additional features include a VESA mount compatibility that facilitates various mounting accessories, and a rise time of 800 ps ensuring signal fidelity. The oscilloscope is backed by ISO 9001 quality standards and manufactured in China.

Package contents include TPP0200 200 MHz, 10x probes (one per channel), an instrument stand, external power supply, embedded help, installation manual in multiple languages, and a calibration certificate traceable to National Metrology Institutes with ISO9001/ISO17025 registration.

100 MHz bandwidth suitable for a wide range of electronic measurements. 20 channels provide simultaneous analog and digital signal capture. Compact design with dimensions 344mm width, 210mm height, and 40.4mm depth. Intuitive colour 10.1 inch capacitive touchscreen enhances usability.

Optional battery pack for portable field measurements. Supports advanced triggering, protocol decode, and digital pattern generation. Lightweight construction at 1.8 kg facilitates ease of transport. Built-in VNC server enables remote operation and monitoring.

VESA mount compatibility ensures bench space optimization. Comes with essential probes and calibration documentation.

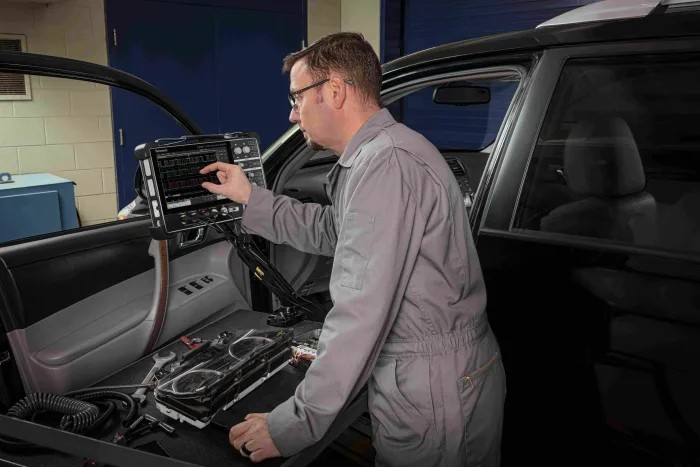

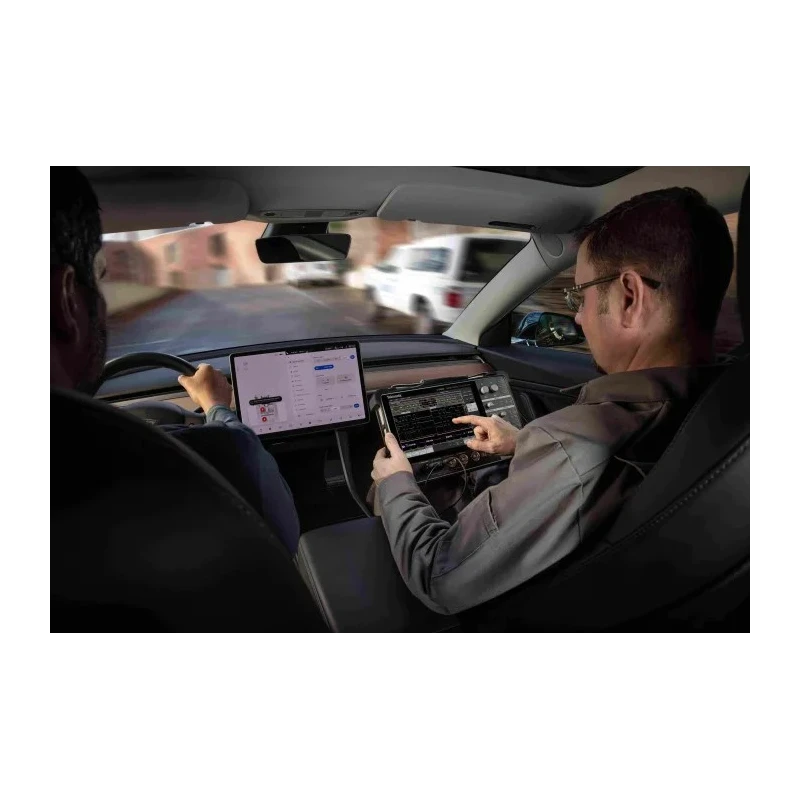

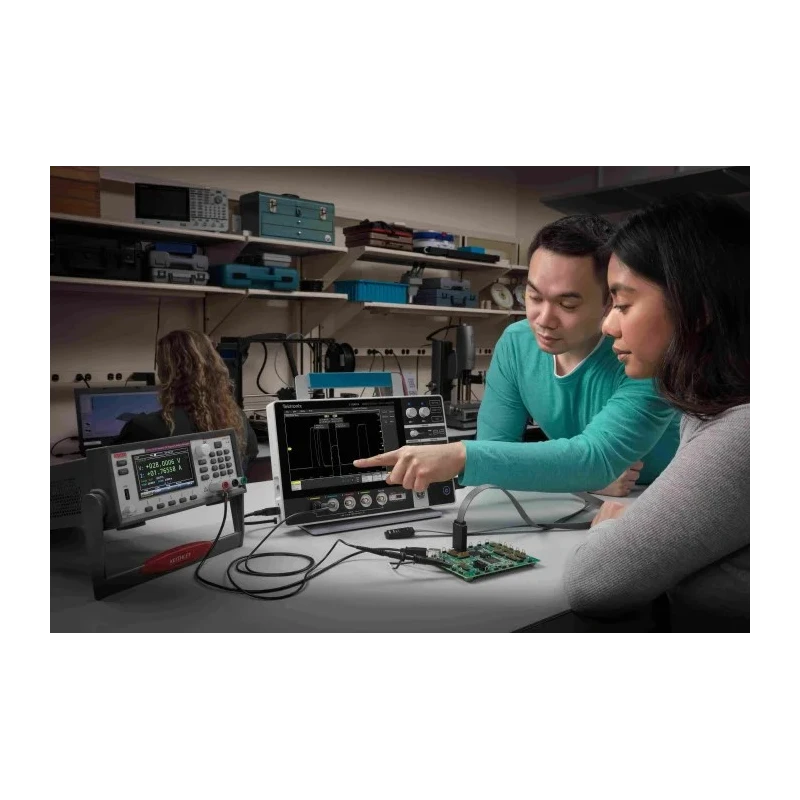

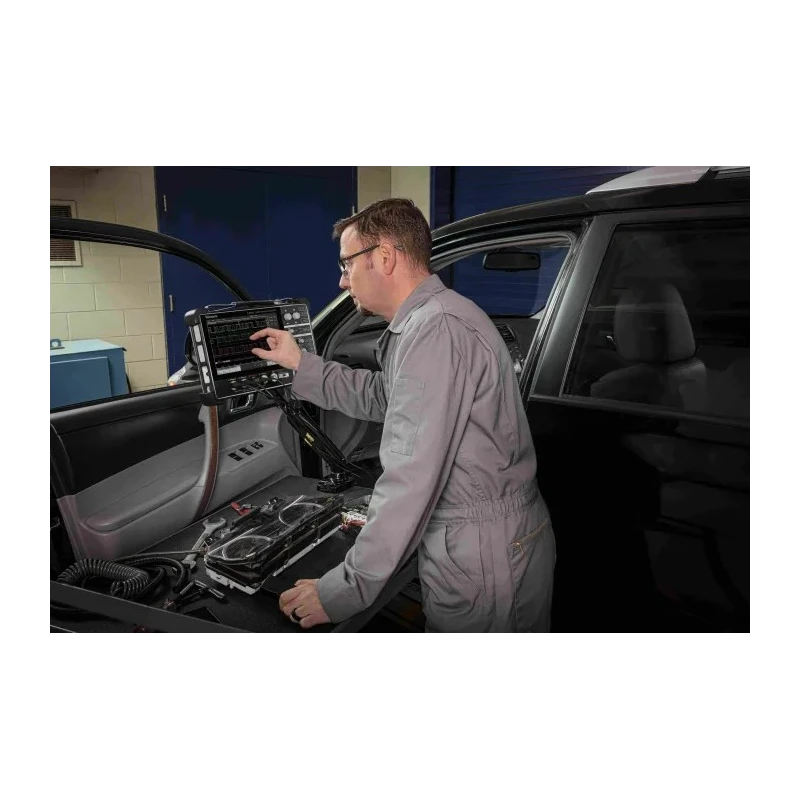

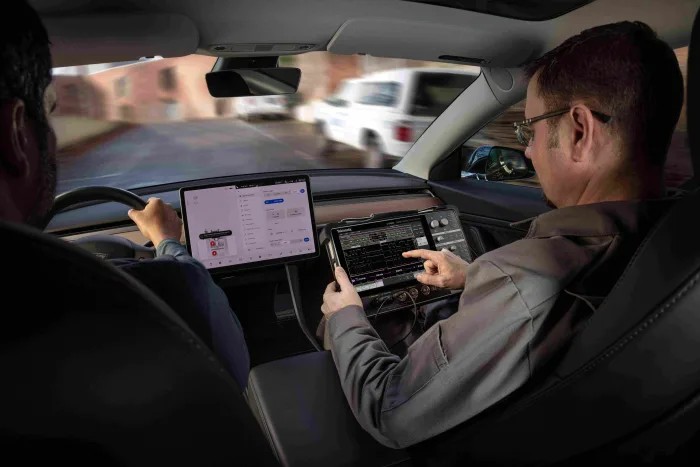

This Tektronix oscilloscope is ideal for industrial, laboratory, electronics manufacturing, and field maintenance use cases. Its advanced capabilities and compact form factor provide versatile testing solutions for engineers and technicians.
