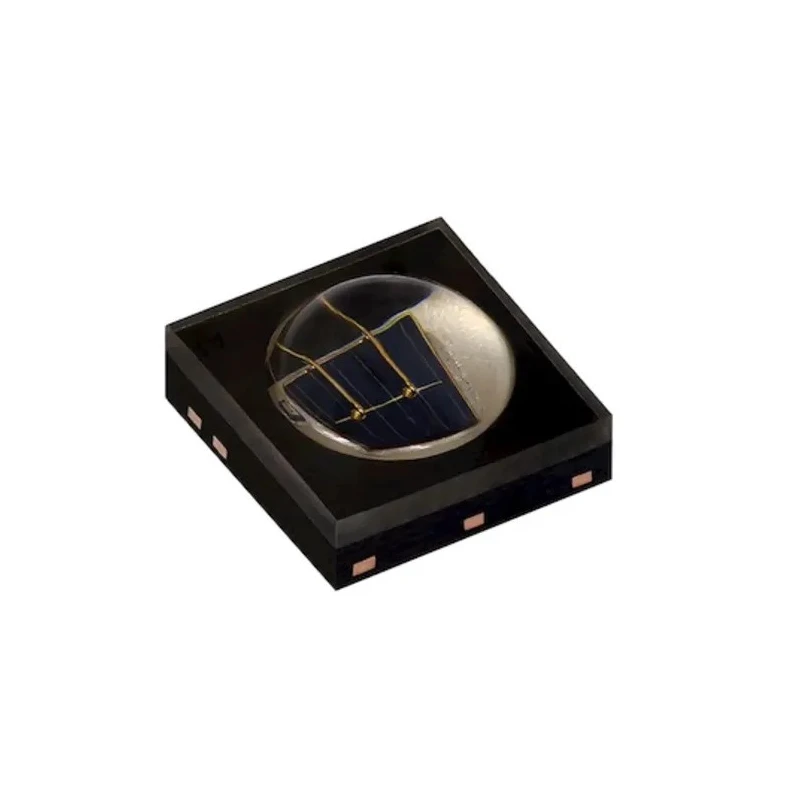

Vishay High Power Infrared Emitting Diode 950 nm Radiant Flux 2100mW Surface Mount VSMA1094600
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1094600 |
| Packaging | SMD |
| Mount Type | Surface |
| Series | VSMA1094600 |
| Package Type | Surface Mount |
| Peak Wavelength | 950nm |
| Radiant Flux | 2100mW |
| Radiant Intensity | 670mW/sr |
Key Features
- Radiant flux of 2100 mW enables strong infrared output for sensing applications.
- Surface mount device design with compact 3.4 x 3.4 x 1.8 mm package dimensions.
- Double stack emitter chip supports pulsed currents up to 5.0 A and continuous 1.5 A operation.
- Low thermal resistance of 6 K/W ensures durability under high power conditions.
- Wide half intensity angle of ±60° provides broad infrared coverage.
- ESD protection up to 5 kV enhances device reliability.
- Lead-free reflow soldering compatible for RoHS compliance.
- MSL 3 floor life of 168 hours per J-STD-020 standard.
Product Description
Vishay VSMA1094600 is a high power infrared emitting diode designed for advanced optoelectronic applications requiring strong infrared emission at a peak wavelength of 950 nm. Utilizing a double stack emitter chip, the diode offers high radiant flux of 2100 mW and radiant intensity of 670 mW/sr within a compact surface mount device package measuring 3.4 x 3.4 x 1.8 mm (L x W x H). Its double chip construction enables continuous DC operation at 1.5 A and pulsed operation up to 5.0 A, ideal for applications demanding pulsed infrared sources.
The diode features a wide half intensity angle of ±60°, allowing broad illumination coverage. Thermal management is enhanced by a low thermal resistance rating of approximately 6 K/W, increasing reliability during extended use. Electrostatic discharge protection up to 5 kV per ANSI / ESDA / JEDEC JS-001 standards ensures the device's robustness in industrial and laboratory environments.
Designed for surface mount technology (SMT), the device supports lead-free reflow soldering, complying with RoHS directives for environmental safety. The Diode's Moisture Sensitivity Level (MSL) classification is 3, allowing a floor life of 168 hours in controlled environments according to J-STD-020. Its small size and high power output make it suitable for use in electronic assemblies for remote sensing, industrial automation, night vision systems, and other applications requiring efficient infrared illumination.
Radiant flux of 2100 mW ensures high output infrared emission. Compact surface mount package supports modern PCB manufacturing. Double stack chip design enables high current pulse operation. Low thermal resistance improves performance under power load.
Wide emission angle of ±60° for extensive coverage. High ESD protection rating increases device reliability. Lead (Pb)-free reflow solder compatible for environmental compliance. MSL 3 rating facilitates extended handling and assembly periods.
This Vishay VSMA1094600 infrared LED is ideal for electronics manufacturers, research laboratories, and industrial automation sectors. Its high power and reliability make it suitable for integration in infrared sensing arrays, proximity detection, and communication systems.
Explore a wide array of optoelectronic components and LEDs at EnvMart to meet your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The radiant flux of the Vishay VSMA1094600 is 2100 mW, enabling strong infrared output for various applications.
The peak wavelength of this infrared emitting diode is 950 nm, making it suitable for applications requiring infrared light.
This model has compact dimensions of 3.4 x 3.4 x 1.8 mm (L x W x H), suitable for surface mount applications.
The diode supports pulsed currents up to 5.0 A, making it ideal for applications that require high power bursts.
It can operate continuously at a current of 1.5 A, suitable for consistent infrared emission.
The radiant intensity of the VSMA1094600 is 670 mW/sr, providing effective infrared illumination.
The thermal resistance is approximately 6 K/W, which helps maintain performance under high power conditions.
This diode is packaged as a surface mount device (SMD), facilitating modern PCB manufacturing.
The diode features ESD protection up to 5 kV, enhancing its reliability in various environments.
The moisture sensitivity level is classified as MSL 3, allowing a floor life of 168 hours in controlled environments per J-STD-020.
The half intensity angle is ±60°, providing broad infrared coverage for effective illumination.
Yes, it is lead-free and compatible with reflow soldering, complying with RoHS directives for environmental safety.
