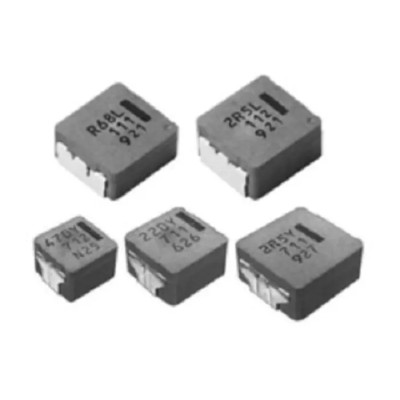

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 3.3 μH ±20% 12.5 A IDC ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 12.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 10.45mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for high heat resistance.
- Features a shielded design reducing electromagnetic interference.
- Supports operation temperatures from -40°C to 150°C.
- Offers high vibration resistance due to integral construction.
- Has a maximum DC resistance of 10.45 mΩ ensuring efficient performance.
- Packaged in tape and reel format for automated assembly.
- Complies with Automotive Standard AEC-Q200 and RoHS regulations.
- Maximum self resonant frequency of 100 kHz suitable for noise filtering applications.
Product Description
Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor featuring a metal composite core provides reliable performance for electronic applications requiring high current handling and temperature stability. The 3.3 μH inductance with ±20% tolerance and 12.5 A maximum DC current rating allows it to efficiently filter noise in various drive circuits. This inductor operates effectively from -40°C up to 150°C, supporting robust thermal performance under self heating and high bias current conditions.
The shielded construction minimizes electromagnetic interference, making it ideal for automotive and industrial electronics applications requiring compliance with demanding standards such as AEC-Q200. The wirewound design and metal composite core deliver superior inductance stability and low audible noise in operation. Additionally, its integral construction provides high vibration resistance to withstand harsh environments.
Packaged in tape and reel style, this surface mount inductor suits automated PCB assembly processes. Its compact dimensions of 8.5 mm length, 8 mm depth, and 5.4 mm height facilitate high density mounting in electronics manufacturing.
Metal composite core for enhanced heat resistance. Shielded wirewound construction for noise reduction and inductance stability. Wide temperature range from -40°C to 150°C for high reliability. Automotive grade compliance with AEC-Q200 standard.
Low DC resistance of 10.45 mΩ for efficient current flow. Compact surface mount package suitable for automated production. Tape and reel packaging for streamlined assembly processes. Maximum self resonant frequency of 100 kHz for effective filtering.
High vibration resistance enhancing durability in demanding environments.
This Panasonic ETQP5M series inductor is suitable for industrial, automotive, telecommunications, and power supply applications that require stable performance under high temperature and current conditions. Its shielding and construction technology make it reliable for noise-sensitive circuits and high frequency applications.
Explore our extensive range of Surface Mount Inductors to find the ideal component for your electronic design on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 12.5 A.
The dimensions are 8.5 mm in length, 8 mm in depth, and 5.4 mm in height.
It operates effectively within a temperature range of -40°C to 150°C.
The maximum self-resonant frequency is 100 kHz, suitable for noise filtering applications.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
The core material is a metal composite, which enhances heat resistance.
It complies with the Automotive Standard AEC-Q200.
The maximum DC resistance is 10.45 mΩ, ensuring efficient performance.
It features a wirewound construction, which provides stability and low audible noise during operation.
This model is suitable for industrial, automotive, telecommunications, and power supply applications that require stable performance under high temperature and current conditions.
The termination style of this inductor is surface mount.
