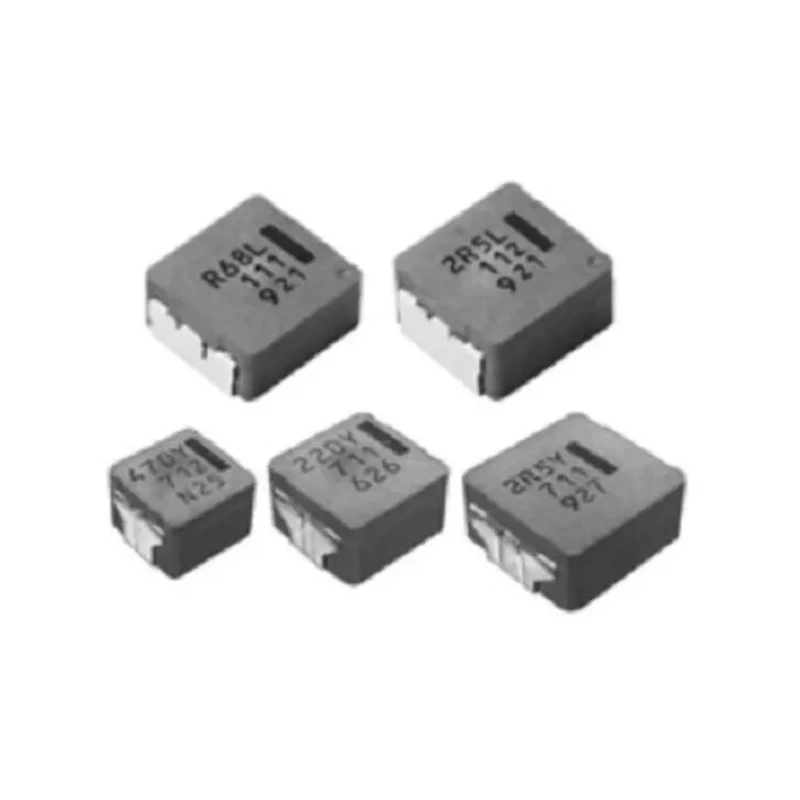

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 3.3 μH ±20% 15.7 A Idc ETQP5M

Panasonic ETQP5M is a shielded wirewound Surface Mount Inductor designed with a metal composite core to deliver high performance in compact applications. This inductor offers an inductance of 3.3 μH ±20% and supports a maximum DC current of 15.7 A, making it suitable for circuits requiring stable inductance and high current capacity.

The product exhibits high heat resistance and reliability, operating at temperatures up to 150°C including self-generated heat. Its construction features a newly developed integral design providing high vibration resistance and stable inductance stability through the use of ferrous alloy magnetic material.

The shielded construction minimizes electromagnetic interference, making it ideal for noise filtering applications in sensitive drive circuitry and other demanding environments. Its RoHS compliance and AEC-Q200 automotive standard certification ensure its suitability for automotive and industrial use.

Packaged in tape and reel, the ETQP5M series supports efficient automated assembly for mass production. With physical dimensions of 10.7 mm length, 5.4 mm height, and 10 mm depth, along with a 2-pin surface mount termination style, it fits a broad range of PCB layouts.

Features include a maximum DC resistance of 7.9 milliohms for efficient power handling and a maximum self-resonant frequency of 100 kHz, supporting stable operation within its frequency range.

Typical applications include industrial electronics, automotive power systems, telecommunications, and other high-reliability environments requiring robust inductors with low noise and high current capabilities.

Explore the Electronics & Electricals category at EnvMart for more Panasonic inductors and related components to suit various industrial and commercial applications. The inductor offers high heat resistance and reliability with a metal composite core construction.

It supports high bias current operation up to 150°C including self heat dissipation. Designed for low audible noise and excellent inductance stability using ferrous alloy magnetic material. Shielded construction ensures low electromagnetic interference for sensitive circuits.

Complies with RoHS standards and automotive standard AEC-Q200 certification. Packaged as tape and reel for efficient surface mount assembly processes. Dimensions include length 10.7 mm, height 5.4 mm, and depth 10 mm with 2 pins.

Maximum DC resistance of 7.9 mΩ ensures low power loss in operation.
