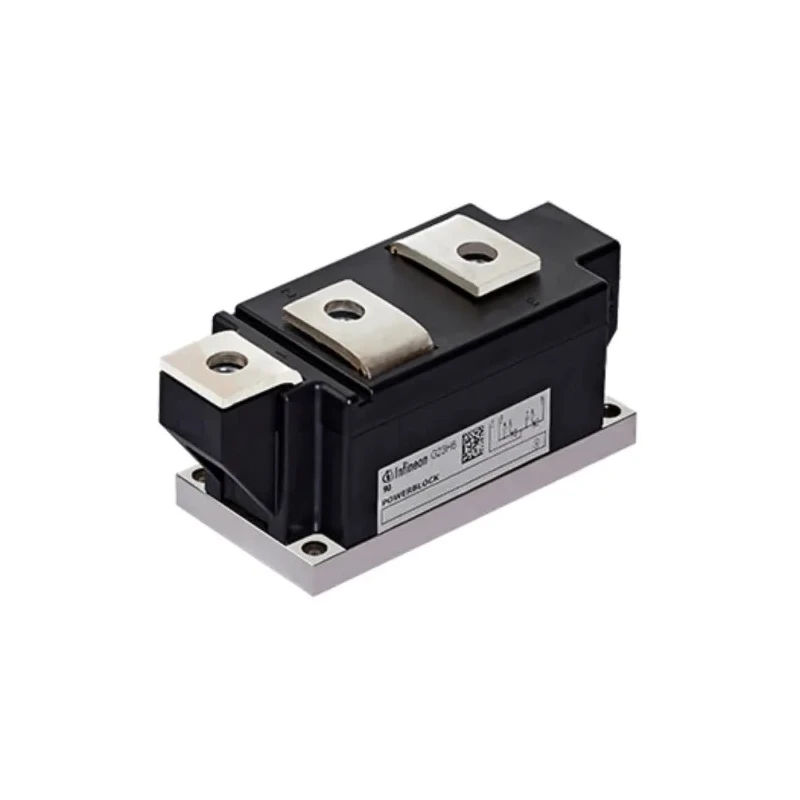

Infineon Thyristor Module 1800 V 23.5 kA Surge Current 775 A Rated Current 250 mA Gate Trigger Current TD780N18KOFHPSA1

Infineon TD780N18KOFHPSA1 is a high-performance Thyristor Module designed for industrial power control applications. Featuring a repetitive peak reverse voltage of 1800 V and an average on-state current of 775 A, this module is engineered to handle demanding electrical loads efficiently.

It supports a surge current rating of 23.5 kA, enabling it to withstand transient current spikes, making it ideal for environments with fluctuating power requirements. The module's maximum gate trigger current of 250 mA combined with a trigger voltage of 2 V ensures precise and reliable activation in control circuits.

With a maximum holding current of 300 mA and a peak on-state voltage of just 1.35 V, the TD780N18KOFHPSA1 offers low conduction losses and energy-efficient operation. Its maximum operating temperature rating of 135°C allows for usage in high-temperature industrial or automotive power electronics setups.

This chassis mount thyristor module has a 60 mm base plate, providing robust mechanical support and easy integration into existing systems. It is particularly suited for power control tasks such as phase angle control, motor drives, and industrial heating systems.

The product does not have specific automotive standard approvals but is built with quality standards that ensure durability and performance in typical semiconductor applications. Supports maximum gate trigger current of 250 mA and trigger voltage of 2 V for controlled switching.

Maximum holding current is 300 mA to maintain stable operation. Designed for maximum operating temperature of 135°C allowing for high-temperature industrial environments. Peak on-state voltage is 1.35 V ensuring low conduction losses.

Surge current rating of 23.5 kA for transient current handling capability. Chassis mount type with a 60 mm base plate for secure installation. Repetitive peak off-state current rating of 120 mA enhances reliability in switching applications.

This Infineon Thyristor Module is ideal for industrial, laboratory, construction, HVAC, manufacturing, and power management applications. It provides robust, efficient semiconductor switching with high voltage and current capability to meet demanding operational requirements.
