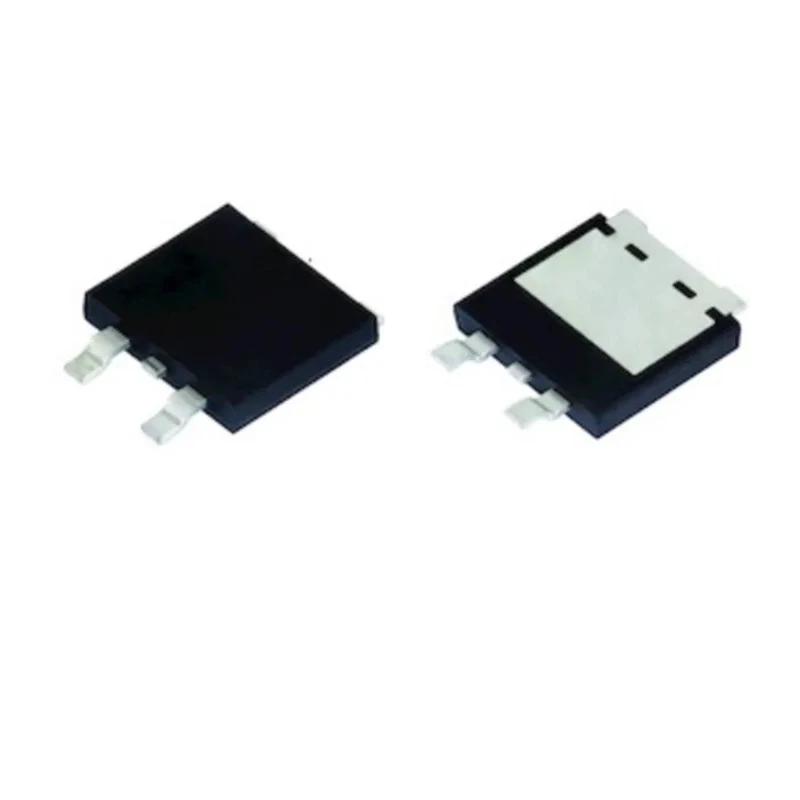

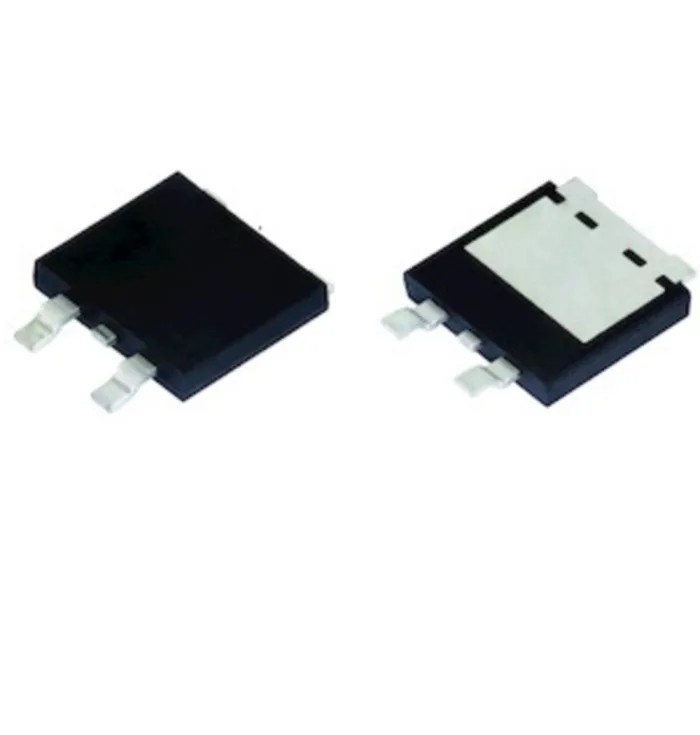

Vishay 400 V 10 A General Purpose Diode 3-Pin D2PAK SE10DLGHM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 12.93mm |
| Model | SE10DLGHM3/I |
| Width | 10.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 280ns |
Key Features
- Mount type is surface mount for PCB assembly.
- Package type TO-263AC offers compact and robust footprint.
- Maximum continuous forward current of 10 amperes.
- Peak reverse repetitive voltage rating of 400 volts.
- Low forward voltage drop of 1 volt ensures high efficiency.
- Operating temperature range from -55°C to 175°C supports industrial demands.
- Peak non-repetitive forward surge current capacity up to 150 amperes.
- Fast peak reverse recovery time of 280 nanoseconds enhances switching performance.
Product Description
Vishay SE10DLGHM3/I is a high-performance general purpose diode with a voltage rating of 400 V and a current rating of 10 A, housed in a compact 3-pin D2PAK surface mount TO-263AC package. It is suitable for use in commercial, industrial, and automotive electronics circuits requiring efficient rectification and fast switching capabilities.
The diode's low forward voltage drop maximizes energy efficiency, while the fast peak reverse recovery time of 280 ns supports high frequency inverter and converter applications. Operating across a wide temperature range from -55°C to 175°C, it reliably withstands harsh industrial environments and automotive thermal conditions.
This device is ideal for automated assembly lines due to its surface mount configuration and is qualified to meet the rigorous automotive standard AEC-Q101, ensuring robust performance in safety-critical applications.
Typical applications include DC/DC converters, freewheeling diodes, polarity protection, and power management in automotive and industrial electronics. The Diode's single configuration simplifies circuit design and enhances reliability.
Mount type is surface mount for easy PCB integration. Package type TO-263AC provides durability and thermal management. Maximum continuous forward current is 10 A for handling significant load currents. Peak reverse repetitive voltage rating is 400 V ensuring protection against voltage spikes.
Forward voltage drop of 1 V results in reduced power losses. Operating temperature from -55°C to 175°C covers demanding environmental conditions. Peak surge current capability of 150 A supports transient events. Fast recovery time of 280 ns enhances high-speed switching applications.
Complies with automotive quality standard AEC-Q101. Physical dimensions: length 12.93 mm, width 10.2 mm, height 1.8 mm.
Country of origin is China. This product is shipped new and ready for deployment in industrial and automotive semiconductor applications. Browse Vishay products and semiconductor components at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 10 A.
The peak reverse repetitive voltage rating is 400 V.
The operating temperature range is from -55°C to 175°C.
The forward voltage drop is 1 V, which helps in maximizing energy efficiency.
The peak non-repetitive forward surge current capacity is up to 150 A.
The diode is housed in a TO-263AC package type, which is suitable for surface mounting.
The fast peak reverse recovery time is 280 nanoseconds, enhancing its switching performance.
The physical dimensions are length 12.93 mm, width 10.2 mm, and height 1.8 mm.
This diode complies with the automotive standard AEC-Q101.
This model is classified as a general purpose diode with a single configuration.
Typical applications include DC/DC converters, freewheeling diodes, polarity protection, and power management in automotive and industrial electronics.
The country of origin for this product is China.
