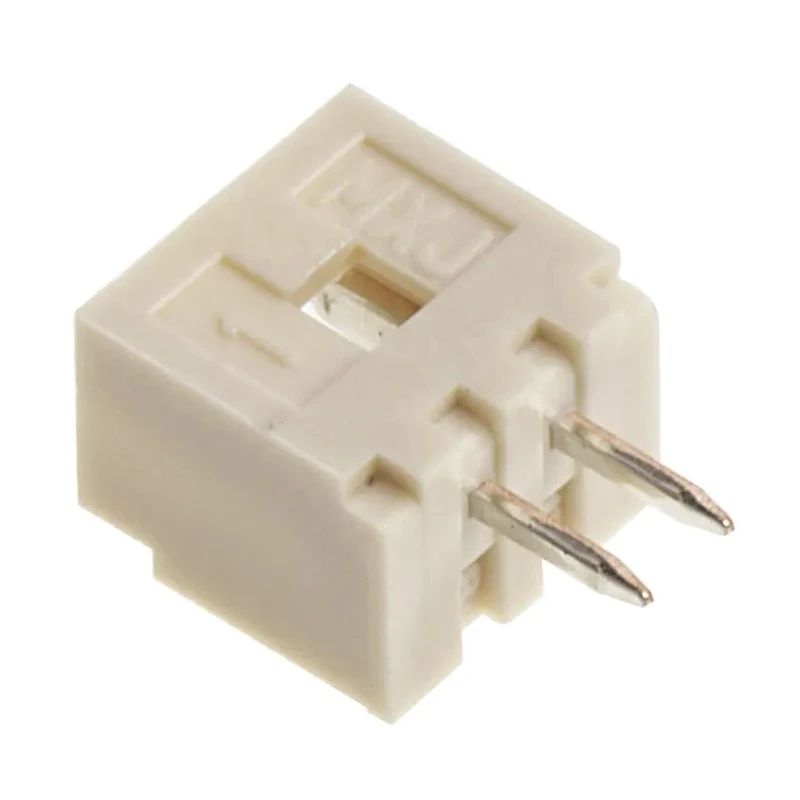

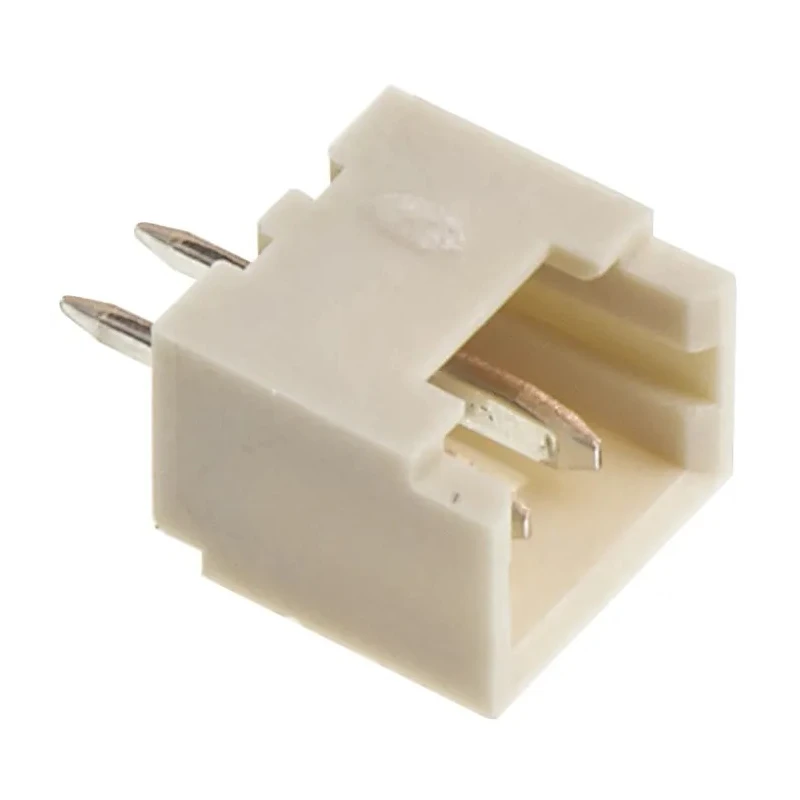

Hirose PicoBlade Series Straight Through Hole PCB Header Connector, 2 Contacts, 1 Row, 1.25 mm Pitch, Shrouded 53047-0210

Molex 53047-0210 PicoBlade Series Straight Through Hole PCB Header Connector is a high-precision wire-to-board interconnect solution featuring 2 contacts in a single row and a compact 1.25 mm pitch. This shrouded header ensures secure and reliable connections via a friction-locking mechanism that prevents accidental unmating caused by vibrations or mishandling.

The housing is made of durable nylon, while the contacts utilize tin-plated phosphor bronze to provide excellent conductivity and corrosion resistance. Designed for through hole mounting, the tail pins measure 2.3 mm in length and use solder termination to achieve robust and air-tight joining on printed circuit boards (PCBs).

With a current rating of 1 amp and a broad operating temperature range from -40°C to 85°C, this connector suits demanding industrial and commercial applications. Its compact pitch and lightweight construction (57.8 mg) make it ideal for dense PCB layouts, enhancing space efficiency by up to 45% compared to larger 2.00 mm pitch systems.

Common applications include automotive alarm systems, audio and DVD player electronics, and medical equipment, where performance and reliability are critical. Constructed with nylon housing and tin-plated phosphor bronze contacts.

Friction-locking mechanism secures mating connections during vibrations. Supports wire-to-board connections with a 1.25 mm pitch compact layout. Operates between -40°C and 85°C for use in harsh conditions. Lightweight design reduces strain on PCBs.

Solder termination ensures strong and durable pin connections. Suitable for automotive, audio, medical, and consumer electronics applications.
