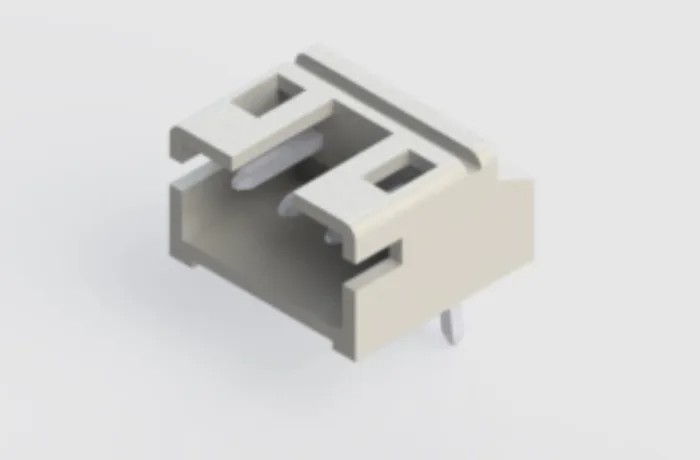

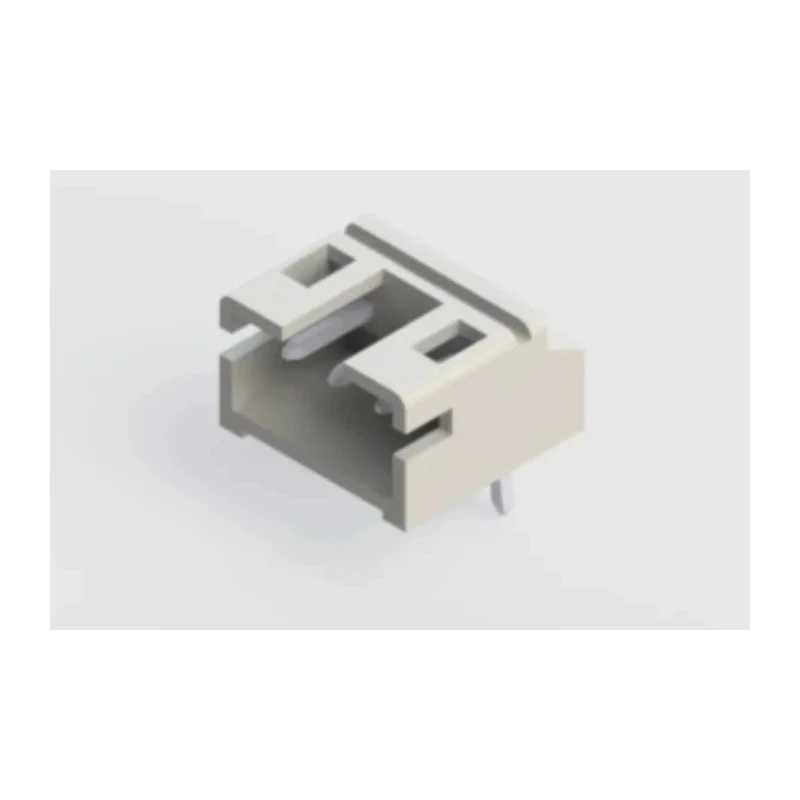

EDAC 140 Series Right Angle Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-503-415-000

EDAC 140-503-415-000 is a right angle through hole PCB Header Connector tailored for wire-to-board applications with a pitch of 2 mm and a single row of 3 contacts. Manufactured with a shrouded design, it ensures precise mating and protection of contacts. The connector's housing is crafted from Polyamide 66, a material known for its mechanical strength and flame retardant properties, rated UL94V-0. Brass contacts with tin plating provide excellent electrical conductivity and resistance to corrosion.

This PCB header supports currents up to 2 amperes at 100 volts, suitable for a variety of electronic circuits requiring compact yet reliable connectivity. The right-angle orientation facilitates PCB layouts where space is constrained, while the through-hole mounting and solder termination guarantee robust mechanical and electrical connections.

The tail pin length of 3.4 mm is optimized for soldering within standard PCB manufacturing processes. With an operating temperature range from -40°C to 105°C, this connector ensures stable performance under various environmental conditions.

Its features include a low profile insulator body and board retention contacts that hold the connector firmly in place during assembly and use. The first and last contacts are kinked to enhance retention and performance. The connector complies with RoHS directives, making it suitable for environmentally conscious applications.

The connector's right-angle orientation supports effective PCB design flexibility. Durable Polyamide 66 housing provides mechanical strength and flame retardance. Brass contacts with tin plating ensure reliable electrical connections.

Through-hole solder termination offers secure mounting on PCBs. Wide operating temperature range from -40°C to 105°C accommodates diverse environments. Shrouded design protects contacts and prevents mis-mating. Compliance with RoHS environmental standards ensures safe usage.

Low profile design supports compact and high-density PCB layouts. Side entry and board retention contacts improve assembly and operational stability.

This EDAC PCB header is widely used in industrial electronics, communications, instrumentation, and consumer electronic devices where reliable, dense interconnections are required. Its design caters to automated PCB assembly and soldering processes, enhancing manufacturing efficiency and product reliability.

EnvMart offers this reliable connector as part of the broader range of electronic components suitable for professional and industrial applications.
