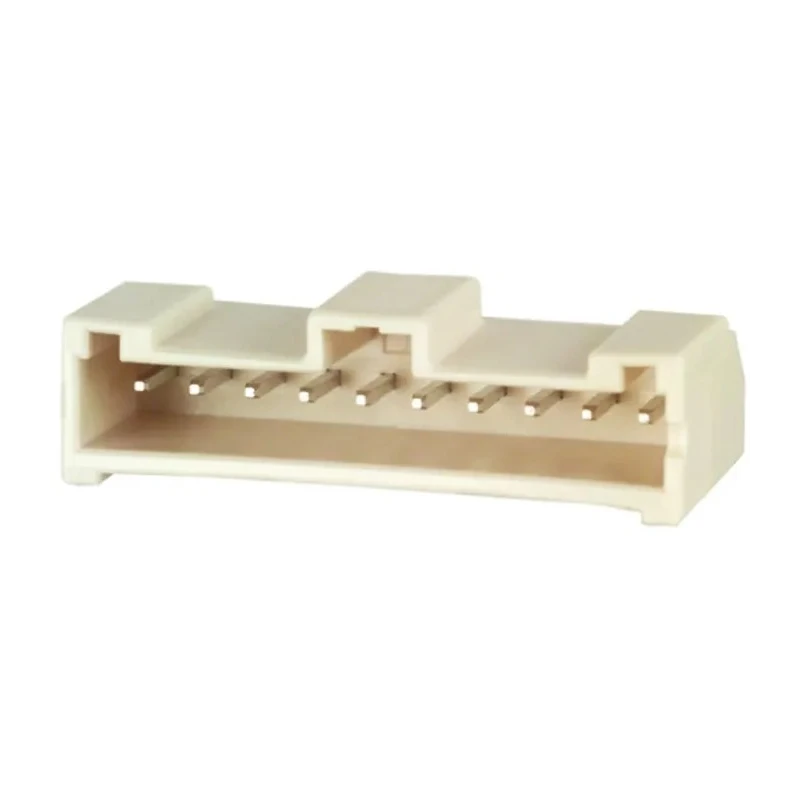

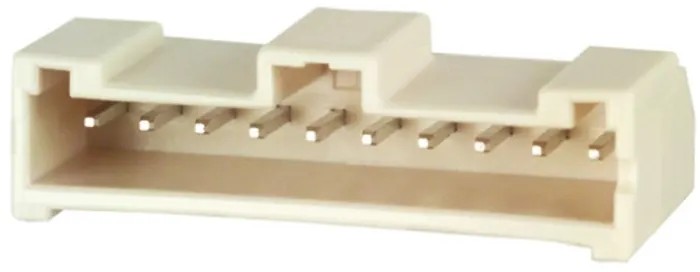

Hirose DF1E Series Right Angle Through Hole PCB Header Connector 10 Contacts 2.5 mm Pitch 1 Row Shrouded DF1E
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 3A |
| Model | DF1E |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF1E |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Interfaces | Lance adopted |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Offers reliable 3A current rating for electronic circuits.
- Features brass contact material with tin plating for durability.
- Housing made of polyamide material resistant to soldering cracks.
- Shrouded and polarized design prevents mis-mating and supports secure connection.
- Suitable for industrial, office, and electronic equipment applications.
- Operates between -35°C to 85°C temperature range.
- Right angle orientation with mounting bosses for PCB assembly.
- Wire-to-board connector system with solder termination type.
Product Description
Hirose DF1E Series Right Angle Through Hole PCB Header Connector, model DF1E, features 10 male contacts arranged in a single row with a 2.5 mm pitch. This shrouded design provides polarization to avoid mis-mating, and the housing is crafted from durable glass reinforced polyamide resin which ensures resistance to cracking during soldering processes.
The right angle through hole mount allows for stable PCB installation and includes mounting bosses that enhance mechanical support. With a current rating of 3A and an operating voltage of 250V, it is designed to deliver reliable electrical connections in demanding environments.
Contact material is brass with tin plating finishing to provide excellent conductivity and corrosion resistance. The connector is intended for use in various applications including industrial equipment, office machines, and a wide range of electronic devices requiring secure wire-to-board connections.
This PCB header operates reliably in a temperature range of -35°C to 85°C and offers additional features like a full lock system to improve contact fixation and solder crack prevention, increasing durability and service life. The connector’s termination type is solder, facilitating secure and long-lasting connections.
Reliable 3A current rating suitable for typical electronic applications. Durable polyamide housing resists soldering damage. Shrouded and polarized design prevents incorrect mating. Right angle orientation with mounting bosses for enhanced durability.
Wire-to-board connection using through hole solder termination. Brass contacts with tin plating ensure conductivity and corrosion resistance. Operates safely between -35°C and 85°C temperature range. Rated for 250V voltage to support various equipment.
Suitable for industrial, office, and general electronics equipment. Manufactured to high quality standards in Indonesia. Explore our full range of PCB headers and connectors for advanced electronic and industrial assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a reliable current rating of 3A, making it suitable for typical electronic applications.
The Hirose DF1E Series connector is rated for a maximum operating voltage of 250V.
It operates reliably within a temperature range of -35°C to 85°C.
This model features 10 male contacts arranged in a single row.
The Hirose DF1E Series connector utilizes a solder termination type for secure connections.
The housing is made of polyamide, while the contacts are brass with tin plating for conductivity and corrosion resistance.
The contact pitch for the DF1E connector is 2.5 mm.
This connector features a right angle orientation, which aids in PCB installation.
It supports a wire-to-board connector system, facilitating secure connections between wires and PCBs.
Yes, it features a shrouded and polarized design that prevents mis-mating and supports secure connections.
This connector is manufactured in Indonesia.
It is suitable for use in industrial equipment, office machines, and various electronic devices requiring secure wire-to-board connections.
