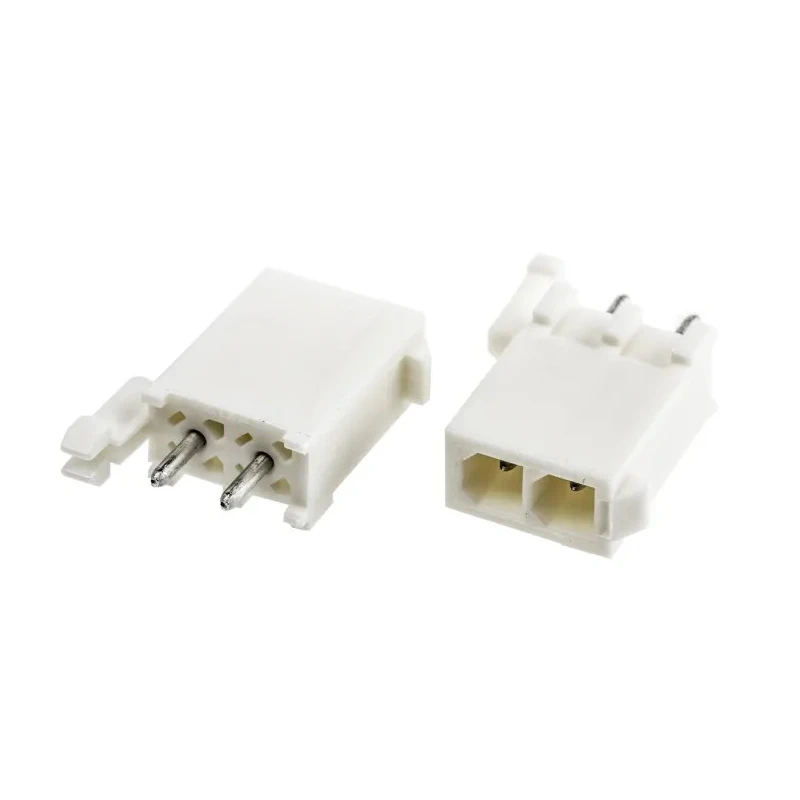

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 2 Contacts, 4.14 mm Pitch, 1 1-770166-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- The housing is made from durable white UL94V-0 nylon ensuring flame retardance.
- Contacts are brass with tin plating for reliable electrical conductivity.
- Designed with a positive locking latch mechanism for secure mating and board retention.
- Mount type is through hole with a tail pin length of 3.69 mm for solder termination.
- Operates safely between -55°C to 105°C temperature range.
- Shrouded connector design enhances protection against accidental contact.
- Ideal for industrial electronic applications requiring robust PCB interconnection solutions.
Product Description
TE Connectivity 1-770166-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is designed for reliable wire-to-board connections in industrial and electronic applications. Featuring 2 male contacts arranged in a single row with a 4.14 mm pitch, this PCB header supports a voltage rating of up to 600 volts.
The connector housing is manufactured from high-quality white nylon rated UL94V-0 for flame resistance, providing safety under demanding conditions. The contacts are brass, plated with tin to ensure corrosion resistance and consistent electrical performance. The connector includes a positive locking latch mechanism that guarantees secure engagement and retention on PCBs.
This through hole mount header facilitates solder termination with a tail pin length of 3.69 mm, ensuring mechanical stability on the PCB. Operating temperature range extends from -55°C to 105°C, making it suitable for diverse environments.
Shrouded design provides extra protection and reduces risk of accidental short circuits or damage. The connector system is intended for use in wire-to-board industrial applications, including automation, telecommunications, and instrumentation.
The housing material is UL94V-0 rated nylon ensuring high flame retardancy. Brass contacts with tin plating enhance durability and electrical conductivity. Positive locking latch mechanism secures the connector during use.
Through hole mount type with 3.69 mm tail pin length for soldering. Supports rated current of 9.5 A and voltage up to 600 V. Temperature operating range from -55°C to 105°C for wide industrial applicability. Designed with a 4.14 mm pitch and 1 row configuration for PCB placement.
TE Connectivity’s Mini-Universal MATE-N-LOK connectors are widely trusted in industrial manufacturing, electronic component assemblies, laboratory instrumentation, and other demanding environments requiring robust electrical connections.
Explore the comprehensive range of TE Connectivity connectors and related products in the EnvMart Electronics & Electricals category for optimized system integration and reliable performance.
Explore more products in our PCB Header Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of up to 600 volts.
The rated current capacity is 9.5 A.
The contacts are arranged with a pitch of 4.14 mm.
The housing is made from nylon rated UL94V-0, and the contacts are brass with tin plating.
It utilizes solder termination with a tail pin length of 3.69 mm.
It operates safely between -55°C to 105°C.
This model features 2 male contacts.
It is designed for through hole mounting.
Yes, it has a shrouded design that enhances protection against accidental contact.
It is intended for wire-to-board connections in industrial applications such as automation and telecommunications.
The orientation of this model is straight.
The country of origin for this PCB header is India.
