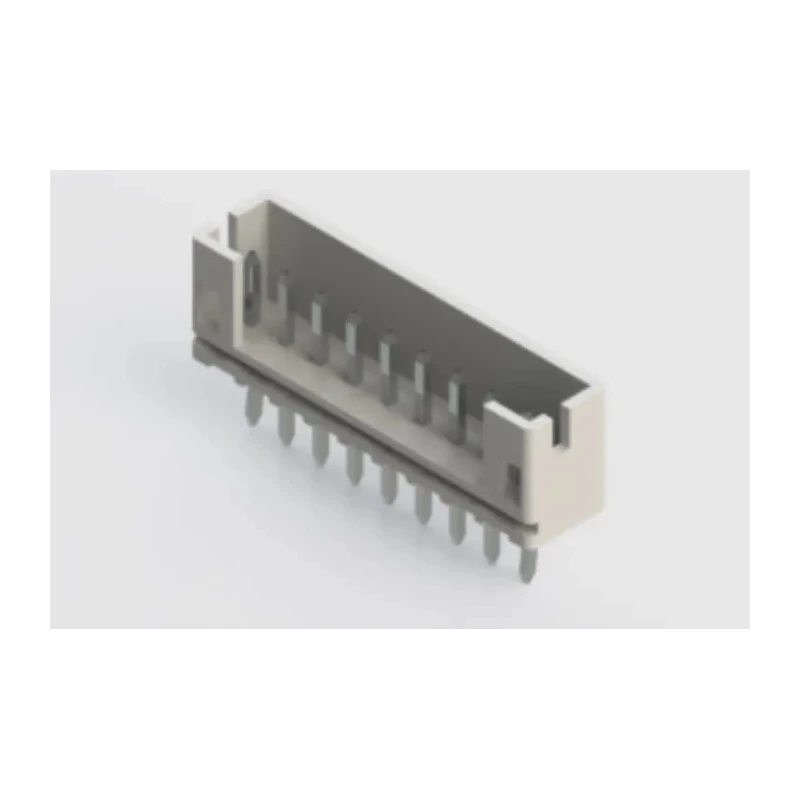

EDAC 140 Series Vertical Through Hole PCB Header 9 Contacts 2 mm Pitch 1 Row Shrouded 140-509-415-001

The EDAC 140-509-415-001 is a vertical through hole PCB Header Connector designed for reliable wire-to-board applications. Featuring 9 female contacts arranged in a single row with a 2 mm pitch, it provides a shrouded connector system that protects contacts and prevents accidental disconnection.

This PCB header is constructed with a polyamide 66 housing material known for its robust mechanical and thermal properties, certified under UL94V-0. The brass contacts are plated with tin to optimize conductivity and solderability, ideal for high-density PCB assemblies.

Operating within a wide temperature range from -40°C to 105°C, this connector supports a current rating of 2 amperes and a voltage rating of 100 volts. The tail pin length of 3.4 mm ensures reliable solder termination on PCBs. The design includes kinked first and last contacts for enhanced retention and secure electrical contact.

Additional features include a low profile insulator body, board retention contacts, and compliance with RoHS standards ensuring environmental safety. The connector is particularly suitable for electronic, electrical, and industrial applications requiring robust board-level connections.

Constructed with durable polyamide 66 housing. Brass contacts plated with tin for excellent conductivity. Supports 2A current at 100V voltage rating. Wide operating temperature range from -40°C to 105°C. Shrouded vertical wire-to-board connector system.

Kinked first and last contacts for secure connection. RoHS compliant and UL94V-0 rated insulation material. Tail pin length of 3.4 mm with solder termination.

This EDAC PCB header is ideal for electronics manufacturing, industrial control systems, and other applications requiring durable and reliable PCB connectors. Explore the full range of PCB headers and connectors on EnvMart for compatible components and accessories.
