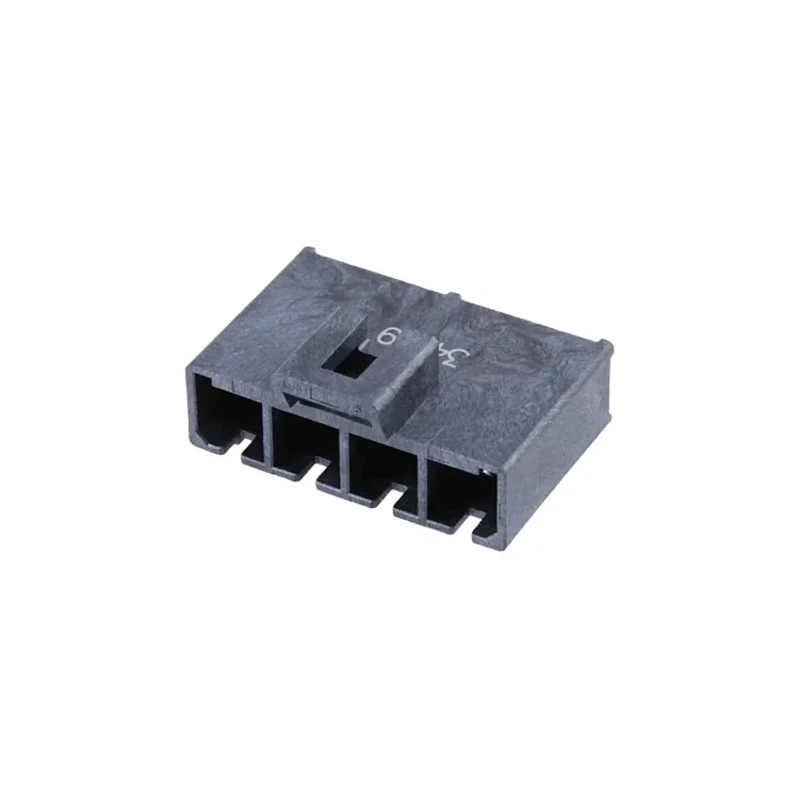

Molex 200241 Series Right Angle Through Hole PCB Header, 4 Contact, 5.7 mm Pitch, 1 Row, Shrouded 200241-4214
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 26 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 200241 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 5.7mm |
| Contact Plating | Matte Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
Key Features
- Rated current of 26A ensures effective power delivery.
- 5.7 mm pitch suitable for precision PCB layouts.
- Right angle orientation facilitates flexible PCB design.
- Shrouded housing protects contacts and improves durability.
- Constructed from liquid crystal polymer for high heat resistance.
- Matte tin plated copper alloy contacts reduce oxidation risk.
- Solder termination guarantees stable mechanical and electrical connection.
- Operates reliably from -40°C to 105°C temperature range.
Product Description
Molex 200241-4214 is a right angle through hole PCB Header Connector designed for high-power electronic applications. Featuring 4 contacts spaced at a 5.7 mm pitch in a single-row, shrouded configuration, this connector ensures reliable wire-to-board connections in compact and demanding environments.
The connector housing is molded from liquid crystal polymer, providing excellent thermal stability and mechanical strength. Contacts are made from a highly conductive copper alloy and plated with matte tin to offer reduced oxidation and enhanced conductivity. The right angle design enables flexible PCB layouts, optimizing board space utilization.
Rated for currents up to 26 amperes and voltages up to 600 volts, it is well suited for industrial, automation, mechanical equipment, and power distribution applications. The solder termination and through hole mount type provide secure and durable attachment to PCBs.
Operating temperature ranges from -40°C up to +105°C, ensuring performance stability across a wide range of environments. Its shrouded housing design protects contact points, improving longevity and reducing the risk of accidental shorts or damage.
Rated current of 26A ensures effective power delivery. 5.7 mm pitch suitable for precision PCB layouts. Right angle orientation facilitates flexible PCB design. Shrouded housing protects contacts and improves durability.
Constructed from liquid crystal polymer for high heat resistance. Matte tin plated copper alloy contacts reduce oxidation risk. Solder termination guarantees stable mechanical and electrical connection. Operates reliably from -40°C to 105°C temperature range.
Compatible with through hole PCB mounting technology.
This connector is a robust solution for electronic components requiring dependable wire-to-board connections within various industrial and commercial electronic systems. It supports high current applications where thermal management on a PCB must be considered.
Explore more precision PCB connectors and related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 26 amperes, ensuring effective power delivery for high-power electronic applications.
It is rated for a maximum voltage of 600 volts, suitable for various industrial and commercial applications.
The contacts are spaced at a pitch of 5.7 mm, which is suitable for precision PCB layouts.
This unit utilizes a through hole mount type, providing secure attachment to PCBs.
The housing is constructed from liquid crystal polymer, offering high heat resistance and mechanical strength.
It features solder termination, which guarantees stable mechanical and electrical connections.
It operates reliably within a temperature range of -40°C to 105°C, ensuring performance stability in various environments.
This model has 4 contacts, organized in a single row configuration.
The connector is designed with a right angle orientation, facilitating flexible PCB design.
The contacts are made from a copper alloy and are plated with matte tin to reduce oxidation risk.
This connector features a shrouded design, which protects the contacts and improves durability.
It is suitable for high current applications in industrial, automation, mechanical equipment, and power distribution systems.
