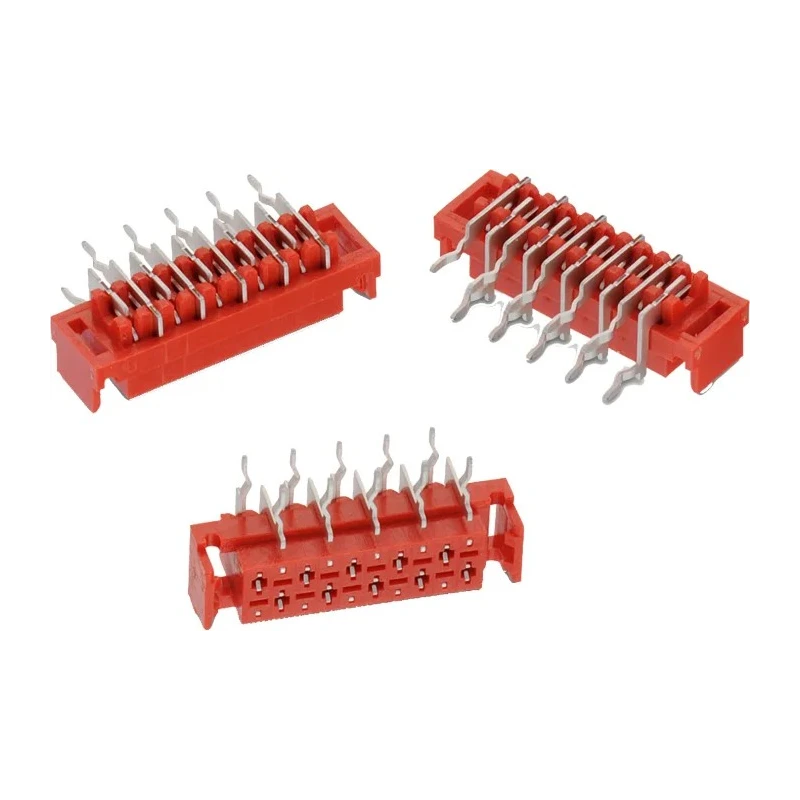

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header 12 Contacts 2.54 mm Pitch Shrouded 690368191272
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- This PCB header features a shrouded design to ensure secure connection and prevent accidental disconnections.
- It supports a current rating of 1.5A and a voltage rating of 250V, suitable for various electronic applications.
- Constructed with polybutylene terephthalate housing and phosphor bronze contacts plated with matt tin over nickel for durability.
- Designed with right angle orientation and through-hole mount type for efficient PCB integration.
- Operating temperature range spans from -40°C to 105°C, supporting robust performance in diverse environments.
- Complies with RoHS and UL E323964 certifications ensuring safety and quality standards.
- The contact gender is female with a tail pin length of 2.9 mm, facilitating secure solder termination.
- Ideal for industrial, electronic component manufacturing, and power connector applications.
Product Description
Wurth Elektronik model 690368191272 is a WR-MM Series Right Angle Through Hole PCB Header designed for high-reliability wire-to-board connections. The component features 12 contacts arranged in 2 rows with a standard 2.54 mm pitch, ensuring compatibility with a broad range of printed circuit boards.
Its housing is made of polybutylene terephthalate, which offers excellent mechanical strength and a flame retardant UL94 V-0 rating. The female contacts are stamped from phosphor bronze and plated with matt tin over nickel, balancing conductivity with corrosion resistance.
The right angle, shrouded design adds mechanical stability and protection during installation and operation. This PCB header supports a current rating of 1.5A and voltage rating of 250V, making it suitable for electronic and power applications alike.
Operational temperature ranges from -40°C to 105°C, allowing performance in demanding industrial or commercial environments. The component is compliant with RoHS and approved under UL E323964 standards, ensuring it meets international safety and environmental regulations.
Termination is by solder, with a tail pin length of 2.9 mm to secure strong solder joints. The two-row configuration facilitates multiple signal or power connections in compact spaces.
This PCB header features a shrouded design to ensure secure connection and prevent accidental disconnections. Supports a current rating of 1.5A at 250V suitable for various electrical circuits. Constructed with durable polybutylene terephthalate housing rated UL94 V-0 for flammability resistance.
Phosphor bronze female contacts plated with matt tin over nickel ensure conductivity and corrosion resistance. Right angle orientation and through-hole mount type for ergonomic PCB assembly. Operating temperature range from -40°C to 105°C for harsh environment suitability.
Complies with RoHS directives and UL E323964 approvals for global standards compliance. Ideal for industrial, manufacturing, power connectors, electronics assembly, and laboratory applications. Explore Wurth Elektronik's extensive range of reliable PCB connectors on EnvMart for seamless integration into your electronic projects.
Explore more products in our PCB Header Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A and a voltage rating of 250V, making it suitable for various electrical circuits.
The housing is made of polybutylene terephthalate, while the female contacts are constructed from phosphor bronze and plated with matt tin over nickel for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 105°C, allowing it to perform in demanding environments.
Termination is achieved by soldering, with a tail pin length of 2.9 mm to ensure secure solder joints.
This PCB header features a pitch of 2.54 mm and includes 12 contacts arranged in 2 rows.
It complies with RoHS directives and is approved under UL E323964 standards, ensuring it meets international safety and environmental regulations.
It is designed for through-hole mounting, which facilitates efficient integration onto printed circuit boards.
This model features a right angle orientation, which aids in ergonomic PCB assembly and space management.
This model is designed as a wire-to-board connector system, suitable for high-reliability connections.
The contact gender is female, which is standard for many PCB header applications.
The country of origin for this model is China.
It is ideal for industrial, electronic component manufacturing, and power connector applications, supporting a wide range of electronic projects.
