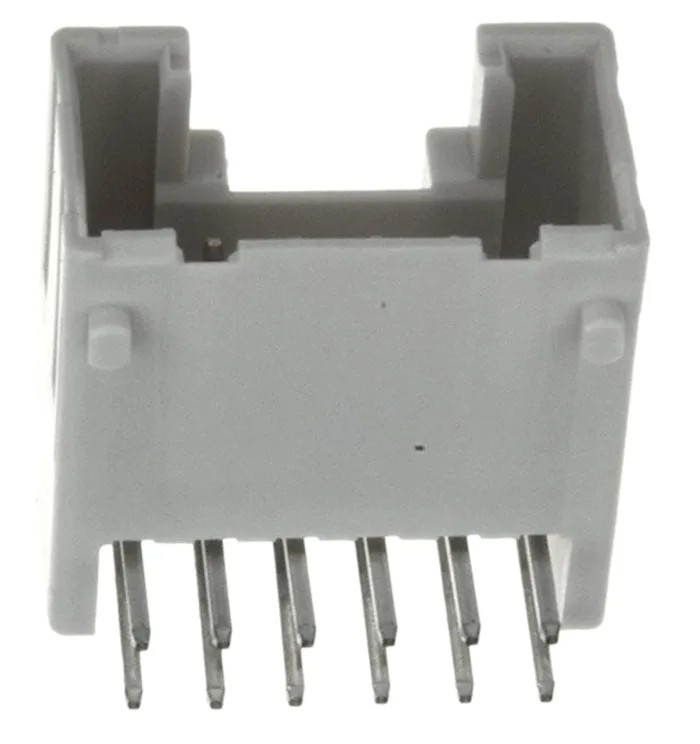

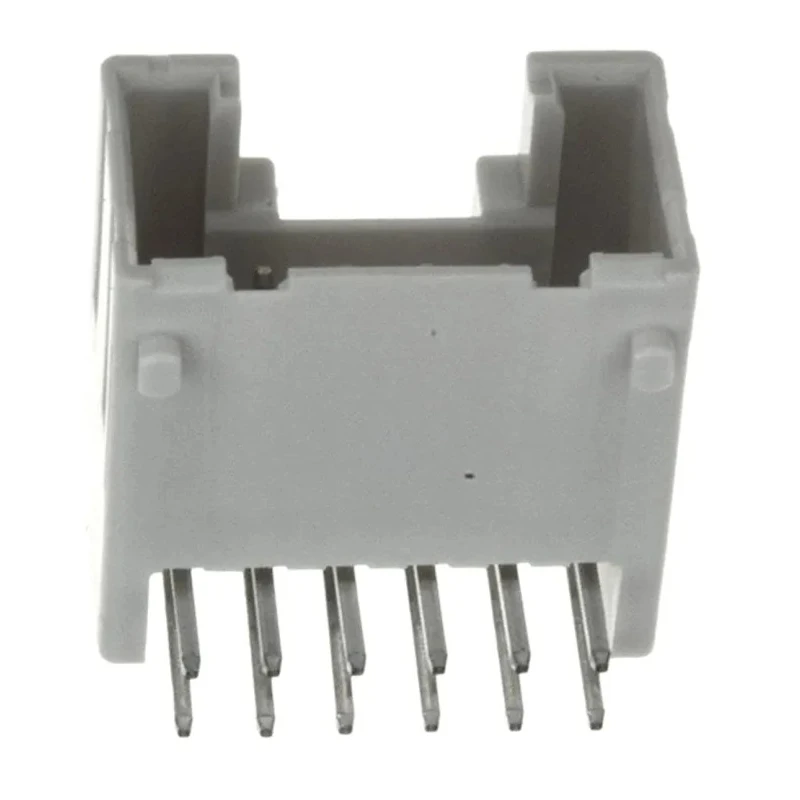

JST PUD Series 2.0mm Pitch 12 Contact Right Angle Through Hole Shrouded PCB Header Connector S12B-PUDSS-1(LF)(SN)

JST S12B-PUDSS-1(LF)(SN) is a PUD Series 2.0mm pitch PCB header connector engineered for reliable and stable right angle wire-to-board connections in electronic assemblies. Featuring a compact 12 contact, 2-row design, it offers high-density connection in a shrouded housing that enhances durability and safety in industrial applications.

The connector is constructed with copper alloy contacts plated with tin, providing excellent electrical conductivity and resistance to corrosion. Its low insertion force design ensures ease of assembly while maintaining stable contact performance, even in high vibration environments. The integrated locking mechanism emits an audible click, confirming secure mating between header and socket.

With a current rating of 3A and voltage rating of 250V, the connector satisfies performance requirements for many electronic and industrial use cases. Its operating temperature range from -25°C to 85°C enables stable operation under varying ambient conditions.

The through hole mounting method endorses solid mechanical fixation to PCBs, supporting long-term reliability. The shrouded design offers protection against accidental electrical contact, critical for safety in manufacturing and laboratory equipment. JST's PUD series connectors are thus suitable for use in varied sectors such as industrial automation, manufacturing electronics, and power distribution systems.

The package includes the PCB header connector ready for installation with precise dimensions ensuring compatibility with standard 2.0mm pitch PCB layouts. Its rugged construction and compact form factor allow it to meet the demands of modern electronic assembly.

The connector offers low insertion force facilitating easy assembly and maintenance. Copper alloy contact material with tin plating ensures performance and longevity. Supports current up to 3A and voltage up to 250V for versatile applications.

Right angle orientation suits high-density PCB layouts and constrained spaces. Shrouded housing enhances safety and protects contacts from damage. Operational temperature range from -25°C to 85°C adapts to diverse environments.

Through hole mounting type guarantees secure PCB placement and mechanical strength. Locking mechanism with audible click provides secure and reliable connections. Compact double-row design saves PCB space while accommodating required contacts.

Explore more PCB Header Connectors and electronic components on EnvMart for efficient manufacturing and industrial projects.
