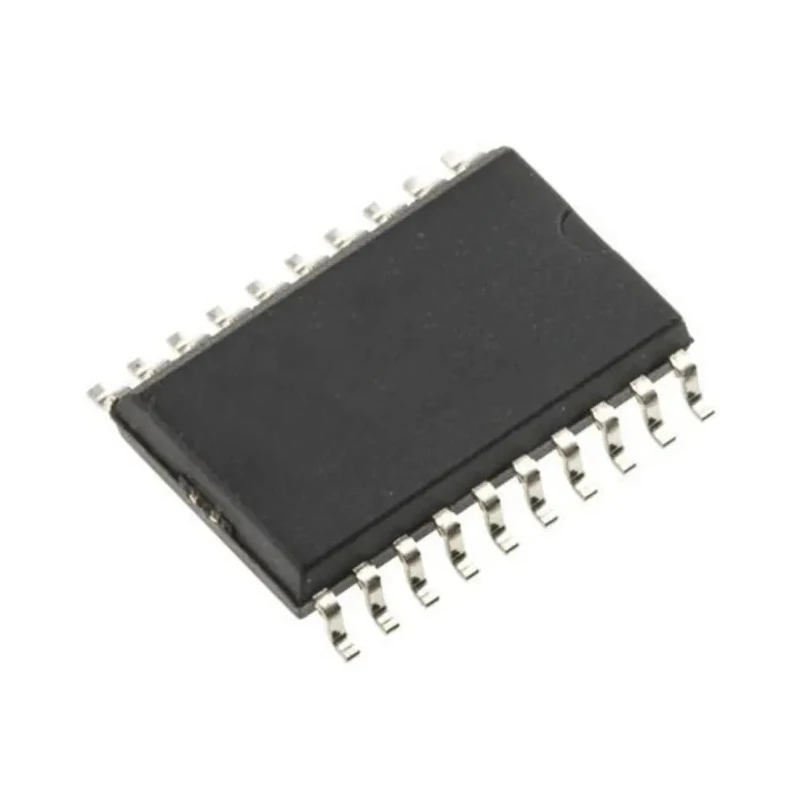

onsemi Voltage Level Shifter Buffer 1 Buffer 20-Pin SOIC MC74LCX541DWG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.4mm |
| Length | 12.95mm |
| Model | MC74LCX541DWG |
| Mount Type | Surface |
| Output type | TTL |
| Series | MC74LCX541 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LCX |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 7.5ns |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 24mA |
| Translation | Buffer |
Key Features
- Operates with supply voltage range of 2.3 to 3.6 V.
- 5V tolerant interface compatible with TTL logic levels.
- Surface mount package type suitable for modern PCB assembly.
- Max propagation delay time of 7.5 nanoseconds at specified load capacitance.
- High output current capability with balanced 24mA sink and source.
- Wide operating temperature range from -40°C to 85°C.
- Meets automotive AEC-Q100 reliability standard.
- ESD protected exceeding 2000V Human Body Model and 200V Machine Model.
Product Description
onsemi MC74LCX541DWG is a 20-pin SOIC Voltage Level Shifter buffer designed for uni-directional buffer/translating functions in electronic circuits. It operates efficiently in a supply voltage range of 2.3 to 3.6 volts, making it suitable for interfacing between different logic voltage levels.
The device offers high current drive capability with 24mA balanced output sink and source current, supporting TTL output type logic functions. Its maximum propagation delay time of 7.5 nanoseconds enables fast signal translation for responsive digital applications.
Designed for surface mount technology, the package has a length of 12.95mm and a height of 2.4mm. It supports 5V tolerant interfaces, thus compatible with 5V TTL logic, and meets automotive-grade standards (AEC-Q100), reinforcing its reliability in harsh industrial and automotive environments.
Additional features include near zero static supply current across all three logic states and robust ESD protection exceeding 2000V Human Body Model, ensuring durability and reducing power requirements in complex system designs. This buffer supports integration in semiconductor and electronic component applications ranging from power management to high-speed logic interfacing.
Uni-directional voltage level translation buffer with 1 element per chip. Operates at minimum voltage of 2V and maximum voltage of 3.6V. 20 pins in SOIC surface mount package. Compatible with LCX logic family for low voltage buffer applications.
Temperature operating range from -40°C to 85°C for industrial usage. Has automotive standard certification AEC-Q100. Features low static supply current and high ESD immunity. Length 12.95 mm and height 2.4 mm for compact PCB integration.
This product is ideal for industrial, automotive, laboratory, and electronic manufacturing environments requiring reliable voltage level shifting and buffering. Discover more semiconductor and buffer solutions in the Electronics & Electricals category on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 2.3 to 3.6 volts.
The maximum propagation delay time is 7.5 nanoseconds at the specified load capacitance.
It has a balanced output current capability of 24mA for both sink and source.
This model operates within a temperature range of -40°C to 85°C.
It is available in a 20-pin SOIC surface mount package.
Yes, it features a 5V tolerant interface that is compatible with TTL logic levels.
It meets the automotive AEC-Q100 reliability standard.
This model has 1 element per chip.
The height is 2.4 mm and the length is 12.95 mm.
It belongs to the LCX logic family, designed for low voltage buffer applications.
It is a uni-directional buffer designed for voltage level translation.
It provides ESD protection exceeding 2000V Human Body Model and 200V Machine Model.
