DiodesZetex 3.6 V Ultra Small Surface Mount Zener Diode 200 mW 5% Tolerance SOD-923 DZ9F3V6S92-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 3.6 V Ultra Small Surface Mount Zener Diode 200 mW 5% Tolerance SOD-923 DZ9F3V6S92-7

Name: DiodesZetex 3.6 V Ultra Small Surface Mount Zener Diode 200 mW 5% Tolerance SOD-923 DZ9F3V6S92-7
Brand: DiodesZetex
SKU: 319419
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.37mm
Length	0.8mm
Model	DZ9F3V6S92-7
Mount Type	Surface
Series	DZ9F
Maximum Operating Temperature	150°C
Package Type	SOD-923
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	200mW
Test Current It	5mA
Maximum Reverse Leakage Current	10μA
Nominal Zener Voltage Vz	3.6V
Zener Type	Ultra Small
Maximum Zener Impedance	1000Ω
Typical Voltage Temperature Coefficient	0mV/°C

Key Features

The package type is SOD-923, suitable for surface mounting applications.
Maximum power dissipation is 200 mW ensuring reliable performance.
The diode features a 5% voltage tolerance and a test current of 5 mA.
It has a maximum Zener impedance of 1000 ohms and maximum reverse leakage current of 10 microamperes.
Operating temperature ranges from -65°C to 150°C, suitable for harsh environments.
The diode has 2 pins and a very compact size with length 0.8 mm and height 0.37 mm.
It complies with RoHS standards ensuring environmental safety.
Manufactured in China, this diode is part of the DZ9F series offering consistent quality.

Product Description

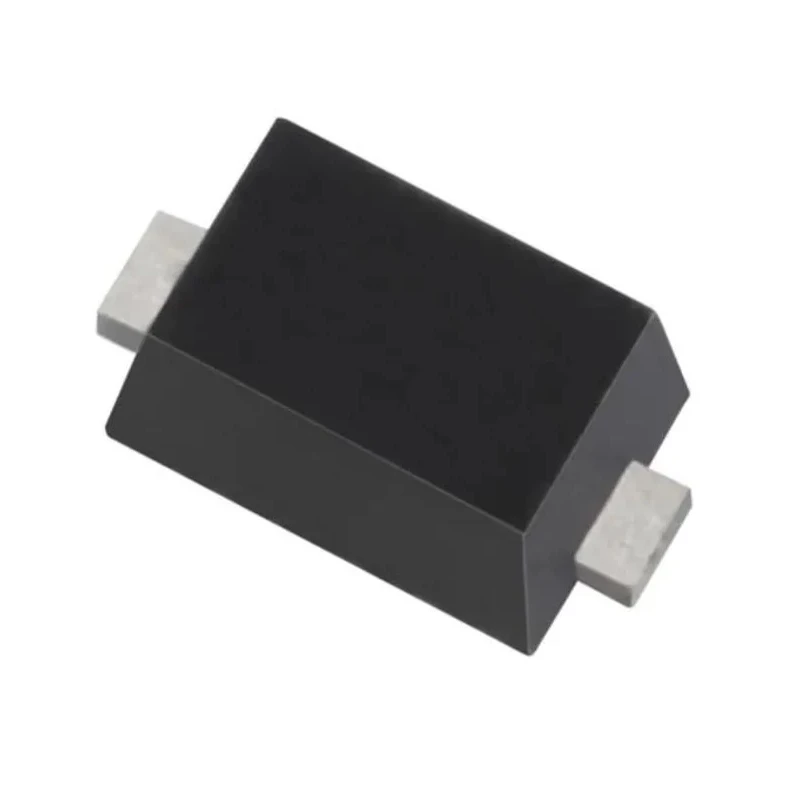

DiodesZetex DZ9F3V6S92-7 is a high precision 3.6 V Zener diode designed for voltage regulation in electronic circuits. It is housed in an ultra small SOD-923 surface mount package with 2 pins, ideal for space-constrained PCB layouts.

This diode supports a maximum power dissipation of 200 mW with a tight voltage tolerance of ±5%, ensuring stable voltage references in power management and protection circuits. The test current is rated at 5 mA, and it features a maximum Zener impedance of 1000 ohms to maintain performance under varying load conditions.

Operating over a wide temperature range from -65°C to 150°C, the DZ9F3V6S92-7 is suitable for industrial and automotive electronics applications that demand reliability under harsh environmental conditions. Compliance with RoHS standards also makes it an environmentally safe choice.

The compact dimensions, 0.8 mm length and 0.37 mm height, allow it to be integrated efficiently into miniature circuitry designs. Typical applications include voltage regulation, reference voltage generation, and protection circuits in consumer electronics, automotive systems, industrial equipment, and telecommunications.

The ultra small surface mount design allows effective space utilization on PCBs. 200 mW power dissipation provides robust voltage regulation capabilities. 5% tolerance ensures precision in voltage control. Wide temperature operation supports various industrial environments.

RoHS compliance meets environmental and safety standards. Two-pin SOD-923 package enhances ease of assembly and inspection. Suitable for voltage regulation and protection in myriad electronic devices.

Choose DiodesZetex DZ9F3V6S92-7 for compact, reliable voltage regulation needs in electronic semiconductor discrete components. Browse the Electronics & Electricals category for more Zener Diode models and related semiconductor components at EnvMart.
