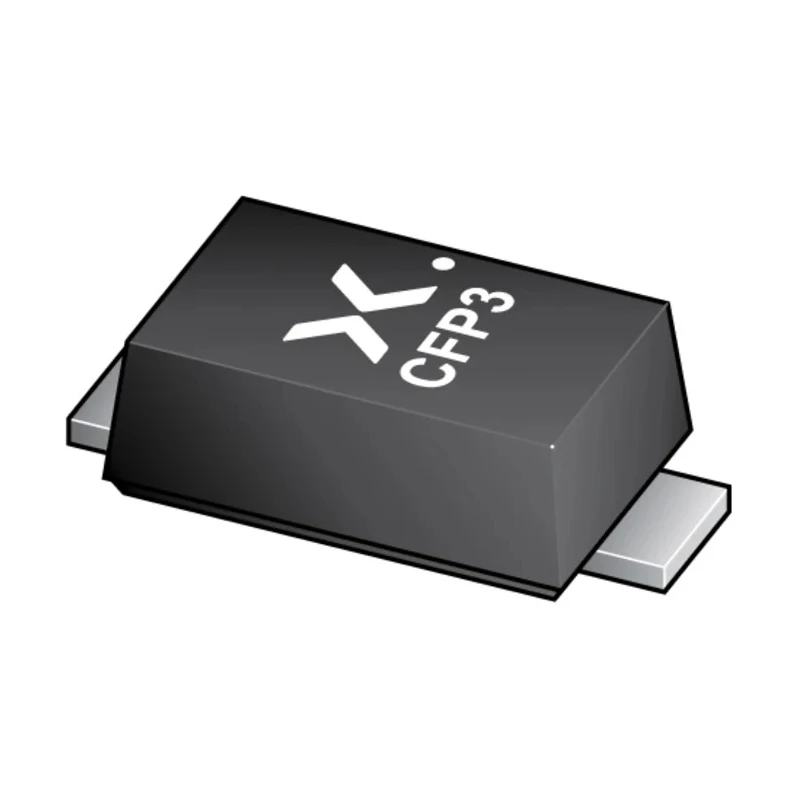

Nexperia Schottky Diode 100 V 1.4 A Surface Mount 2-Pin SOD-123W Package PMEG10010ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG10010ELRX |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG10010ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.4A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 770mV |
| Peak Reverse Recovery Time trr | 3.7ns |
| Average forward current | IF(AV) ≤ 1 A |
| Reverse voltage | VR ≤ 100 V |
Key Features
- This diode provides medium power low forward voltage drop for high efficiency.
- It supports a maximum continuous forward current of 1.4 A.
- The package dimensions are compact, with a length of 2.8 mm, width of 1.9 mm, and height of 1.1 mm.
- The diode is AEC-Q101 qualified for automotive applications.
- It operates reliably at temperatures down to -55°C and up to a maximum of 175°C.
- Peak reverse repetitive voltage is rated at 100 V with a low leakage current of 40 nA.
- Maximum forward voltage is 770 mV with peak reverse recovery time of 3.7 ns.
- Its robust design includes clip-bonding technology for high power capability.
Product Description
Nexperia PMEG10010ELRX Schottky Diode is a surface mount diode packaged in a small form factor SOD-123W 2-pin plastic package. It is designed for medium power applications with a maximum continuous forward current of 1.4 A and a peak reverse voltage rating of 100 V.
This diode features a low forward voltage drop of approximately 770 mV and extremely low leakage current of 40 nA enabling high efficiency and extended battery life in electronic circuits. It is specifically engineered using clip-bonding technology which enhances its power capability and reliability.
The device adheres to the AEC-Q101 automotive industry standard, ensuring suitability for automotive and other demanding industrial environments operating from -55°C to 175°C. Its compact dimensions of 2.8 mm length, 1.9 mm width, and 1.1 mm height enable space-saving circuit board designs.
Typical applications include power supply rectification, battery protection, and high-frequency switching circuits in industrial, automotive, electronics manufacturing, and consumer electronics. The diode's fast switching capability with a peak reverse recovery time of 3.7 ns supports high-speed operation.
Medium power low forward voltage Schottky diode for general purpose use. Surface mount 2-pin SOD-123W package for compact PCB layouts. AEC-Q101 qualified for automotive and industrial reliability. Wide operating temperature range from -55°C to 175°C.
Low leakage current and high efficiency design. Robust electrical characteristics including 100 V reverse voltage and 1.4 A forward current. High surge current capacity up to 50 A peak non-repetitive forward surge. Applications include power rectification, battery management, and switching circuits.
This product exemplifies Nexperia's commitment to quality and performance in discrete semiconductor components. It is ideal for use in industrial, automotive, laboratory, and consumer electronics sectors.
Explore more Schottky diode solutions and semiconductors at EnvMart to enhance your electronic design projects with reliable components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1.4 A.
The peak reverse repetitive voltage rating is 100 V.
The package dimensions are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
It operates reliably at temperatures ranging from -55°C to 175°C.
The maximum forward voltage drop is 770 mV.
The peak reverse recovery time is 3.7 ns.
Yes, it is AEC-Q101 qualified for automotive applications.
The maximum peak non-repetitive forward surge current is 50 A.
This diode has a single diode configuration.
It supports surface mounting.
Typical applications include power supply rectification, battery protection, and high-frequency switching circuits.
The leakage current is rated at 40 nA.
