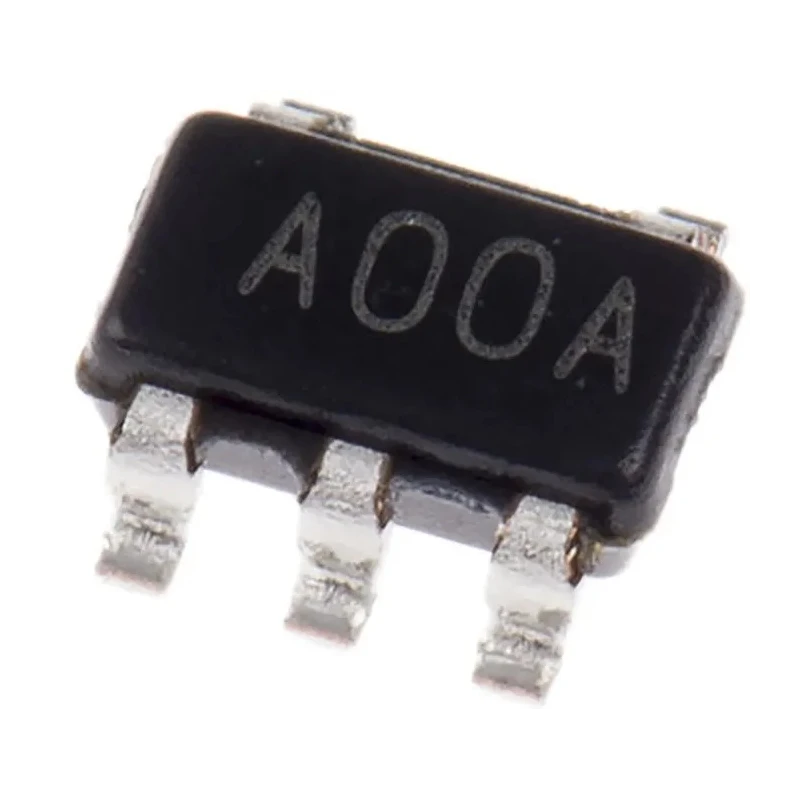

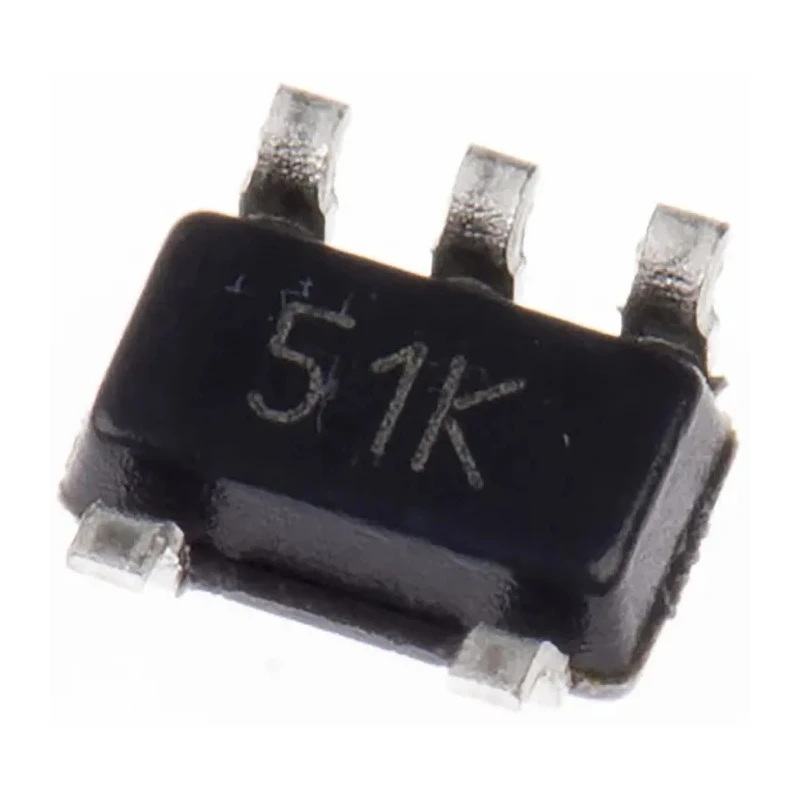

Texas Instruments Operational Amplifier 350 kHz 5-Pin SOT-23 Surface Mount 1.8V-5.5V TLV333IDBVT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | TLV333IDBVT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TLV333 |
| Output Current | 5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | ±150 pA |
| Slew Rate | 0.16V/μs |
| Input Offset Current | 140 pA |
Key Features
- Features dual channels with a gain bandwidth product of 350 kHz.
- Operates with supply voltage range of 1.8V minimum up to 5.5V maximum.
- High precision zero-drift design ensures low offset voltage and low noise.
- Package dimensions are compact, 3.05 mm length, 1.75 mm width, and 1.3 mm height.
- Maximum output current up to 5 mA suitable for signal amplification.
- Wide operating temperature range from -40°C to +125°C for demanding environments.
- Slew rate is 0.16 V/μs for fast signal response.
- Input bias current ±150 pA and input offset current 140 pA for low power consumption.
Product Description
Texas Instruments TLV333IDBVT Operational Amplifier is a high-precision dual-channel device designed for low noise, low offset, and zero-drift applications. This model operates reliably over a supply voltage range from 1.8 V to 5.5 V, providing excellent performance in compact 5-pin SOT-23 surface mount packaging.
With a gain bandwidth product of 350 kHz, the TLV333IDBVT amplifies signals with high fidelity and minimal distortion, making it ideal for a variety of industrial, electronic, and instrumentation applications.
The device features a slew rate of 0.16 V/μs and an output current capacity of up to 5 mA, allowing fast and stable signal processing. Its ultra-low input bias current and input offset current reduce power consumption and improve accuracy over a broad temperature range from -40°C to 125°C.
The physical dimensions of the SOT-23 package are 3.05 mm in length, 1.75 mm in width, and 1.3 mm in height, making this component suitable for compact circuit designs and automated surface mounting processes. Additionally, TLV333IDBVT meets RoHS compliance ensuring environmental protection standards.
Dual-channel zero-drift operational amplifier with low offset voltage ensures stable signal amplification. Operating voltage between 1.8 V and 5.5 V allows flexible circuit design. Robust operating temperature range for industrial and automotive use.
Compact SOT-23 package facilitates high-density PCB layouts. Low quiescent current enhances battery-powered and low-power applications. Typical input offset voltage of 15 µV supports precision analog signals. Ideal for use in industrial control, sensor interfaces, and medical instrumentation.
Surface mount design for automated manufacturing and assembly efficiency.
This operational amplifier is essential for industries demanding precise analog signal processing, including instrumentation, test and measurement equipment, and consumer electronics.
Explore more Operational Amplifiers and semiconductor products at EnvMart for optimized component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLV333IDBVT has a gain bandwidth product of 350 kHz, allowing it to amplify signals with high fidelity.
This model operates with a supply voltage range from 1.8V to 5.5V, providing flexibility for various circuit designs.
The maximum output current for this operational amplifier is up to 5 mA, suitable for signal amplification tasks.
The SOT-23 package dimensions are 3.05 mm in length, 1.75 mm in width, and 1.3 mm in height, making it compact for high-density PCB layouts.
The TLV333IDBVT operates over a temperature range of -40°C to +125°C, suitable for demanding environments.
This operational amplifier has a slew rate of 0.16 V/μs, allowing for fast signal response.
The input bias current for the TLV333IDBVT is ±150 pA, which contributes to its low power consumption.
The input offset current for this model is 140 pA, enhancing its accuracy in signal processing.
This operational amplifier meets RoHS compliance, ensuring it adheres to environmental protection standards.
The TLV333IDBVT features dual channels, making it suitable for various applications requiring multiple signal paths.
This operational amplifier is suitable for industrial control, sensor interfaces, and medical instrumentation, among other applications.
The TLV333IDBVT comes in a SOT-23 package type, designed for surface mount applications.
