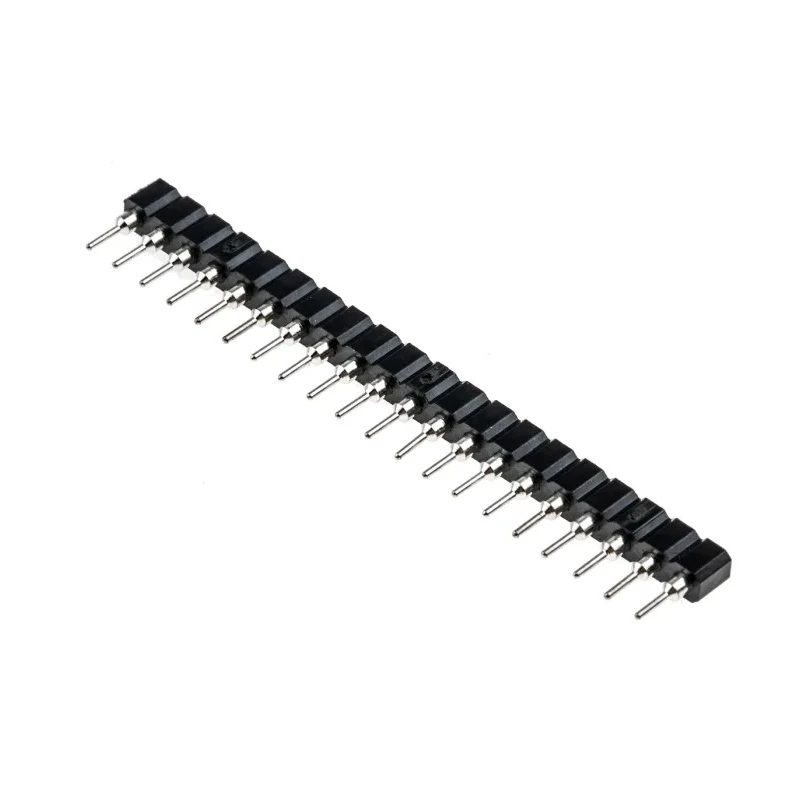

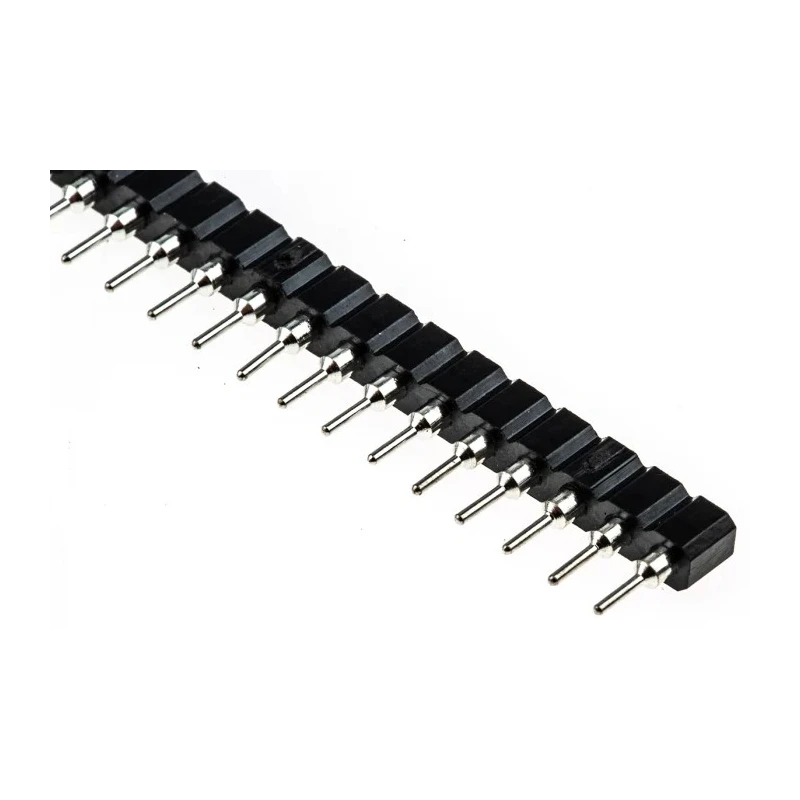

Winslow W355 Series Straight Through Hole Socket Strip 20-Contact 1 Row 2.54 mm Pitch Solder W35520TRC

Free Delivery in India | Lowest Global Shipping Charges

Winslow W355 Series Straight Through Hole Socket Strip 20-Contact 1 Row 2.54 mm Pitch Solder W35520TRC

Name: Winslow W355 Series Straight Through Hole Socket Strip 20-Contact 1 Row 2.54 mm Pitch Solder W35520TRC
Brand: Winslow
SKU: 316243
Price: 1 USD
Availability: InStock



Category Solder Brand Winslow Condition New

Specifications

Country of Origin	China
Brand	Winslow
Orientation	Straight
Current	12A
Model	W35520TRC
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyester
Contact Material	Beryllium Copper Alloy, Brass
Series	W355
Termination Type	Solder
Maximum Operating Temperature	150°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold, Nickel, Tin
Number of Contacts	20
Contact Gender	Male
Connector System	Board-to-Board
20-WAY SIL SKT TURN PINBrand	NEUTRAL

Key Features

Supports a current rating of 12A for reliable electrical performance.
Constructed with fibreglass reinforced polyester housing for durability.
Contact material is beryllium copper alloy and brass with gold, nickel, and tin plating for corrosion resistance.
Designed for through hole mounting with a straight orientation.
Operating temperature ranges from -65°C to 150°C, allowing use in extreme environments.
Complies with RoHS standards ensuring environmental safety.
The series W355 ensures compatibility across similar connector types.
Manufactured in China with high profile, turned pin socket contacts enhancing connection stability.

Product Description

Winslow W35520TRC Straight Through Hole Socket Strip is a high-quality board-to-board connector featuring 20 male contacts arranged in a single row with a 2.54 mm pitch. Designed for solder termination, this socket strip offers a robust current rating of 12A and supports reliable electrical connections in demanding industrial and electronic environments.

The housing is crafted from fibreglass reinforced polyester, providing excellent mechanical strength and resistance to wear. Contacts are made from beryllium copper alloy and brass, plated with gold, nickel, and tin to ensure superior conductivity and corrosion resistance. The straight orientation and through hole mount type simplify PCB installation.

Operational between -65°C and 150°C, this component is suitable for extreme temperature conditions encountered in manufacturing, industrial electronics, and laboratory instrumentation. It conforms to RoHS standards, promoting eco-friendly compliance.

This W355 series socket strip features a high profile turned pin design, allowing easy and secure wire wrap or Solder connections. The strips are versatile and can be cut to specific sizes as needed, enabling tailored solutions for various electronic assembly applications.

Common applications include use in electronic manufacturing, industrial control systems, HVAC equipment interface boards, and any scenario requiring dependable, high-density board-to-board connectivity.

Supports high current capacity and durability for industrial use. Reliable contact plating ensures long-term performance. Temperature resilience suitable for harsh working conditions. Customizable length by cutting to exact requirements.

Compliant with RoHS for environmental and safety standards.

Explore the range of PCB sockets and connectors available at EnvMart to enhance your electronic assembly and manufacturing projects with trusted components like the Winslow W35520TRC.
