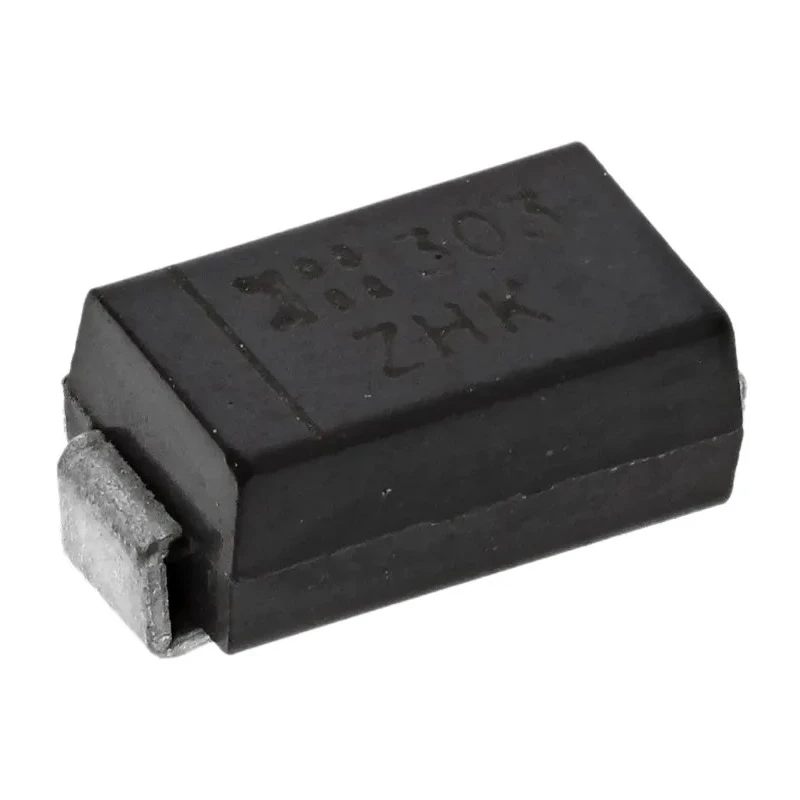

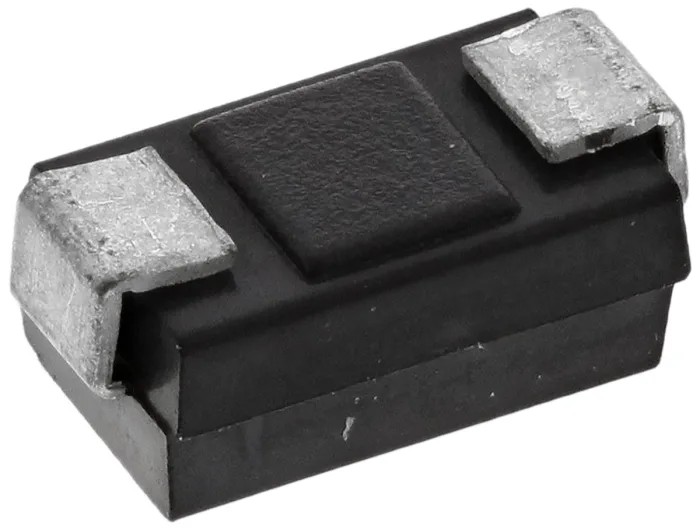

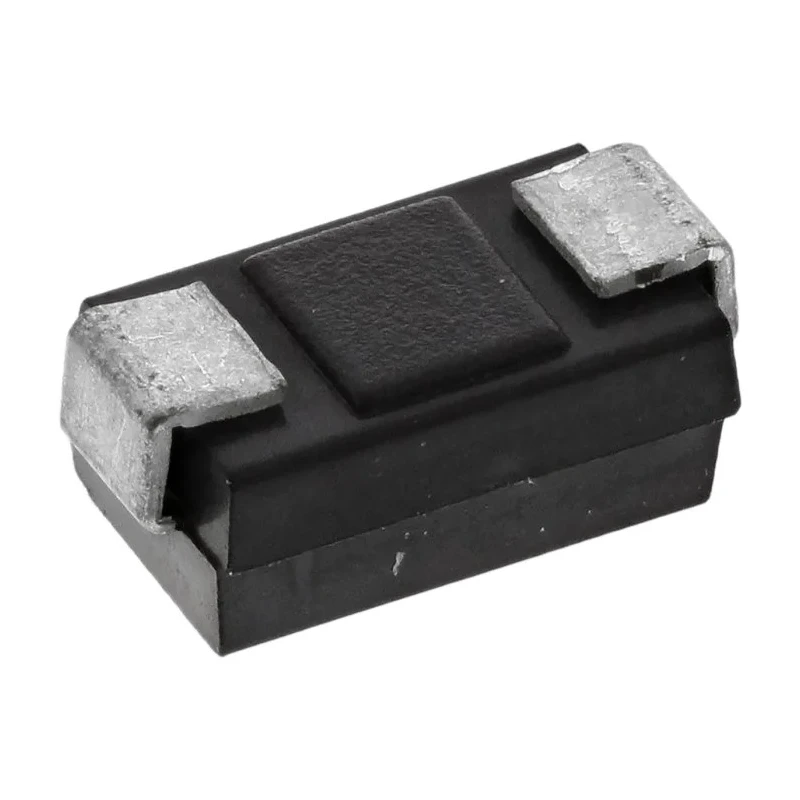

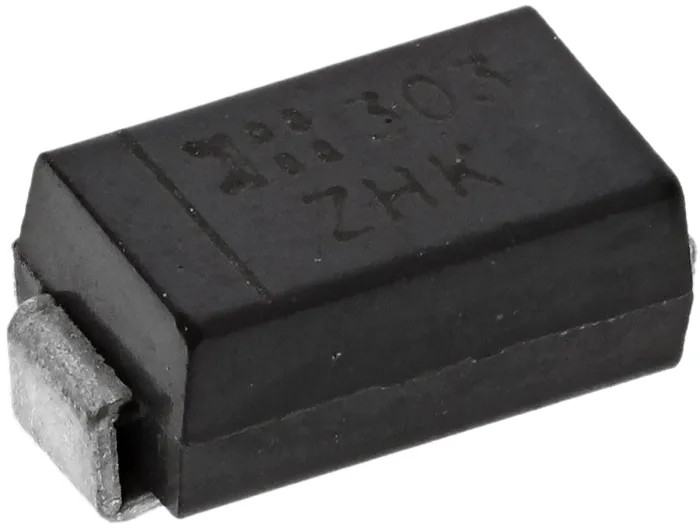

DiodesZetex 5.1 V 1 W Surface Mount Zener Diode Single 2-Pin DO-214AC SMAZ5V1-13-F

The DiodesZetex SMAZ5V1-13-F is a high-quality 5.1 V 1 W Zener diode designed for voltage regulation in electronic circuits. Featuring a single diode configuration and surface mount DO-214AC package, this component provides stable voltage regulation with a tolerance of ±5%. It is capable of dissipating up to 1 watt of power, making it suitable for low power applications.

This device operates with a test current of 100 mA and exhibits a maximum Zener impedance of 5 ohms, ensuring efficient and precise regulation. It maintains a very low reverse leakage current of 2.5 microamperes, which helps preserve circuit integrity. The diode's robust operating temperature range from -65°C to 150°C allows it to perform reliably in diverse industrial and commercial environments.

The compact dimensions (4.6 mm length × 2.3 mm height) facilitate easy integration into compact PCB designs, commonly used in power supplies, voltage reference circuits, and protection devices. RoHS compliance guarantees that the diode meets environmental protocols by minimizing hazardous substances.

This component is ideal for use in electronics manufacturing, industrial equipment, instrumentation, and power management systems where stable voltage regulation is critical. The DO-214AC package supports automated surface mounting processes for efficient production.

Nominal Zener voltage of 5.1 V with ±5% tolerance. Maximum power dissipation of 1 W. Surface mount DO-214AC package with 2 pins. Test current rating of 100 mA. Maximum Zener impedance of 5 Ω. Maximum reverse leakage current of 2.5 μA.

Operating temperature range from -65°C to 150°C. RoHS compliant for environmental safety. Compact size: 4.6 mm length, 2.3 mm height. Explore the full range of Zener Diodes at EnvMart for your semiconductor and electronic component needs.
