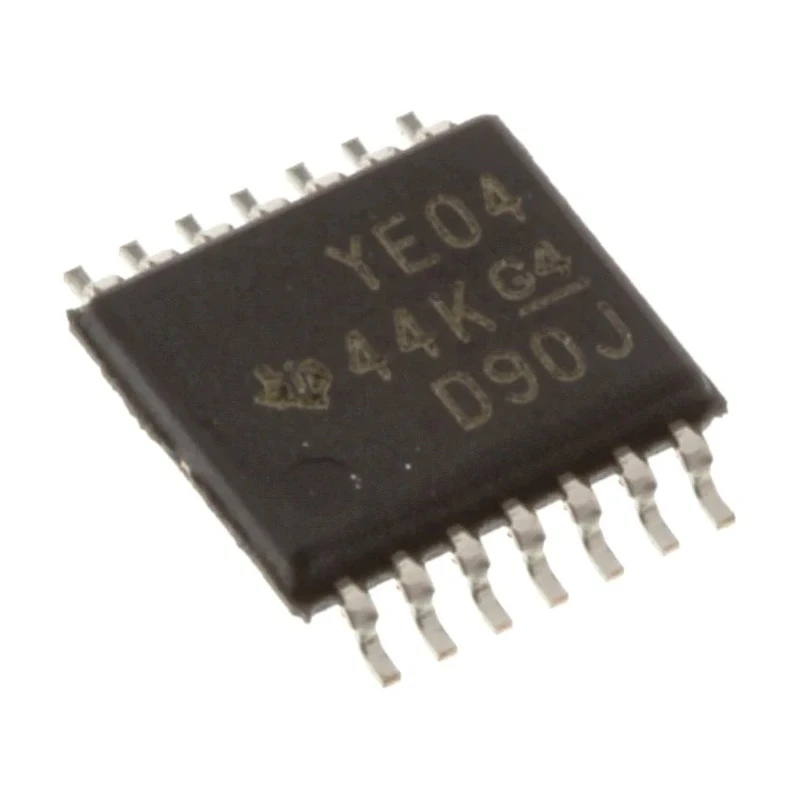

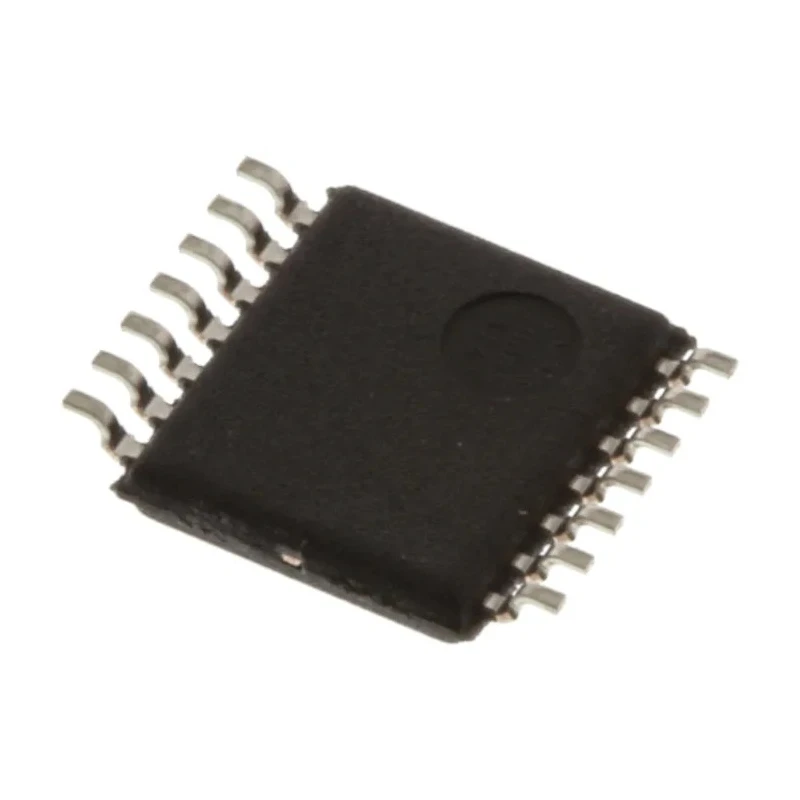

Texas Instruments Voltage Level Shifter, Bi-Directional Voltage Level Translator, 14-Pin TSSOP TXB0104PWR

Texas Instruments TXB0104PWR is a high-performance bi-directional voltage level shifter designed for interfacing between different voltage systems in electronic circuits. This voltage level translator supports two voltage levels and comes in a 14-pin Thin Shrink Small Outline Package (TSSOP), making it suitable for surface-mounted applications where space saving is critical.

The device supports a minimum supply voltage of 1.2 volts and can handle up to 5.5 volts, allowing it to work efficiently in a variety of logic environments. With a maximum propagation delay time of just 4 nanoseconds at specified capacitance loads, it ensures fast and reliable signal translation with minimal latency.

Designed with two voltage translation elements per chip, the TXB0104PWR delivers three-state outputs which make it versatile for use in bus-oriented systems and multiplexed signal environments. It operates reliably across a wide temperature range from -40°C to 85°C, suitable for industrial and commercial electronics.

The compact dimensions of 5 mm in length and 1.15 mm in height provide an excellent solution for dense PCB layouts. Despite its small form factor, it meets industry standards for performance though it does not carry specific automotive certifications.

This level shifter is ideal for applications in digital logic level interfacing, microcontroller signal level adjustments, and other semiconductor circuits requiring voltage compatibility. It can be widely used in industrial, manufacturing, laboratory, and electronic product development environments.

Offers bi-directional voltage translation with 2 elements per chip. Features 3-state output for flexible bus control. Operates at supply voltages between 1.2V and 5.5V. Maximum propagation delay time is 4 ns for fast switching.

Compact 14-pin TSSOP surface mount package. Wide operating temperature from -40°C to 85°C. Low-level output current max 20μA and high-level max -0.02mA. Compact size: 5mm length, 1.15mm height. No automotive standard certifications.

Part of the TXB0104 series voltage level shifters.
