onsemi 200 V 1 A Diode Switching 2-Pin DO-214AC ES1D

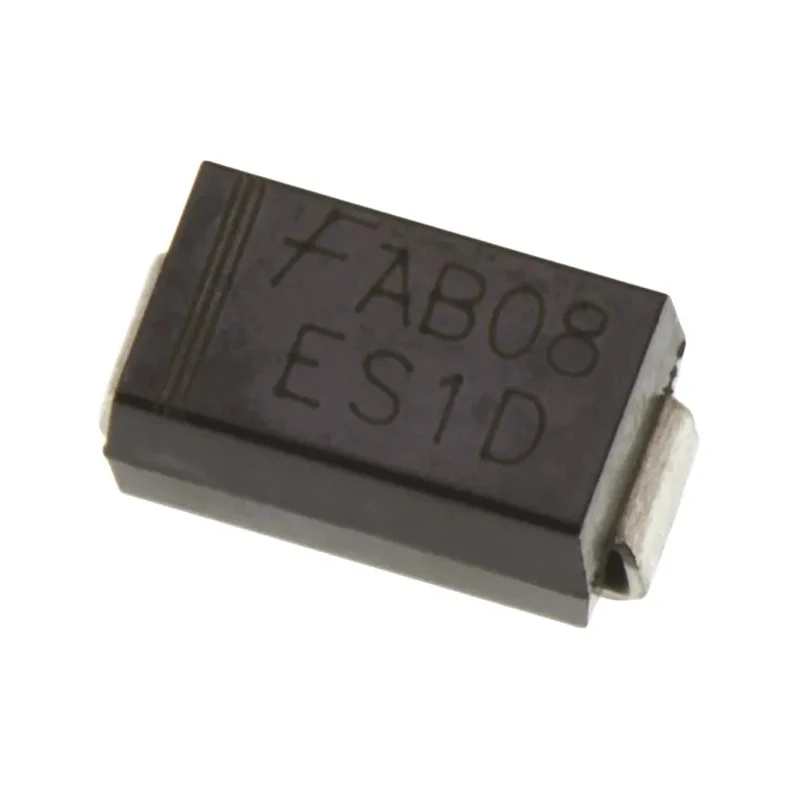

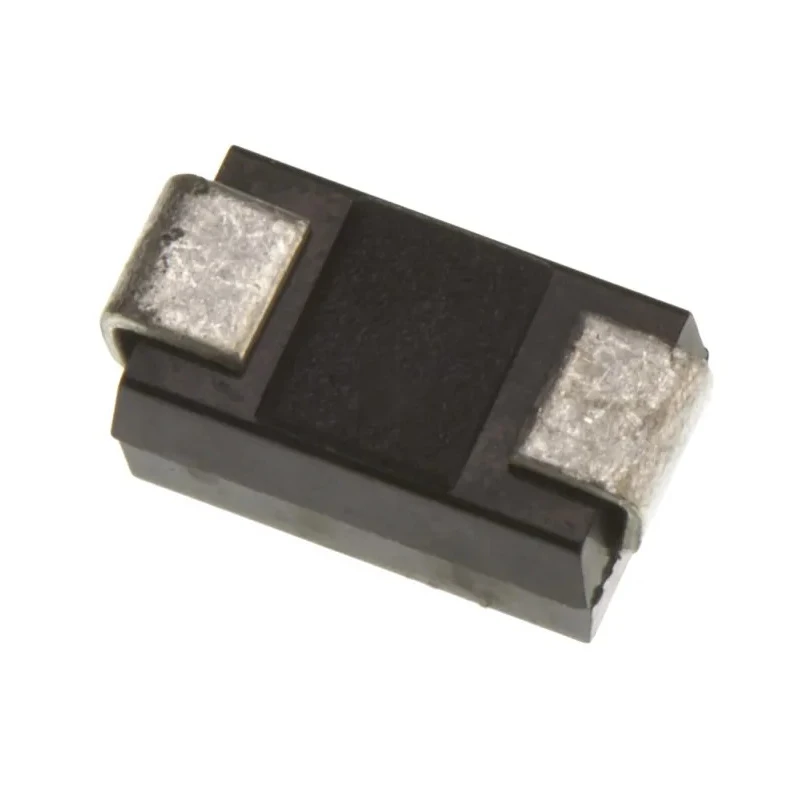

onsemi ES1D is a surface mount switching diode designed for efficient high-speed switching and rectification in electronic circuits. It features a DO-214AC 2-pin package optimized for surface mounting, suitable for dense circuit board layouts.

The diode offers a maximum continuous forward current of 1 ampere, ensuring it can handle moderate load conditions reliably. Its peak reverse repetitive voltage capability of 200 volts allows it to block high voltage peaks, making it applicable in numerous semiconductor electronic designs.

With a low forward voltage of 920 millivolts, power dissipation is minimized during operation, aiding in energy efficiency. The fast switching time of 15 nanoseconds enhances performance in switching power supplies and signal rectification applications.

The diode operates effectively in harsh temperature environments ranging from -50°C to 150°C, supporting automotive and industrial temperature requirements. Its ability to withstand peak non-repetitive forward surge currents of up to 30 amperes provides robustness during transient events.

The ES1D diode is a single diode device with 2 pins, ideal for compact integration. It is compliant with RoHS directives, ensuring environmentally safe manufacturing standards. Its compact physical size with dimensions of 4.75 mm length, 2.95 mm width, and 2.2 mm height suits space-constrained electronic designs.

Surface mount DO-214AC package ensures compact PCB integration. Maximum continuous forward current rating of 1 ampere. Peak reverse repetitive voltage of 200 volts allows for high voltage blocking. Fast switching capability with peak reverse recovery time of 15 nanoseconds.

Wide operating temperature range from -50°C to 150°C for robust performance. Low forward voltage drop of 920 millivolts reduces power loss. High surge current capability up to 30 amperes for transient conditions. Single diode configuration with 2 pins provides easy circuit implementation.

Complies with RoHS standards ensuring environmental safety. Compact dimensions: length 4.75 mm, width 2.95 mm, height 2.2 mm.

This diode is widely used in industrial electronics, telecommunications, power supplies, automotive electronic systems, and consumer electronics requiring fast switching and reliable rectification. onsemi’s ES1D offers a trusted solution for quality and performance in Semiconductor Diode applications.
