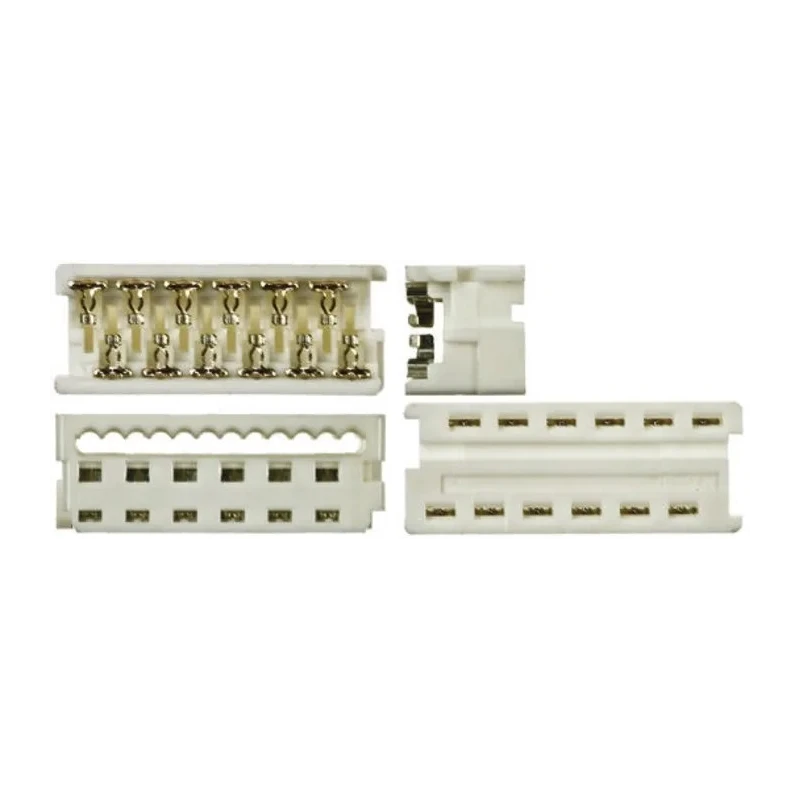

Molex 8-Way IDC Connector Female for Cable, 2 Row 90327-0360
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.2A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Picoflex |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 8 contact points arranged in 2 rows for reliable connectivity.
- Constructed with phosphor bronze contacts and a polyethylene terephthalate housing.
- Right angle orientation with tin over nickel plating ensures durable contact.
- Operates efficiently within temperature range of -40°C to 105°C.
- Unshrouded design for easy cable mounting and IDC termination type.
- Part of the Picoflex series, offering space-saving and vibration resistance.
- Ideal for automotive and consumer electronics applications.
- Manufactured in Ireland with adherence to UL and CSA standards.
Product Description
The Molex 90327-0360 IDC Connector is an 8-way female connector designed for cable mounting with two rows of contacts. It features a right angle orientation and is part of the Picoflex series, known for space-saving design and reliable performance in high-density applications.
This connector supports electrical currents up to 1.2 amps and voltages up to 250V AC, with operating temperatures ranging from -40°C up to 105°C. The contact points are made of phosphor bronze and plated with tin over nickel to enhance corrosion resistance and ensure connection reliability. The housing is constructed from durable polyethylene terephthalate, providing mechanical strength and insulation.
The Picoflex IDT (Insulation Displacement Technology) single-piece UL94V-0 housings ensure precise cable positioning with a 4-point contact design, which delivers excellent electrical and mechanical reliability. Thanks to its compact right angle form factor with a low mated height, this connector is ideal for automotive and consumer electronics where space is critical.
The unshrouded design permits easy cable mounting and IDC termination, making it suitable for efficient production assembly. This connector offers 50% space savings compared with traditional pitches, enhanced polarization features, integral strain relief, and high resistance to vibration and shock commonly experienced in harsh environments.
Eight contacts arranged in two rows allow secure and efficient connections. Phosphor bronze contacts with tin over nickel plating ensure durability and conductivity. Polyethylene terephthalate housing provides insulation and mechanical support.
Right angle orientation helps in tight installation spaces and cable management. Reliable operation over a wide temperature range from -40°C to 105°C. Compatible with Picoflex series tooling for streamlined manufacturing.
Manufactured in Ireland, meeting UL (E29179) and CSA (LR19980-181) quality standards.
This connector is widely used in electronic components, power and connectors sectors for PCB wire housing and is essential for designers requiring compact, high-density IDC connectors with precise mechanical and electrical specifications.
Explore more IDC Connectors and electronic components with detailed technical documentation available to assist in design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 250V AC.
This model can handle electrical currents up to 1.2 amps.
It operates efficiently within a temperature range of -40°C to 105°C.
The contacts are made of phosphor bronze, while the housing is constructed from polyethylene terephthalate.
This connector features 8 contact points arranged in 2 rows.
It uses insulation displacement contact (IDC) termination type.
The connector has a right angle orientation, which is beneficial for tight installation spaces.
Yes, it is ideal for automotive and consumer electronics applications due to its compact design and reliability.
The pitch of this connector is 1.27mm.
This connector is manufactured in Ireland.
The contacts are plated with tin over nickel to enhance corrosion resistance.
Yes, it adheres to UL and CSA standards, ensuring quality and reliability.
