Semikron Danfoss Dual Thyristor Module 1600 V, 137 A, 150 mA, 4.7 kA, 1.8 V SKKT 132/16 E

Semikron Danfoss SKKT 132/16 E is a dual Thyristor Module, classified under SCR type thyristors. This module offers a rated average on-state current (Irms) of 137 A and a repetitive peak reverse voltage (VDRM) of 1600 V, making it suitable for high power industrial applications.

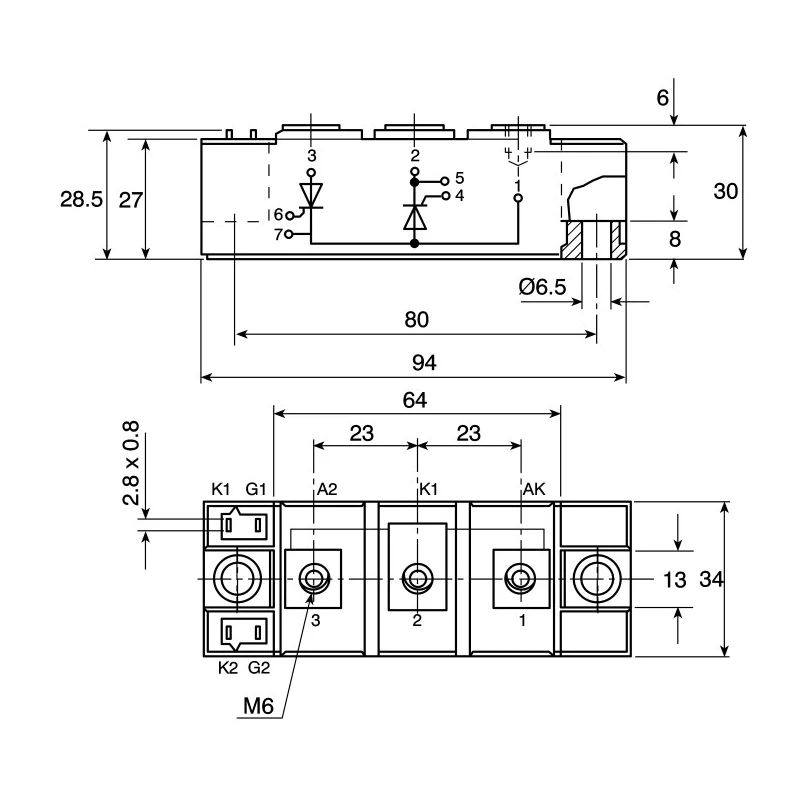

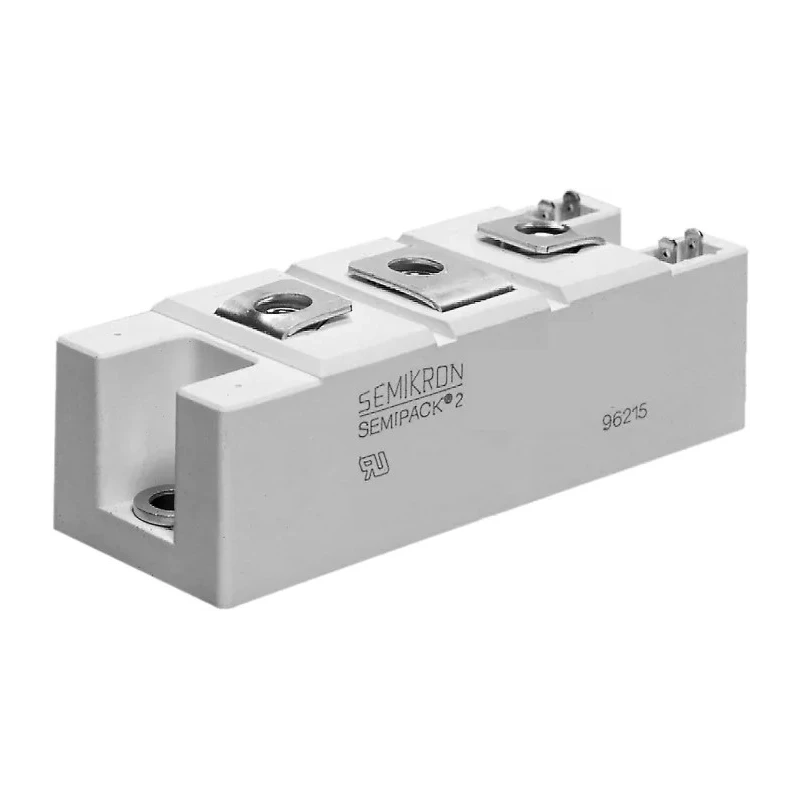

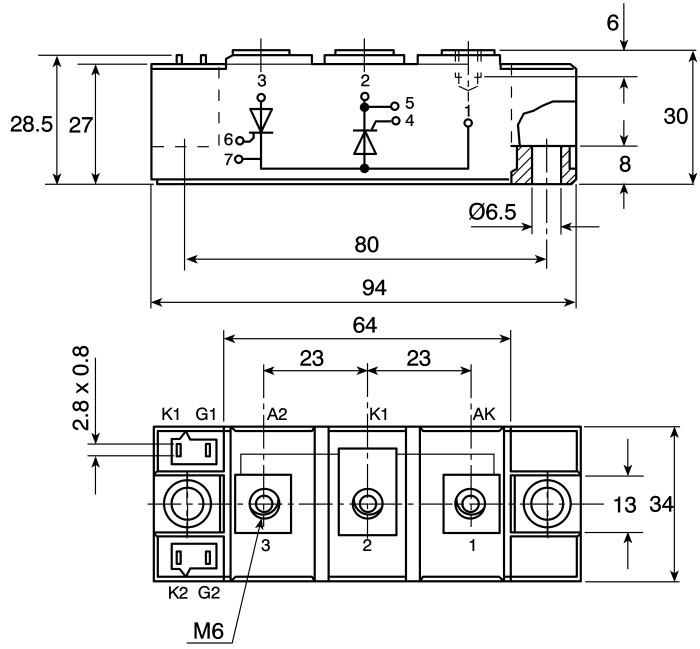

Encapsulated within the robust SEMIPACK2 package, the module is designed for panel mounting, ensuring effective thermal management and mechanical stability. With a pin count of 7, it facilitates straightforward integration within power rectification and control circuits.

Key functional ratings include a surge current rating of 4.7 kA, maximum gate trigger current of 150 mA, and maximum gate trigger voltage of 2 V. The device sustains operation within a temperature range from -40°C to 125°C, accommodating demanding environmental conditions.

Its peak on-state voltage is low at 1.8 V, improving efficiency by minimizing conduction losses. The maximum holding current is 400 mA, while the repetitive peak off-state current is maintained at 40 mA, reflecting the module's reliability in high performance duty cycles.

Thyristors like the SKKT 132/16 E serve as bistable semiconductor devices used in varied industrial applications such as battery chargers, welders, regulated power supplies, and motor speed and temperature control systems.

These modules are UL recognized components, underscoring their compliance with industry safety standards. Offers peak surge current capacity of 4.7 kA ensuring high reliability under transient conditions. Features a maximum gate trigger current of 150 mA for precise control.

Designed with a SEMIPACK2 package suitable for panel mounting and effective heat dissipation. Operates reliably between temperatures of -40°C to 125°C, suitable for harsh environments. Includes 7 pin connections facilitating integration into power electronic circuits.

Maximum gate trigger voltage is rated at 2 V ensuring stable operation. Low peak on-state voltage of 1.8 V contributes to efficient performance. Repetitive peak reverse voltage of 1600 V and off-state peak current of 40 mA ensure durability.
