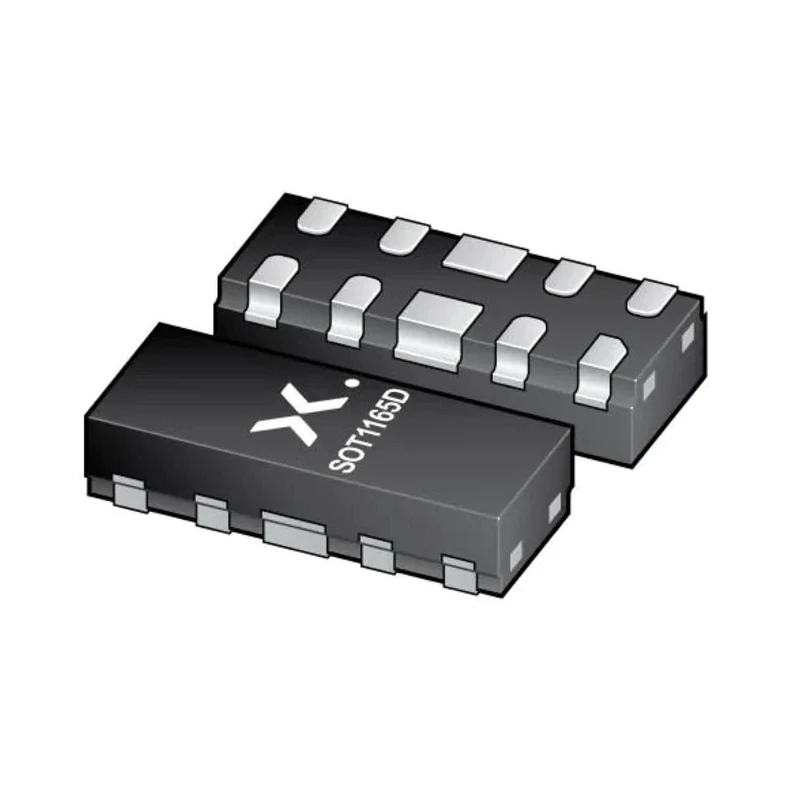

Nexperia Bi-Directional ESD Protection Diode PESD4USB5B-TTSX, Surface Mount DFN2510D Package, 10-Pin, 6 V Breakdown Voltage
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC61000-4-2 Level 4, ISO10605 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for high-speed interfaces such as Super Speed USB 3.2 at 10 Gbps and HDMI.
- Features a low line capacitance of 0.5 pF per channel for signal integrity.
- ESD protection level up to ±15 kV ensures device safety.
- Employs matched 0.5 mm trace spacing and side-wettable flanks for optimized PCB assembly.
- Excellent dynamic resistance of 0.4 Ω combined with deep snap-back for system protection.
- Operates reliably within a temperature range of -55°C to 150°C.
- Complies with IEC61000-4-2 Level 4, ISO10605, and automotive AEC-Q101 standards.
- Maximum peak pulse current rating of 7 A for transient suppression.
Product Description
The Nexperia PESD4USB5B-TTSX is a bi-directional ESD Protection Diode designed to safeguard sensitive electronic components against damaging electrostatic discharges. Housed in a compact 10-pin DFN2510D surface mount package, this device is engineered for applications requiring low capacitance and high-speed data transmission protection.
Its minimal line capacitance of 0.5 pF per channel ensures signal integrity in interfaces such as Super Speed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, eSATA, LVDS, and Gigabit Multimedia Serial Link (GMSL) serializer/deserializer systems. The device offers exceptional ESD protection up to ±15 kV, providing robust defense against transient voltage spikes.
The diode features outstanding system protection through an extremely deep snap-back mechanism combined with a low dynamic resistance of 0.4 Ω. The matched 0.5 mm trace spacing, along with side-wettable flanks, enables efficient automated optical inspection (AOI) and design-friendly signal routing for optimized PCB layouts.
Operating reliably across a wide temperature range from -55°C to 150°C, the PESD4USB5B-TTSX complies with IEC61000-4-2 Level 4, ISO10605 standards for ESD immunity, as well as the stringent automotive AEC-Q101 standard, making it well-suited for automotive applications including infotainment systems, A/V monitors, cameras, and displays.
The device is rated for a maximum peak pulse current of 7 A, ensuring effective transient suppression for sensitive electronics. Its dimensions of 2.5 mm length, 1 mm width, and 0.75 mm height allow for compact PCB integration, conserving space in design layouts.
Robust ESD protection for high-speed data interfaces. Low capacitance preserves signal quality. Wide operating temperature range suitable for automotive environments. Compliance with international ESD and automotive standards.
Compact surface mount package for flexible PCB design.
This product is ideal for industrial, automotive, and telecommunications sectors requiring reliable surge and ESD protection in compact form factors. Explore more semiconductors and protection components in EnvMart's extensive electronics catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breakdown voltage of this model is 6 V.
It has a maximum peak pulse current rating of 7 A for transient suppression.
This unit operates reliably within a temperature range of -55°C to 150°C.
It features a low line capacitance of 0.5 pF per channel, which helps maintain signal integrity.
It complies with IEC61000-4-2 Level 4, ISO10605, and the automotive AEC-Q101 standards.
The dimensions are 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
It is housed in a compact 10-pin DFN2510D surface mount package.
It has an excellent dynamic resistance of 0.4 Ω, which contributes to system protection.
This model is designed for high-speed interfaces such as Super Speed USB 3.2, HDMI 2.0, Display Port, and others.
The maximum reverse leakage current is specified at 100 nA.
The clamping voltage (VC) for this unit is 5.5 V.
It employs matched 0.5 mm trace spacing and side-wettable flanks for optimized PCB assembly and design-friendly routing.
