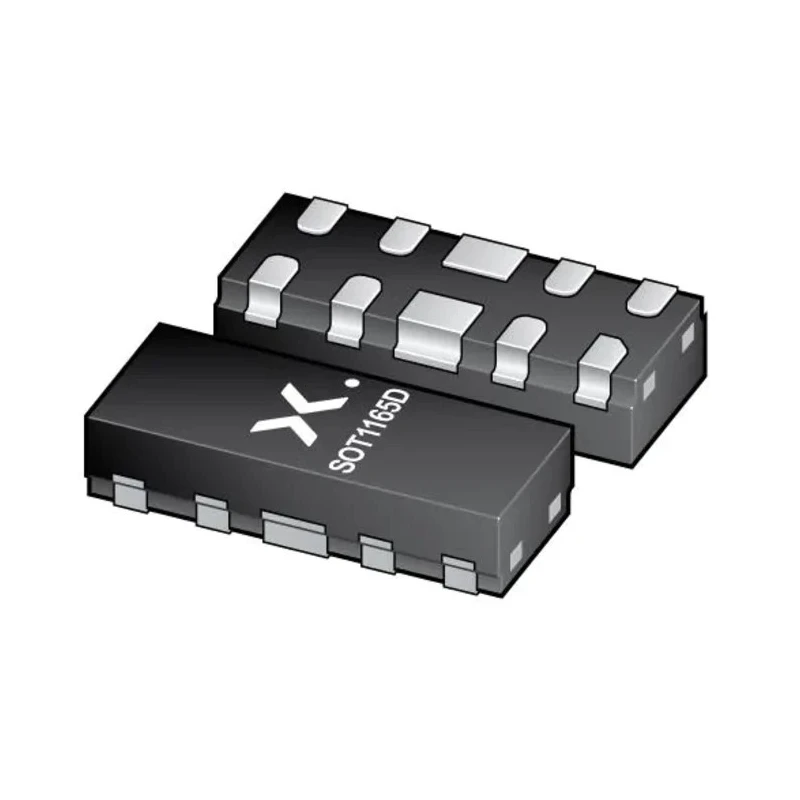

Nexperia Uni-Directional ESD Protection Device, 10-Pin DFN2510D PESD4USB3U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB3U |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for electrostatic discharge protection in high-speed USB and video interfaces.
- Miniature 10-pin DFN2510D surface mount package with 2.5 x 1 x 0.75 mm dimensions.
- Minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 3.3V for robust performance.
- Maximum peak pulse current handling of 7A with clamping voltage at 3.5V.
- Wide operating temperature range from -55°C to 150°C suited for automotive applications.
- Meets automotive standard AEC-Q101 and IEC61000-4-2 Level 4 for ESD robustness.
- Matched 0.5 mm trace spacing and side-wettable flanks for simplified PCB assembly.
- Extremely low per-channel line capacitance of 0.5 pF to maintain signal integrity.
Product Description
Nexperia PESD4USB3U-TTSX is a uni-directional ESD protection device designed to safeguard high-speed data lines, including USB 2.0 and SuperSpeed USB 3.2 (10 Gbps), HDMI 2.0, Display Port, eSATA, and low-voltage differential signaling (LVDS) interfaces. The device comes in a compact 10-pin DFN2510D surface mount package measuring 2.5mm in length, 1mm in width, and 0.75mm in height, enabling efficient PCB space usage.
Equipped to handle electrostatic discharge events with a protection level up to ±15 kV, it features a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 3.3V. Its maximum peak pulse current rating is 7A with a clamping voltage of 3.5V, ensuring effective suppression of transient voltage spikes. The device’s extremely low line capacitance of 0.5 pF per channel ensures minimal signal distortion for high-speed data applications.
Built to operate reliably from -55°C to 150°C, it meets stringent automotive requirements with AEC-Q101 qualification, making it suitable for automotive infotainment display, cameras, and gigabit multimedia links. It also complies with international standards ISO10605 and IEC61000-4-2 Level 4 for ESD robustness.
The device's design includes matched 0.5 mm trace spacing and side-wettable flanks to simplify PCB assembly and optimize signal routing. Typical uses include protecting USB ports, HDMI interfaces, vehicle display systems, and high-speed serial data lines in automotive, industrial, and consumer electronic environments.
Uni-Directional ESD protection for high-speed data lines. 10-pin DFN2510D surface mount package with compact dimensions. Minimum breakdown voltage: 6V; maximum reverse stand-off voltage: 3.3V. Peak pulse current capacity of 7A with clamping at 3.5V voltage.
Operating temperature range from -55°C up to 150°C for automotive grade applications. Meets AEC-Q101 automotive standard and IEC61000-4-2 Level 4 ESD tests. Designed features enabling easy PCB integration including matched 0.5 mm trace spacing.
Low line capacitance of 0.5 pF ensures minimal signal interference.
This product is ideal for industrial, automotive, telecommunications, and consumer electronics sectors requiring reliable ESD protection at high data transmission speeds. Explore more high-quality semiconductors and ESD devices on EnvMart to enhance your electronic system protection.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current rating is 7A, ensuring effective suppression of transient voltage spikes.
This model comes in a 10-pin DFN2510D surface mount package with dimensions of 2.5mm in length, 1mm in width, and 0.75mm in height.
It operates reliably within a temperature range from -55°C to 150°C, making it suitable for automotive applications.
The minimum breakdown voltage is 6V, providing robust performance for ESD protection.
It meets the AEC-Q101 automotive standard, ensuring compliance for automotive applications.
This ESD protection device is designed for high-speed data lines, including USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, and Display Port interfaces.
The clamping voltage is 3.5V, which helps in managing voltage spikes during ESD events.
The device features an extremely low per-channel line capacitance of 0.5 pF, which helps maintain signal integrity in high-speed data applications.
The maximum reverse stand-off voltage is 3.3V, allowing for effective protection in various applications.
It complies with international standards ISO10605 and IEC61000-4-2 Level 4 for ESD robustness, ensuring high performance in ESD protection.
It includes matched 0.5 mm trace spacing and side-wettable flanks, simplifying PCB assembly and optimizing signal routing.
This model is suitable for protecting USB ports, HDMI interfaces, vehicle display systems, and high-speed serial data lines in automotive, industrial, and consumer electronics sectors.
