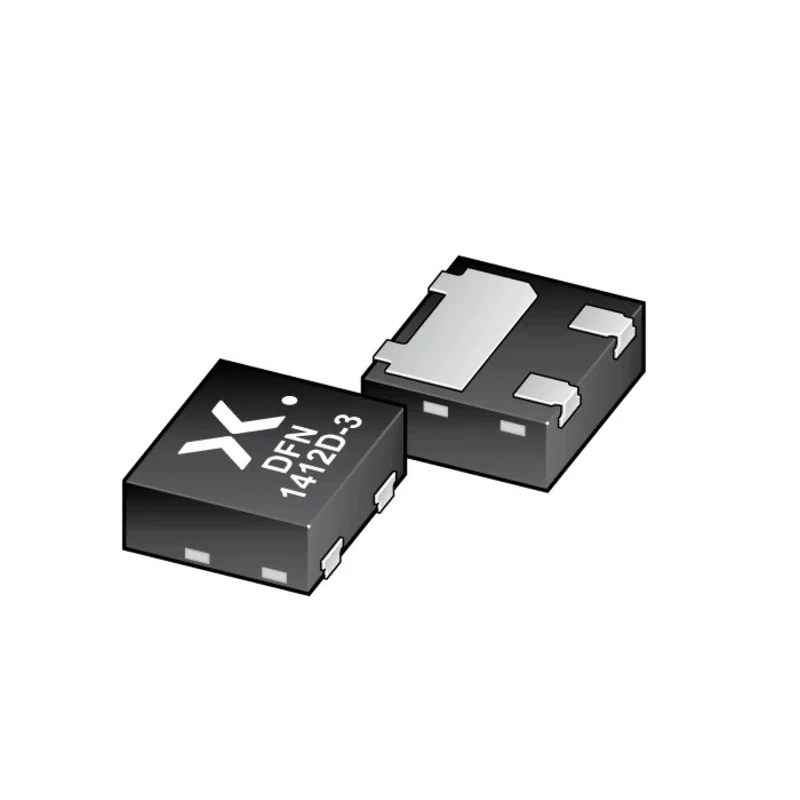

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 27 V Reverse Stand-Off, 2.5 A Peak Pulse PESD2CANFD27V-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD27V-QCZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD27V-QC |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Bi-directional ESD protection diode with a 3-pin DFN1412D-3 surface mount package.
- Minimum breakdown voltage of 28 V ensures circuit safety against voltage spikes.
- Maximum reverse stand-off voltage of 27 V and clamping voltage of 44 V for reliable surge protection.
- Maximum peak pulse current rating of 2.5 A suits transient voltage suppressions.
- Ultra-small dimensions of 1.4 mm length, 1.2 mm height, and 0.48 mm width fit dense PCB layouts.
- Wide operating temperature range from -65°C to 150°C for automotive and industrial applications.
- Low capacitance of 6 pF reduces signal distortion in sensitive high-speed data lines.
- AEC-Q101 qualified for automotive-grade quality and reliability.
Product Description
Nexperia PESD2CANFD27V-QCZ Bi-Directional ESD Protection Diode in a 3-pin DFN1412D-3 leadless surface mount device offers reliable transient voltage suppression designed for automotive and industrial electronics. It provides robust electrostatic discharge protection to automotive in-vehicle network bus lines and sensitive semiconductor components.
This device features a minimum breakdown voltage of 28 V, maximum reverse stand-off voltage of 27 V, and a peak pulse current rating of 2.5 A with a low clamping voltage of 44 V, ensuring effective absorption of voltage spikes. The ultra-compact DFN1412D-3 package (1.4 mm length, 1.2 mm height, 0.48 mm width) allows integration into space-constrained PCB designs with side wettable flanks for reliable soldering.
With a low capacitance of 6 pF, it minimizes signal interference, making it well suited for high-speed data lines. The device operates reliably over a wide temperature range from -65°C to 150°C and holds AEC-Q101 qualification, confirming its suitability for automotive applications.
Manufactured in compliance with IEC 61000-4-2 electrostatic discharge standards and RoHS directives, this protection diode ensures high quality and regulatory conformity. It is ideal for protecting electronics in industrial, automotive, telecommunications, and consumer electronics sectors.
Bi-directional ESD diode in DFN1412D-3 package. Minimum breakdown voltage Vbr: 28 V. Maximum reverse stand-off voltage VRWM: 27 V. Maximum peak pulse current Ippm: 2.5 A. Low clamping voltage VC: 44 V. Low capacitance: 6 pF.
Operating temperature range: -65°C to 150°C. AEC-Q101 automotive qualification. Compliant with IEC 61000-4-2 and RoHS. Compact size for space-saving PCB layout. Explore EnvMart’s wide range of semiconductor protection devices for high reliability and industry-compliant circuit safeguarding solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 27 V.
It has a maximum peak pulse current rating of 2.5 A.
The clamping voltage for this diode is 44 V.
The DFN1412D-3 package has dimensions of 1.4 mm in length, 1.2 mm in height, and 0.48 mm in width.
The operating temperature range is from -65°C to 150°C.
Yes, it is AEC-Q101 qualified, confirming its suitability for automotive applications.
The minimum breakdown voltage is 28 V.
It features a low capacitance of 6 pF, which helps reduce signal distortion.
This device is compliant with IEC 61000-4-2 and RoHS directives.
This model has a 3-pin configuration.
It is designed for surface mounting.
It is suitable for protecting automotive in-vehicle network bus lines and sensitive semiconductor components in various sectors including industrial and telecommunications.
