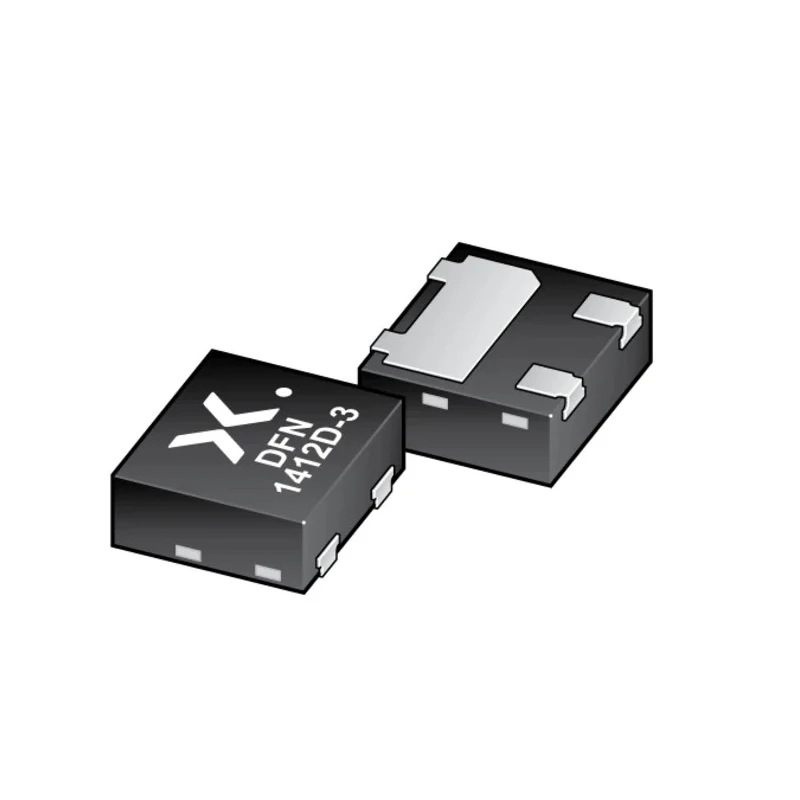

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3 27V VRWM 1.8A IPP PESD2CANFD27U-QCZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3 27V VRWM 1.8A IPP PESD2CANFD27U-QCZ

Name: Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3 27V VRWM 1.8A IPP PESD2CANFD27U-QCZ
Brand: Nexperia
SKU: 309651
Price: 14.2 INR
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.2mm
Length	1.4mm
Model	PESD2CANFD27U-QCZ
Width	0.47mm
Mount Type	Surface
Series	PESD2CANFD27U-QC
Maximum Operating Temperature	150°C
Package Type	DFN1412D-3
Minimum Operating Temperature	-65°C
Standards/Approvals	IEC 61000-4-2, RoHS
Pin Count	3
Clamping Voltage VC	45V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	28V
Maximum Reverse Stand-off Voltage Vwm	27V
Maximum Peak Pulse Current Ippm	1.8A
Maximum Reverse Leakage Current	50nA

Key Features

Provides ESD protection up to 15 kV according to IEC 61000-4-2 standards.
Features a low clamping voltage of 34 V at 1 A peak pulse current.
Equipped with ultra-low capacitance of 4.0 pF for high-speed data line protection.
Utilizes a surface-mounted 3-pin DFN1412D-3 package with wettable flanks.
Operates over a temperature range from -65°C to 150°C suitable for automotive conditions.
Automotive grade with AEC-Q101 qualification ensuring durability and reliability.
Has a maximum reverse stand-off voltage of 27 V and a maximum peak pulse current of 1.8 A.

Product Description

Nexperia PESD2CANFD27U-QCZ is a bi-directional ESD Protection Diode designed for safeguarding sensitive electronic circuits, especially automotive In-vehicle network bus lines, against electrostatic discharge damage.

Housed in an ultra-small surface-mounted 3-pin DFN1412D-3 (SOT8009) package with side wettable flanks, this diode provides robust protection with a maximum reverse stand-off voltage of 27 V and a low clamping voltage of 34 V at 1 A peak pulse current, ensuring minimal disturbance to signal integrity.

Its ultra-low capacitance of 4.0 pF makes it ideal for high-speed data line applications, maintaining signal quality while providing ESD protection up to 15 kV per IEC 61000-4-2 and ISO 10605 standards.

The diode operates reliably over a wide temperature range, from -65°C to 150°C, making it suitable for harsh automotive environments and industrial electronic applications. It is fully compliant with automotive standard AEC-Q101, guaranteeing performance and longevity.

With compact dimensions of 1.4 mm (length) x 0.47 mm (width) x 1.2 mm (height), it facilitates space-saving PCB design. The package offers surface mount technology (SMT) compatibility, enhancing manufacturing efficiency.

Provides ESD protection to automotive network bus lines. Low clamping voltage of 34 V at 1 A peak pulse current. Low capacitance of 4.0 pF suitable for high-speed data signals. Wide operating temperature range from -65°C to 150°C.

AEC-Q101 qualified for automotive applications. Small 3-pin DFN1412D-3 surface-mount package. Maximum reverse stand-off voltage 27 V and peak pulse current 1.8 A. Compliant with IEC 61000-4-2 and ISO 10605 ESD standards.

This diode is widely used in automotive, industrial, and commercial electronic circuits to protect against damaging ESD events, ensuring product reliability and compliance with industry standards. Its integration enhances device protection while minimizing PCB real estate.
