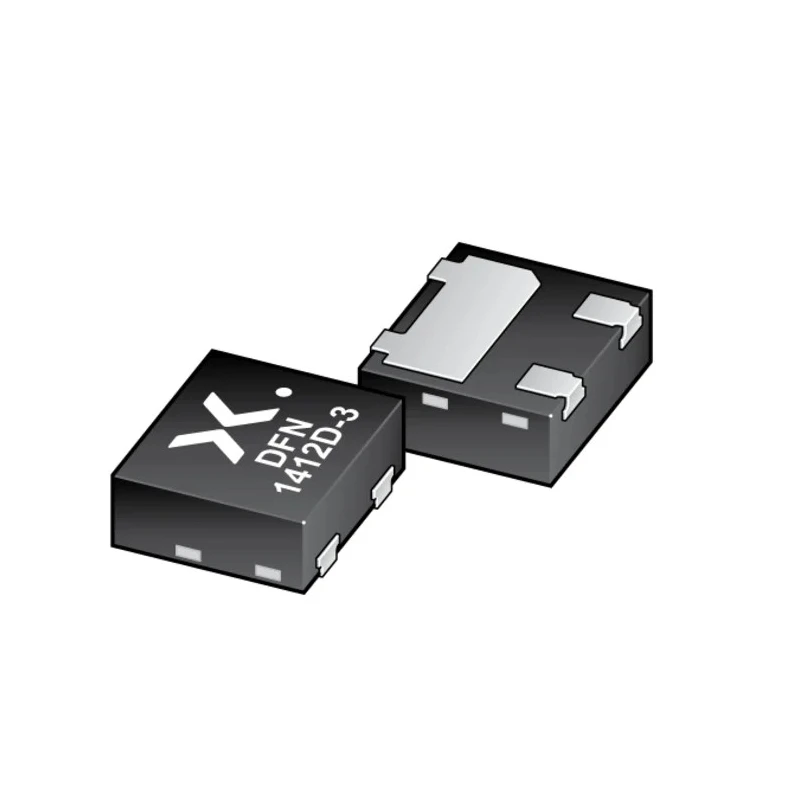

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1412D-3, 27 V Reverse Stand-off Voltage, 1.8 A Peak PESD2CANFD27U-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD27U-QCZ |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD2CANFD27U-QC |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 45V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 1.8A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Offers bi-directional electrostatic discharge protection up to 15 kV according to IEC 61000-4-2.
- Features ultra low capacitance of approximately 4.0 pF suitable for high-speed data lines.
- Compact DFN1412D-3 (SOT8009) package with side wettable flanks for reliable PCB mounting.
- Clamping voltage of 45 V ensuring effective suppression of transient voltage spikes.
- Operates reliably in temperatures ranging from -65°C to 150°C, meeting automotive-grade AEC-Q101 standards.
- Maximum peak pulse current rating of 1.8 A for robust surge protection.
- Designed to protect two in-vehicle network bus lines from ESD damage.
- Meets RoHS compliance and IEC standards for quality assurance.
Product Description
Nexperia PESD2CANFD27U-QCZ is a bi-directional electrostatic discharge (ESD) protection diode housed in a compact 3-pin DFN1412D-3 surface-mount package. It is designed for the protection of two automotive in-vehicle network bus lines, effectively safeguarding sensitive electronics from damage caused by high voltage transient surges and ESD events.
This diode offers a maximum reverse stand-off voltage of 27 V and a clamping voltage of 45 V, ensuring transient voltage spikes are safely limited. With a low capacitance of 4.0 pF, it allows for minimal signal distortion, making it ideal for high-speed data communication lines.
The device operates efficiently across a wide temperature range from -65°C to 150°C, meeting stringent automotive reliability requirements such as the AEC-Q101 qualification. It supports maximum peak pulse currents of up to 1.8 A, providing robust surge protection in harsh operational environments.
The DFN1412D-3 package features side wettable flanks that facilitate high-quality solder joints and improved visual inspection during PCB assembly. It is RoHS compliant and conforms to IEC 61000-4-2 standards, guaranteeing performance and environmental safety.
Common applications include automotive, industrial, and communication systems requiring reliable ESD and surge protection to enhance the longevity and stability of electronic components.
Offers bi-directional electrostatic discharge protection up to 15 kV as per IEC 61000-4-2 standards. Ultra low capacitance of 4.0 pF preserves signal integrity for sensitive data lines. Surface mount DFN1412D-3 package ensures space-saving design and robust mechanical stability.
High-temperature operation from -65°C to 150°C suitable for automotive environments. Compliance with automotive AEC-Q101 standard for high reliability. Low leakage current of 50 nA minimizes power loss in standby conditions.
Effective protection against voltage surges with 45 V clamping voltage and 1.8 A peak pulse current. RoHS compliant and meets IEC 61000-4-2 and other relevant safety standards. Explore more semiconductor components for your high-performance and reliable automotive and industrial electronic designs at EnvMart.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 27 V.
The clamping voltage is 45 V, which helps to safely limit transient voltage spikes.
It has a maximum peak pulse current rating of 1.8 A, providing robust surge protection.
The diode features an ultra-low capacitance of approximately 4.0 pF, which is suitable for high-speed data lines.
It operates reliably in temperatures ranging from -65°C to 150°C.
This model is housed in a compact 3-pin DFN1412D-3 surface-mount package.
Yes, it meets the automotive-grade AEC-Q101 standards for reliability.
The dimensions are 1.4 mm in length, 0.47 mm in width, and 1.2 mm in height.
It is RoHS compliant and conforms to IEC 61000-4-2 standards for quality assurance.
It offers bi-directional electrostatic discharge protection up to 15 kV according to IEC 61000-4-2.
The maximum reverse leakage current is 50 nA, which minimizes power loss in standby conditions.
It is designed to protect two automotive in-vehicle network bus lines from ESD damage.
