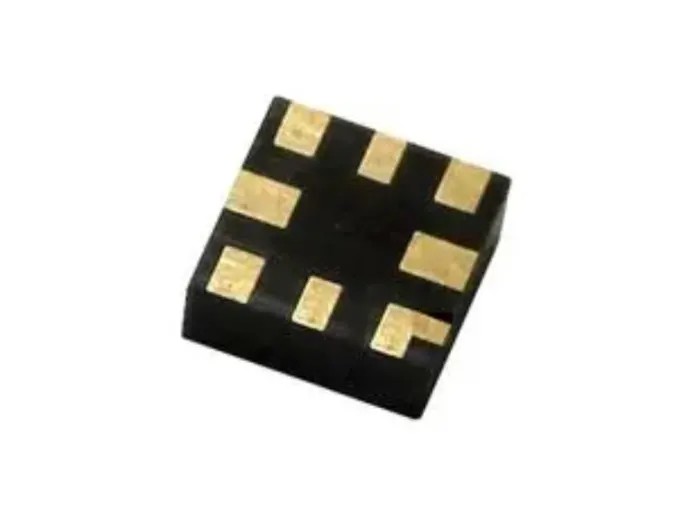

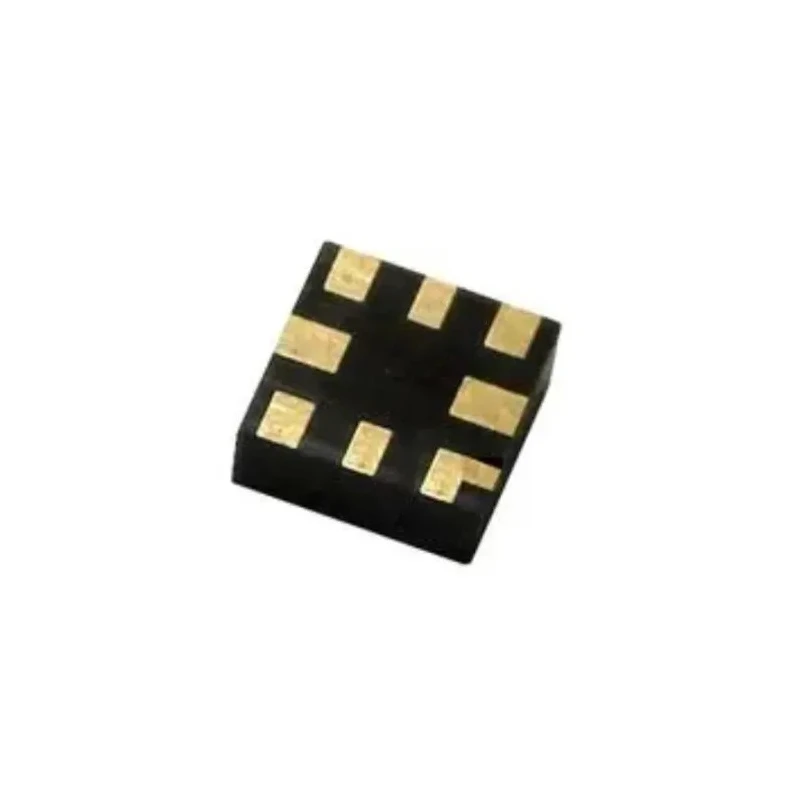

onsemi 12-bit Low Power SAR ADC 3 Channels 2 Msps Differential Input Surface Mount 8-Pin X2-DFN

Free Delivery in India | Lowest Global Shipping Charges

onsemi 12-bit Low Power SAR ADC 3 Channels 2 Msps Differential Input Surface Mount 8-Pin X2-DFN

Name: onsemi 12-bit Low Power SAR ADC 3 Channels 2 Msps Differential Input Surface Mount 8-Pin X2-DFN
Brand: onsemi
SKU: 305903
Price: 1746 INR
Availability: InStock



Category Analogue to Digital Converter Brand onsemi Condition New

Specifications

Country of Origin	India
Resolution	12 bit
Brand	onsemi
Height	0.4mm
Length	1.55mm
Model	X2-DFN
Mount Type	Surface
Sampling rate	2Msps
Series	NCD98011
Input Type	Differential
Maximum Operating Temperature	120°C
Package Type	X2-DFN
Minimum Operating Temperature	-40°C
Interface Type	SPI
Architecture	SAR
Pin Count	8
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.65V
Number of ADCs	3

Key Features

The device uses a successive-approximation register (SAR) architecture for high accuracy conversion.
It supports fully differential analog input for improved noise immunity.
Operating voltage ranges from 1.65 V to 3.6 V ensuring compatibility with low power applications.
The interface uses standard SPI protocol enabling straightforward integration with microcontrollers.
Compact 1.55 mm length and 0.4 mm height optimize PCB space requirements.
Capable of functioning in extreme conditions between -40°C to 120°C operating temperature range.
Designed for surface mount technology facilitating automated assembly processes.
Comes in a package type X2-DFN with 8 pins, suitable for space-constrained designs.

Product Description

onsemi NCD98011XMXTAG is a family of 12-bit successive-approximation register (SAR) analog-to-digital converters (ADCs) designed for low power, high-speed applications in industrial, instrumentation, and consumer electronic fields.

This device integrates 3 individual ADC channels capable of simultaneous sampling at a rate of 2 Msps each, allowing multi-channel high throughput data acquisition. The fully differential input architecture enhances signal integrity by reducing common-mode noise, ideal for precision measurement environments.

Supplied in a compact 8-pin X2-DFN surface mount package (1.55 mm length, 0.4 mm height), this ADC is space efficient for dense PCB layouts. Flexible power supply voltage range from 1.65 V to 3.6 V enables low-voltage operation and battery-powered system compatibility.

The SPI-compatible digital interface offers simplified connectivity and control with microcontrollers and DSPs, supporting standard serial communication protocols. The device operates reliably over a wide temperature span from -40°C to 120°C, suitable for automotive and industrial environments without automotive standard certification.

The SAR architecture ensures rapid conversion with low power consumption, suitable for portable instrumentation. Three ADCs permit simultaneous sampling for synchronized multi-sensor data acquisition or monitoring. Compact X2-DFN package supports high-density board designs and automated SMT assembly.

Wide supply voltage and operating temperature range make it versatile across applications. Low pin count reduces PCB routing complexity and cost. Fully differential inputs minimize noise and improve measurement accuracy.

SPI interface facilitates easy integration into existing digital control systems. Ideal for use in industrial control systems, data acquisition modules, medical instrumentation, and consumer electronics. This product is a new condition semiconductor component manufactured in India.
