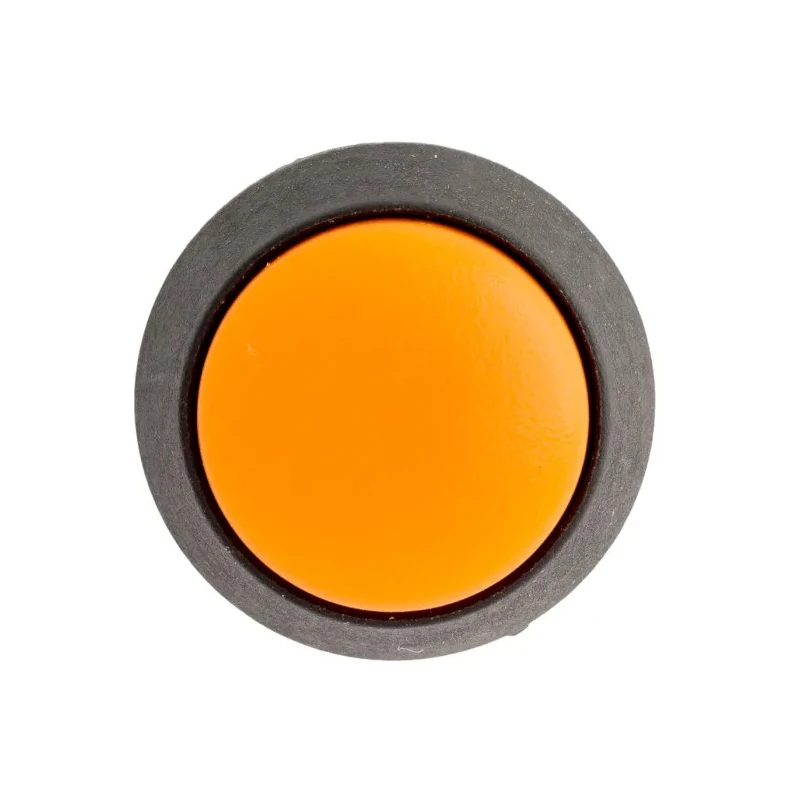

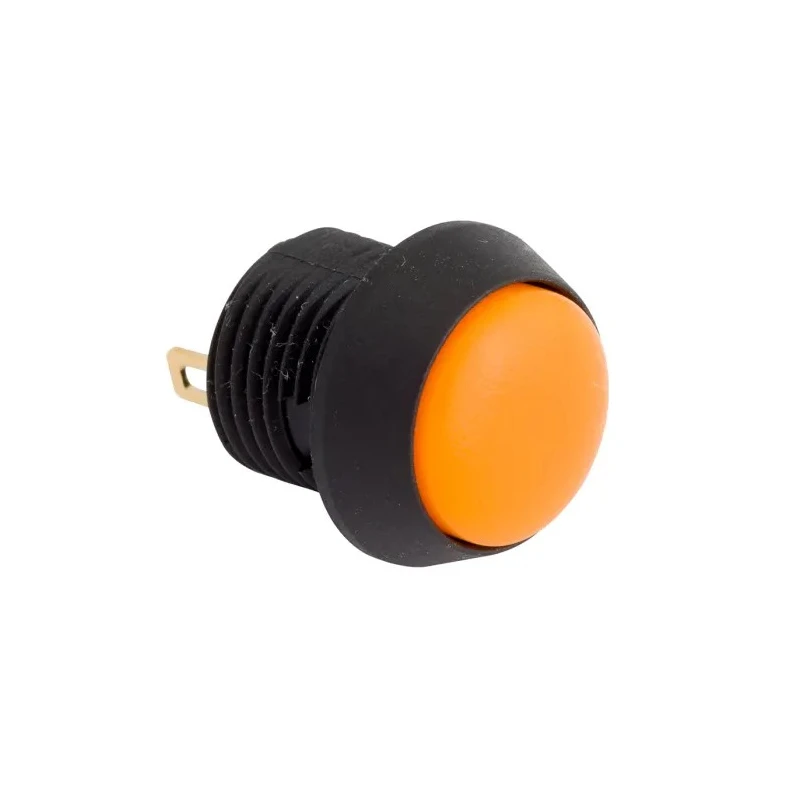

EOZ FL Series 12 mm Cutout Orange Momentary Panel Push Button Switch SPST IP67 2.5 kV ac FL12NO



Category Push Button Switches & Components Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Operating Temperature Range	-40 to +85°C
Model	FL12NO
IP Rating	IP67
Mount Type	Panel
Panel Thickness	1 mm to 6 mm
Ingress Protection	IP67
Series	FL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-40°C
Panel Cutout Size	12 mm
Terminal type	Plug-In
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Orange
Actuator Style	Cap
Switch Contact Current	65mA
Contact AC Voltage	2.5kV ac
Contact terminals	Gold plated nickel
LED terminals	Silver plated nickel

Key Features

The switch features an orange actuator color and cap style actuator.
Designed for panel mounting with a 12 mm cutout size.
Rated for 2.5 kV AC contact voltage and 65 mA switch contact current.
IP67 ingress protection ensures waterproof and dustproof performance.
Operating temperature range from -40°C to +85°C for reliable use in harsh environments.
Terminals are plug-in type, with gold plated nickel contact terminals and silver plated nickel LED terminals.
The switch is RoHS compliant and manufactured in France.
Panel thickness supported is 1 mm to 6 mm.

Product Description

The EOZ FL12NO is a momentary push button switch from the FL series, designed for panel mounting with a 12 mm cutout. It features an orange colored cap-style actuator that provides a clear and tactile operation. This SPST (Single Pole Single Throw) switch is designed to handle contact AC voltage up to 2.5 kV and carries a switch contact current of 65 mA.

Engineered for durability, the switch is IP67 rated, offering dust-tight ingress protection and resistance to water immersion, making it suitable for rugged industrial, electrical automation, and control panel applications. The operating temperature range of -40°C to +85°C supports reliable function in extreme environments.

The device uses gold plated nickel contact terminals and silver plated nickel LED terminals to ensure excellent conductivity and corrosion resistance. The plug-in type terminals (2.8 x 0.5 mm) allow easy installation and secure connections. This switch supports panel thicknesses ranging from 1 mm to 6 mm, fitting most standard control panels.

The FL series is also RoHS compliant, ensuring the use of environmentally safe materials. Manufactured in France, the switch combines quality, performance, and compliance. Orange actuator color with cap style for clear operation.

SPST configuration with momentary switch operation. IP67 ingress protection ensures durability in harsh environments. Gold and silver plated terminals for enhanced conductivity and longevity. Wide operating temperature range from -40 to +85°C.

Supports panel mounting with 12 mm cutout size and 1-6 mm thick panels. RoHS compliant and manufactured in France.

This EOZ FL12NO push button switch is suited for industrial, electrical automation, manufacturing, and control panel installations where reliable, robust switching is essential. Explore more switch options and electrical components on EnvMart to find the best fit for your application.
