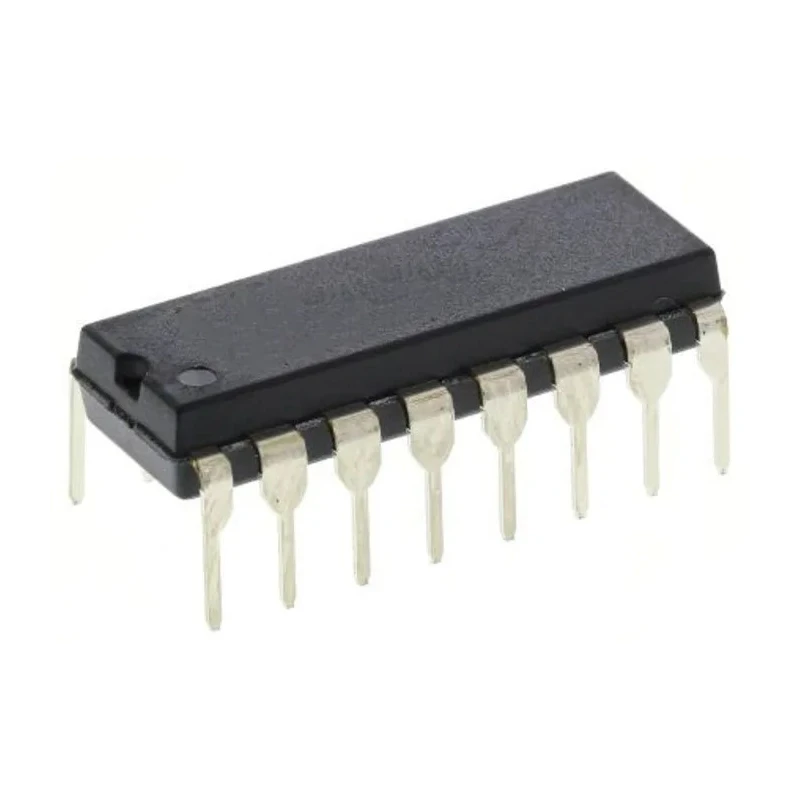

Maxim Integrated Real Time Clock 8-bit D:DM:M:Y, Phantom Clock Interface, 16-Pin PDIP Through Hole DS1315-5+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated Real Time Clock 8-bit D:DM:M:Y, Phantom Clock Interface, 16-Pin PDIP Through Hole DS1315-5+

Name: Maxim Integrated Real Time Clock 8-bit D:DM:M:Y, Phantom Clock Interface, 16-Pin PDIP Through Hole DS1315-5+
Brand: Maxim Integrated
SKU: 304695
Price: 2014.52 INR
Availability: InStock



Category Real Time Clock Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Brand	Maxim Integrated
Height	4.45mm
Length	19.43mm
Model	DS1315-5+
Width	7.87mm
Mount Type	Through Hole
Series	DS1315
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Date Format	D:DM:M:Y
Interface Type	Phantom Clock
Pin Count	16
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Time Format	HH:MM:SS:hh
RTC Memory Size	8bit
Time FormatHH	MM:SS:hh
HH	MM:SS:hh
Date FormatD	DM:M:Y
Maxim Integrated, Real Time Clock 8 bit D	DM:M:Y, 16-Pin PDIP Through Hole

Key Features

Operates with a supply voltage range of 4.5V to 5.5V supporting both +3.3V and +5V operation.
16-pin PDIP package suitable for through-hole mounting.
Includes nonvolatile controller functions for battery-backed SRAM applications.
Supports automatic leap year correction valid up to year 2100.
Operating temperature from 0°C to 70°C ensures reliable clock performance.
Phantom clock interface type for standard communication with host devices.
Ideal for industrial, commercial, and embedded electronics requiring time/date tracking.

Product Description

Maxim Integrated DS1315-5+ is a high-precision real time clock (RTC) integrated circuit featuring an 8-bit RTC memory and a 16-pin PDIP through-hole mounting package. It accurately keeps track of hundredths of seconds, seconds, minutes, hours, days, date of the month, months, and years with an automatic leap year correction valid up to the year 2100.

The device supports a wide supply voltage range from 4.5V to 5.5V, enabling operation at +3.3V or +5V, making it compatible with various embedded and industrial applications. The active battery backup feature allows for reliable SRAM retention and timekeeping during power outages, and it supports redundant battery attachment to enhance reliability.

Designed for through-hole technology, its 16-pin PDIP package with compact dimensions of 19.43mm (length) x 7.87mm (width) x 4.45mm (height) is suitable for standard PCB mounting and integration into time-sensitive electronic systems.

This real time clock IC operates reliably within the industrial temperature range of 0°C to 70°C, ensuring stability in various electrical and environmental conditions. It is ideal for use in industrial equipment, laboratory instruments, embedded systems, manufacturing process control, and general electronics requiring precise date and time functionality.

Precise 8-bit real time clock memory with D:DM:M:Y date format and HH:MM:SS:hh time format. Supports automatic leap year correction up to 2100 for accurate calendar management. Compact 16-pin PDIP through-hole package for easy PCB mounting.

Wide operating voltage range from 4.5V to 5.5V suitable for 3.3V and 5V systems. Nonvolatile battery backed SRAM functions with redundant battery support for data integrity. Operating temperature range 0°C to 70°C ensures robust industrial performance.

Phantom clock interface enables straightforward communication with microcontrollers. Compact dimensions enable integration into embedded and industrial devices.
