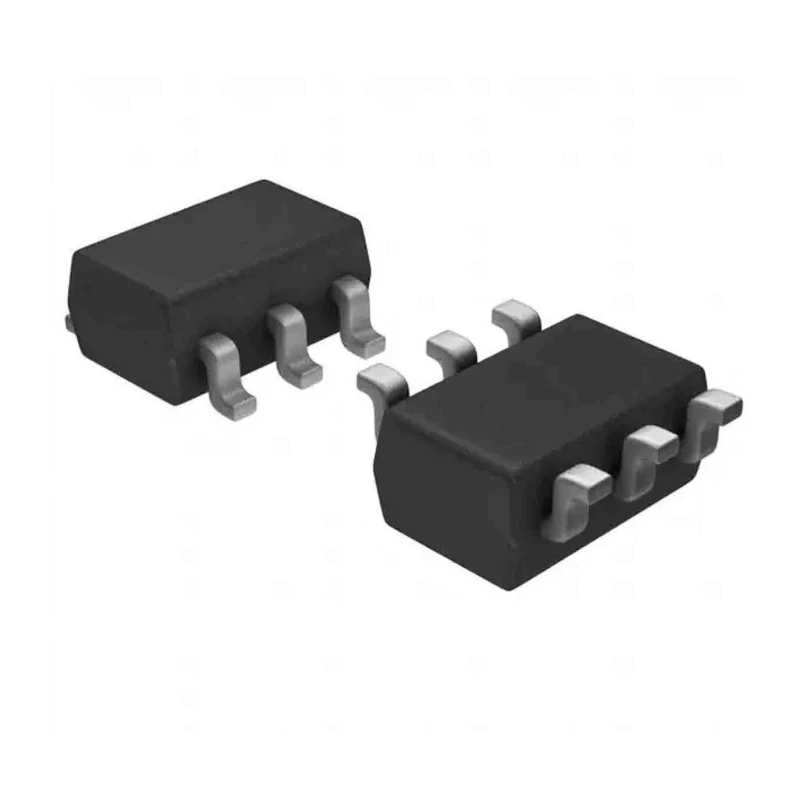

Renesas Electronics Line Transceiver Differential Bipolar CMOS TTL 6-Pin SOT-23 ISL3283EIHZ-T

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Line Transceiver Differential Bipolar CMOS TTL 6-Pin SOT-23 ISL3283EIHZ-T

Name: Renesas Electronics Line Transceiver Differential Bipolar CMOS TTL 6-Pin SOT-23 ISL3283EIHZ-T
Brand: Renesas Electronics
SKU: 305248
Price: 115.96 INR
Availability: InStock



Category Line Transceiver IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.15mm
Length	2.9mm
Model	ISL3283EIHZ-T
Width	2.8mm
Mount Type	Surface
Output type	Differential
Series	ISL3283E
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Polarity	Bipolar
IC Type	Transceiver
Pin Count	6
Maximum Supply Voltage	12V
Logic Family	CMOS
Logic Function	TTL, CMOS
Minimum Supply Voltage	-7V
Maximum Propagation Delay Time @ CL	60ns
Supply Current	500μA

Key Features

Compatible with RS-485 and RS-422 communication standards.
High ESD protection up to ±16.5kV IEC61000 standard.
Operates from 3.0V to 5.5V supply voltage range.
Low supply current of 500μA for efficient power consumption.
High data rates supporting up to 20Mbps communication speed.
Full fail-safe receiver inputs ensuring logic high output under fault conditions.
Wide common mode input voltage range from -7V to +12V.
Operating temperature range from -40°C to 85°C supporting industrial applications.

Product Description

Renesas Electronics ISL3283EIHZ-T is a high-performance line transceiver featuring differential bipolar architecture and CMOS logic family, encapsulated in a 6-pin SOT-23 surface-mount package.

This line transceiver IC meets standards RS-485 and RS-422, providing reliable differential data transmission with very low bus load due to its low supply current of 500μA. It offers high-speed data rates up to 20Mbps, making it ideal for fast communication systems in industrial and commercial electronics.

The device integrates a full fail-safe input design which guarantees a logic high output when receiver inputs are floating, shorted, or terminated but not driven, increasing robustness in noisy environments.

Its common mode input voltage tolerance spans from -7V to +12V, supporting operation in diverse electrical conditions, and it maintains stable operation across a broad temperature range from -40°C to 85°C suitable for automotive and industrial use.

With compact 2.9mm by 2.8mm footprint and low profile height of 1.15mm, the ISL3283EIHZ-T enables space-saving PCB layouts without compromising performance. Compatible with RS-485 and RS-422 communication standards. High ESD protection up to ±16.5kV IEC61000 standard.

Operates from 3.0V to 5.5V supply voltage range. Low supply current of 500μA for efficient power consumption. High data rates supporting up to 20Mbps communication speed. Full fail-safe receiver ensuring logic high output under fault conditions.

Wide common mode voltage range from -7V to +12V. Industrial temperature range of -40°C to 85°C. Compact 6-pin SOT-23 surface mount package.

This line transceiver is suited for use in industrial automation, building management systems, communication networks, and other environments where balanced, differential signal transmission is required.
