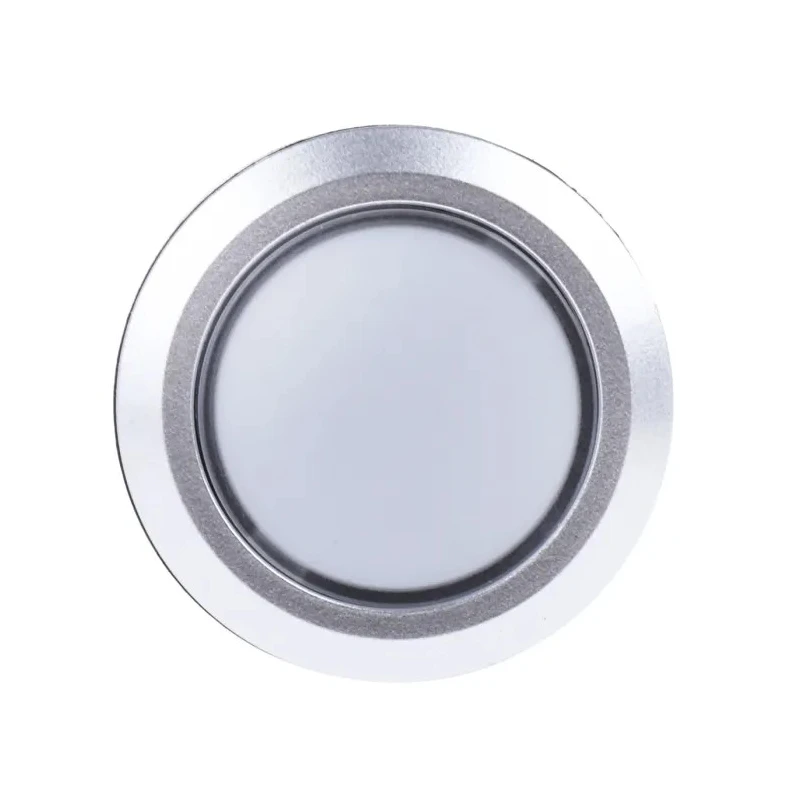

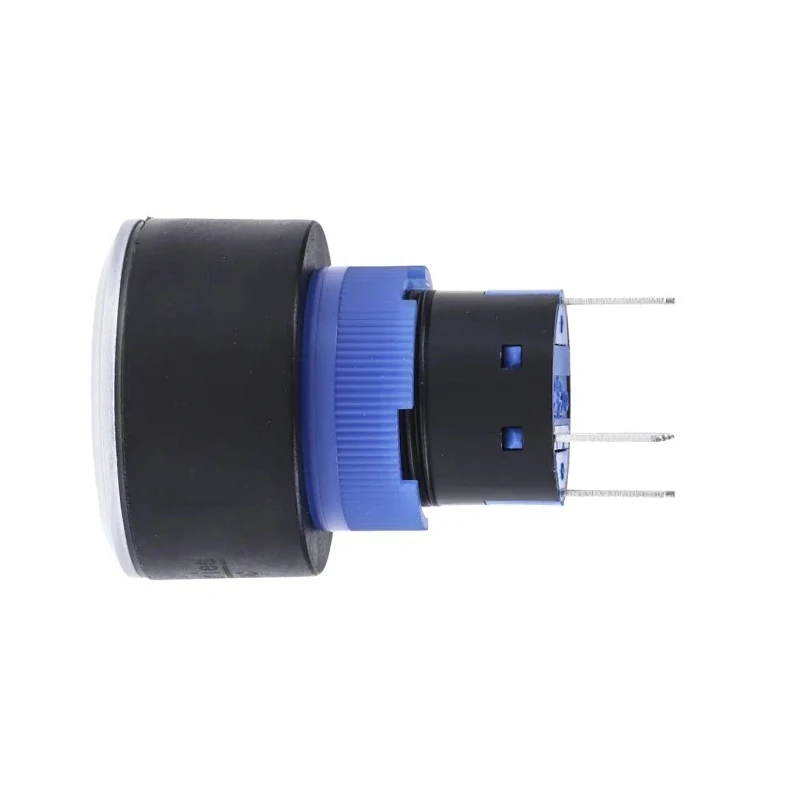

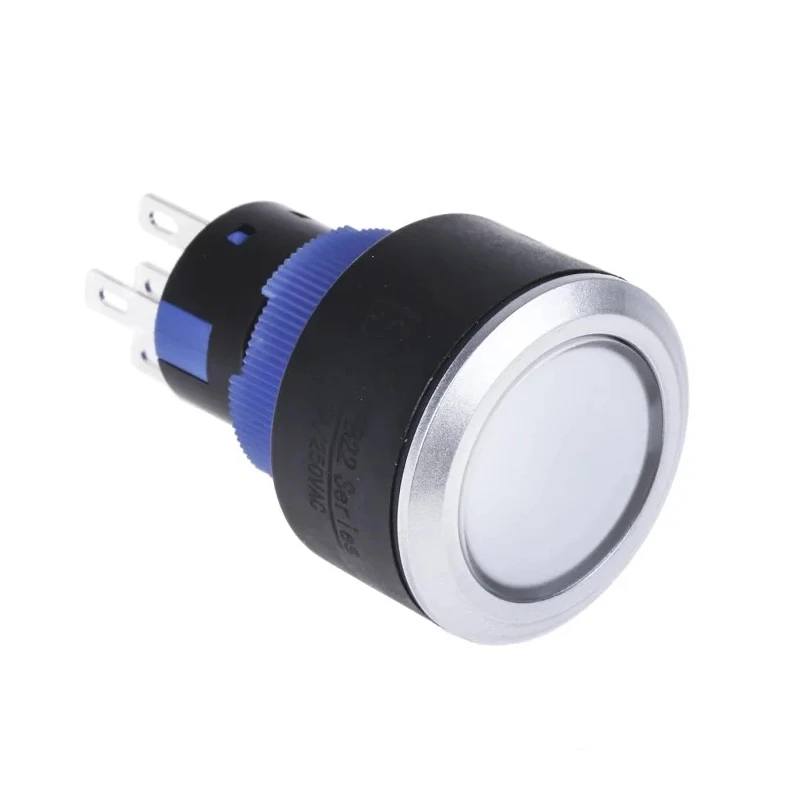

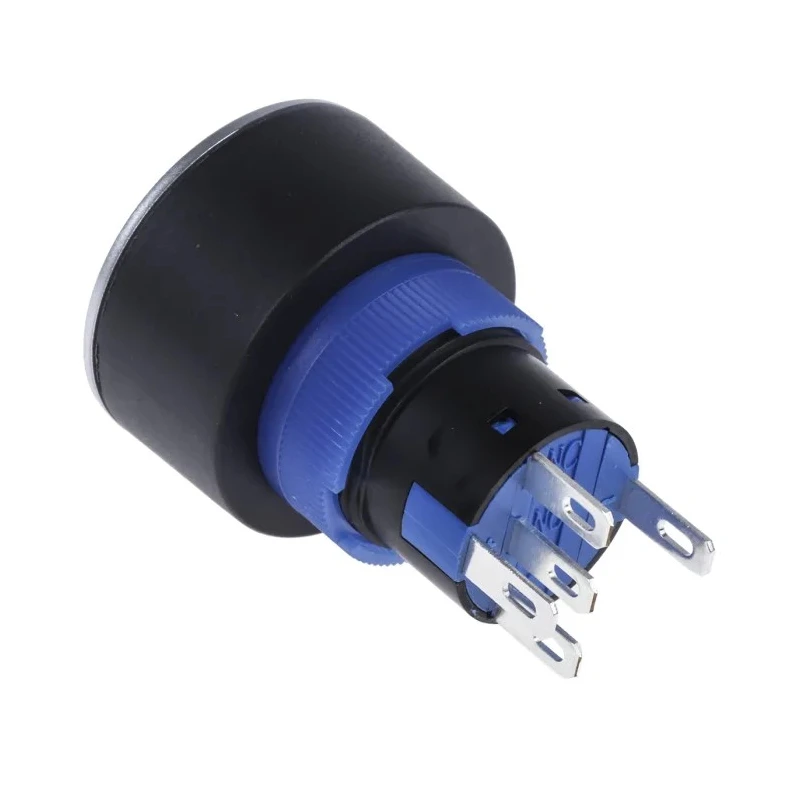

RS PRO Illuminated Momentary Push Button Switch Panel Mount 22.2 mm Cutout SPDT White LED IP65 250 V AC 175-8301
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 175-8301 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | White |
| Switch Operation | Momentary |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Momentary switch operation for temporary contact activation.
- Illuminated with a bright white LED for clear status indication.
- Panel mount type with a precise 22.2 mm cutout size for installation.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Durable IP65 rated enclosure ensuring dust and water resistance.
- Flat actuator style for easy pressing and ergonomic use.
- Rated for AC and DC voltage operation up to 250 volts.
- Switch contact current rated at 3.5 A for reliable electrical performance.
Product Description
RS PRO 175-8301 is a high-quality illuminated momentary push button switch designed for robust panel mounting applications requiring a 22.2 mm cutout. This push button switch features a Single Pole Double Throw (SPDT) contact configuration, providing flexibility for diverse electrical circuit setups. Its white LED illumination ensures clear visual indication, ideal for control panels and user interfaces.
The switch has an IP65 rating, making it dust-tight and protected against water jets, which suits industrial, automation, communication equipment, wireless applications, and electronic measuring instruments. The flat actuator style enhances usability for frequent operations.
Operating reliably within temperatures from -35°C up to 70°C, the switch supports contact voltages of 250 V AC and DC, and a contact current of 3.5 A, making it suitable for office equipment, industrial machinery, and communication systems.
The switch body employs lightweight plastic with a customized carved pattern and a durable silver metal cap integrated with LED lighting. This combination ensures longevity and clear functionality in various electrical applications.
Momentary switch operation for temporary activation. White LED illumination for enhanced visibility. Precise 22.2 mm panel cutout size. IP65 rating for robust environmental protection. SPDT contact configuration for versatile switching.
Rated 250 V AC/DC voltage operation. Switch contact current rated at 3.5 A. Operating temperature from -35°C to 70°C. Ergonomic flat actuator design. Plastic cover with silver metal cap and LED light.
This RS PRO push button switch is essential for applications in industrial automation, telecommunications, office and industrial equipment where dependable illumination and momentary switching are required. It meets UL 94 V-0 and V-2 standards for safety and quality.
Browse the full selection of Push Button Switches at EnvMart to find compatible switches and components tailored to your electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch requires a precise panel cutout size of 22.2 mm for installation.
It has an IP65 rating, making it dust-tight and protected against water jets.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching options.
The maximum operating temperature for this switch is 70°C.
It is rated for operation at 250 V AC and 250 V DC.
The switch contact current is rated at 3.5 A, ensuring reliable electrical performance.
This model features a flat actuator style, which enhances usability for frequent operations.
The switch body is made of lightweight plastic with a silver metal cap integrated with LED lighting.
It meets UL 94 V-0 and UL 94 V-2 standards for safety and quality.
The minimum operating temperature for this switch is -35°C.
This push button switch is suitable for applications in industrial automation, telecommunications, and office equipment.
The switch features solder terminal types for connection.
