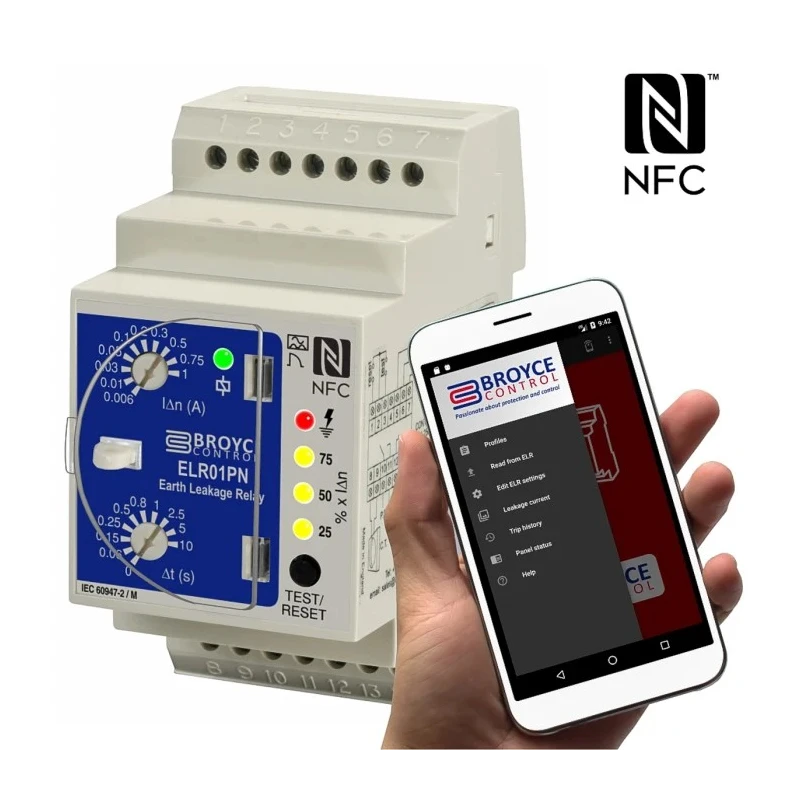

Broyce Control Earth Leakage Relay, Type A, 50 to 60 Hz Frequency, Leakage 1.5 mA to 1 A, SPNO SPDT ELR01PN 24-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency range | 50 to 60 Hz |
| Output | SPNO, SPDT |
| Brand | Broyce Control |
| Height | 85mm |
| Length | 44mm |
| Model | ELR01PN 24-230V AC/DC |
| IP Rating | IP20 |
| Width | 44mm |
| Mount Type | DIN Rail |
| Protection Class | Type A |
| Series | ELR0 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Input Voltage | 230, 24V ac/dc |
| Test Function | Remote |
| Standards/Approvals | CE and RoHS, IEC 60947-2, IEC 60755, IEC 61543, CISPR 22, C-Tick, IEC 62020, IEC 61000-4 Series, Annex M |
| Contact Current | 8A |
| Leakage Range | 1.5 mA to 1 A |
Key Features
- Type A protection class ensures sensitive earth fault detection.
- Flexible input voltage compatible with 24V and 230V AC/DC supplies.
- SPNO & SPDT relay outputs configurable for multiple applications.
- DIN rail mount design for easy installation in control panels.
- Remote test function for simplified maintenance and safety checks.
- Compact size with dimensions 44mm x 44mm x 85mm.
- Wide operating temperature range from -20°C to 60°C.
- Compliance with international standards including IEC and CE certifications.
Product Description
Broyce Control ELR01PN 24-230V AC/DC Earth Leakage Relay is a type A device designed to provide sensitive earth fault detection for industrial and commercial electrical systems. Operating at a frequency range of 50 to 60 Hz, this relay detects leakage currents ranging from 1.5 mA to 1 A, ensuring prompt disconnection and enhanced safety. Featuring both SPNO and SPDT relay outputs, it offers versatility in electrical circuit integration.
The unit supports a multi-voltage input of 24V to 230V AC/DC and mounts conveniently on standard DIN rails, making it suitable for control and automation panels. Its compact dimensions of 44 mm width and length, with an 85 mm height, allow for space-efficient installations. The relay includes a remote test function, simplifying routine maintenance and safety verification procedures.
Designed to operate reliably in harsh environments, it withstands temperatures from -20°C up to 60°C. With an IP20 rating, it offers basic protection from solid objects. This product complies with multiple international safety and performance standards such as IEC 60947-2, IEC 60755, IEC 61543, CISPR 22, and has CE and RoHS certification. Originating from the United Kingdom, it represents high quality and trusted performance in earth leakage protection.
Ideal for use in industrial automation, electrical panels, manufacturing facilities, and commercial buildings, this relay enhances system safety by preventing hazardous leakage currents and potential electrical shocks.
Type A protection class ensures sensitive earth fault detection. Flexible input voltage compatible with 24V and 230V AC/DC supplies. SPNO & SPDT relay outputs configurable for multiple applications. DIN rail mount design for easy installation in control panels.
Remote test function for simplified maintenance and safety checks. Compact size with dimensions 44mm x 44mm x 85mm. Wide operating temperature range from -20°C to 60°C. Compliance with international standards including IEC and CE certifications.
Browse more advanced relay solutions and automation gear at EnvMart to enhance your electrical protection systems.
Explore more products in our Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 50 to 60 Hz, making it suitable for various electrical systems.
It detects leakage currents ranging from 1.5 mA to 1 A, ensuring effective monitoring of earth faults.
The relay offers both SPNO (Single Pole Normally Open) and SPDT (Single Pole Double Throw) outputs, allowing for versatile applications.
It is compatible with input voltages of 24V and 230V AC/DC, providing flexibility for different installations.
The relay has compact dimensions of 44 mm in width and length, and 85 mm in height, facilitating space-efficient installation.
It can operate reliably in temperatures ranging from -20°C to 60°C, making it suitable for harsh environments.
This unit is designed for DIN rail mounting, allowing for easy installation in control panels.
Yes, it features a remote test function that simplifies maintenance and safety checks.
It complies with multiple international standards including IEC 60947-2, IEC 60755, IEC 61543, and is CE and RoHS certified.
The relay has an IP20 rating, providing basic protection against solid objects.
The maximum contact current for this unit is 8A, suitable for various electrical applications.
This relay is ideal for use in industrial automation, electrical panels, manufacturing facilities, and commercial buildings, enhancing system safety.
