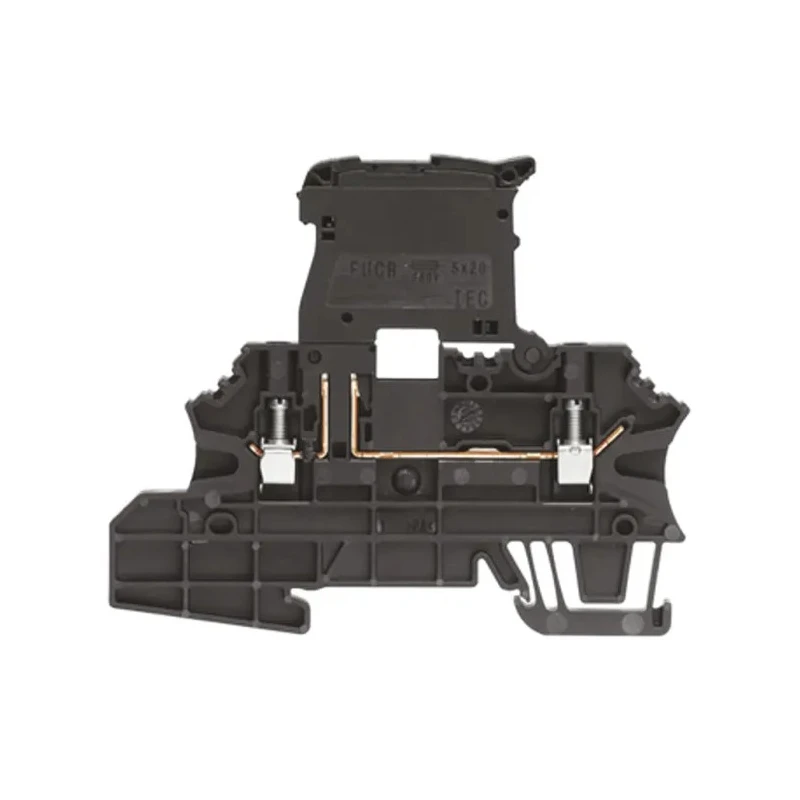

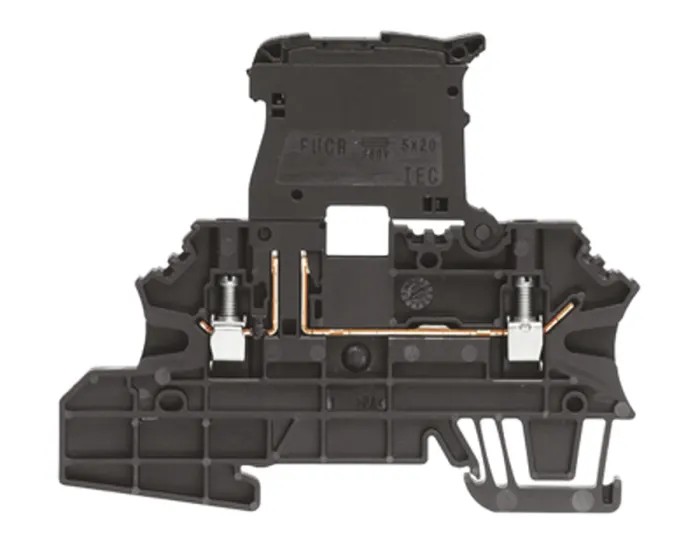

Weidmüller W Series 1-Level Fused DIN Rail Terminal Black, Screw Termination, 500V, 6.3A, 2.5mm² Cable 1162920000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 500V |
| Brand | Weidmüller |
| Colour | Black |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 5.08mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 6.3A |
Key Features
- Single-level fused DIN rail terminal block providing reliable circuit protection.
- Made from durable black nylon 6.6 material with self-extinguishing UL94V-0 rating.
- Screw clamp termination ensures secure electrical connections.
- Compact 5.08mm pitch allows for space-saving DIN rail assembly.
- Operates safely within a temperature range from -50°C to 120°C.
- Rated for a maximum current of 6.3 amperes and voltage up to 500 volts.
- Suitable for wire sizes from 12AWG to 26AWG (2.5mm² cable CSA).
- Current bars fabricated from 10 mm electrolytic copper for enhanced conductivity.
Product Description
Weidmüller 1162920000 W Series 1-Level fused DIN Rail Terminal is a compact and versatile terminal block tailored for efficient signal routing and circuit protection in industrial and electronic applications. Constructed from high-grade black nylon 6.6, this terminal offers a continuous operating temperature rating of 120°C and complies with UL94V-0 for self-extinguishing properties. Its screw clamp termination system ensures secure and stable electrical connections suitable for wire sizes from 12 AWG down to 26 AWG (2.5mm² cable cross-sectional area).
The terminal block is rated for 500 volts and supports a maximum terminal block current of 6.3 amperes. The compact 5.08mm pitch makes it ideal for dense DIN rail assemblies, optimizing space on the mounting rail. The device is engineered for installation on symmetric 'Top Hat' DIN rail profiles as per BS5584:1978 and EN 50022 standards, ensuring widespread compatibility with common industrial control panels.
The internal current bars are manufactured from 10 mm electrolytic copper, providing reliable current load capacity and minimal electrical resistance. The terminal block design is touch-proof according to BS 3042, promoting enhanced user safety during installation and maintenance.
The product operates reliably across a broad temperature range from -50°C to 120°C, making it apt for demanding industrial environments including electrical distribution, control systems, automation settings, and laboratory instrumentation.
This fused DIN Rail Terminal integrates feed-through, fuse, and disconnect functionality into one compact component, enabling versatile electrical circuit protection and distribution solutions in commercial and industrial applications.
Single-level fused protection to safeguard circuits efficiently. Made from robust nylon 6.6 with self-extinguishing UL94V-0 rating. Screw clamp termination for secure connections. Compact 5.08mm pitch enables dense mounting on DIN rails.
Wide operating temperature range from -50°C to 120°C. 500V voltage rating suitable for various industrial circuits. Current capacity of 6.3A supported by electrolytic copper current bars. Compatible with wire sizes 12AWG to 26AWG (2.5mm² CSA).
Designed for symmetric 'Top Hat' DIN rail installation adherence. Touch-proof construction for enhanced safety. Explore more products in the EnvMart Electronics Components catalog for electrical panel solutions and terminal block accessories.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a maximum voltage of 500 volts.
It supports a maximum terminal block current of 6.3 amperes.
This terminal block is suitable for wire sizes ranging from 12 AWG to 26 AWG, which corresponds to a cable cross-sectional area of 2.5mm².
It features a screw clamp termination system for secure electrical connections.
The terminal operates safely within a temperature range from -50°C to 120°C.
The compact pitch size is 5.08mm, allowing for space-saving assembly on DIN rails.
It is made from black nylon 6.6, which has a self-extinguishing UL94V-0 rating for safety.
The country of origin for this terminal block is Romania.
Yes, it features a touch-proof construction according to BS 3042, enhancing user safety during installation and maintenance.
It is designed for installation on symmetric 'Top Hat' DIN rail profiles in accordance with BS5584:1978 and EN 50022 standards.
It is engineered for use in electrical distribution, control systems, automation settings, and laboratory instrumentation.
