| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.5mm |
| Length | 1.02mm |
| Model | PESD5V0F1BL,315 |
| Width | 0.62mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 15V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Bi-Directional |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 100nA |

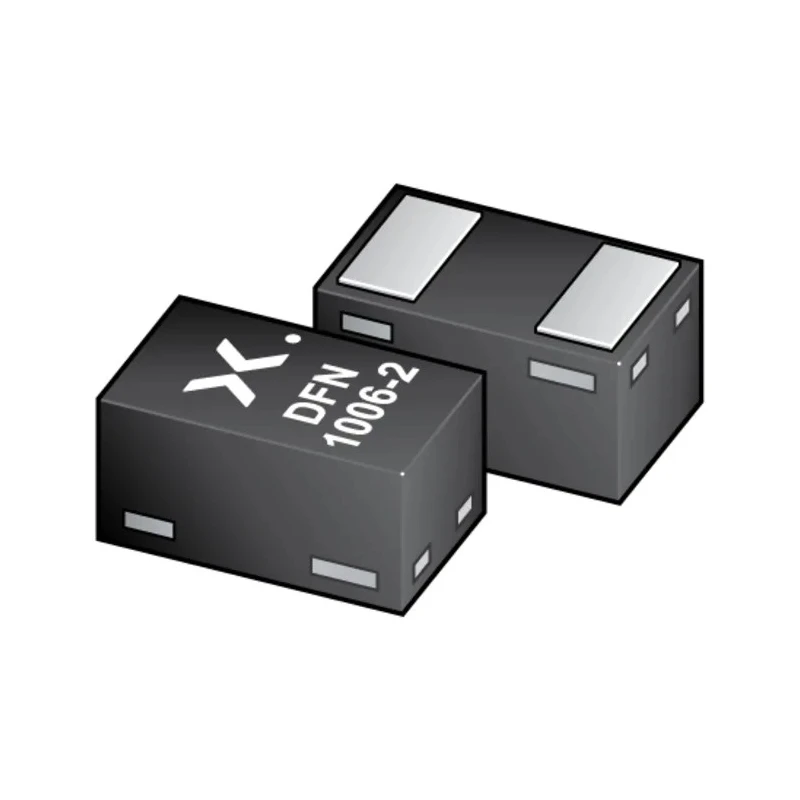

Nexperia PESD5V0F1BL,315 2-Element Bi-Directional ESD Protection Diode is a surface mount device designed to protect sensitive electronic circuits from electrostatic discharge and other transient voltage events. Packaged in a small SOD-882 plastic leadless package, this diode offers ultra low capacitance and low leakage current for high-speed data line applications including telecommunications, mobile devices, and antenna circuits.
The device supports a maximum continuous voltage of 5.5 V and a breakdown voltage of 6 V, ensuring robust protection against voltage spikes. It features a low clamping voltage at 15 V and a peak pulse current capability of 2.5 A, making it suitable for transient voltage suppression.
Capable of operating across a wide temperature range from -40°C to 125°C, this diode is reliable in automotive and industrial environments. The bidirectional configuration allows it to clamp both positive and negative voltage transients.
Its ultra compact footprint with dimensions 1.02 mm x 0.62 mm x 0.5 mm optimizes PCB space utilization while maintaining excellent ESD performance. The device complies with AEC-Q101 automotive standards ensuring durability and high quality for automotive system applications.
Bidirectional electrostatic discharge protection for signal lines. Extremely low diode capacitance of around 0.4 pF minimizes signal interference. Low leakage current enhances efficiency and device longevity. Surface mount SOD-882 package enables automated assembly.
Wide operating temperature supports industrial and automotive uses.
Typical applications include TVS protection for USB, HDMI, and other communication interfaces, antenna protection in wireless devices, and safeguarding high-speed data lines in various electronic equipment.
Origin: China. Product condition: New. Explore the complete range of semiconductor components and ESD Protection Diodes on EnvMart for your industrial, automotive, telecommunications, and consumer electronics projects.
