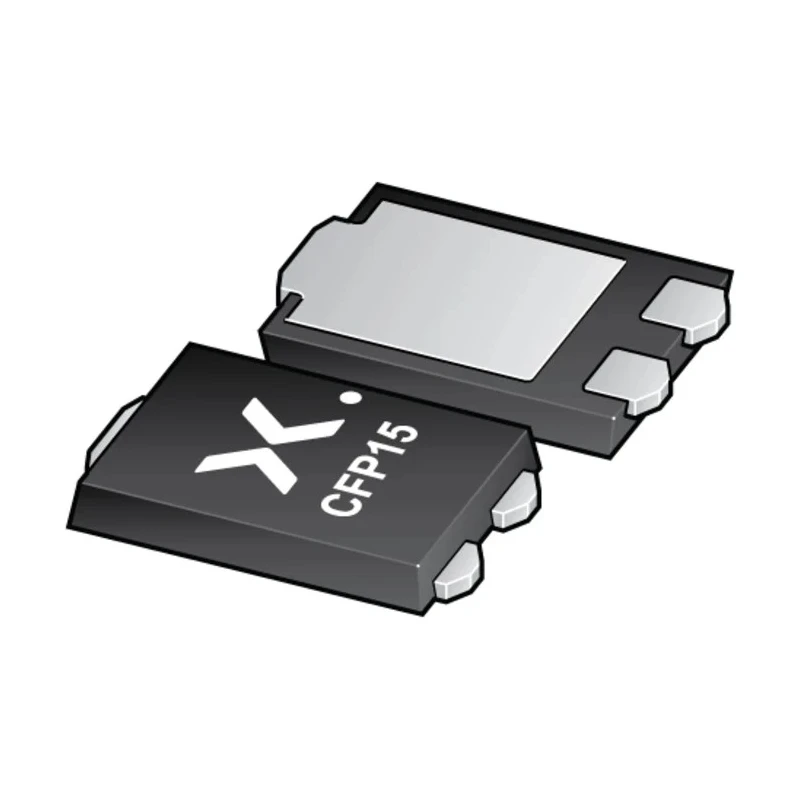

Nexperia 60 V 14 A Schottky Diode Surface Mount 3-Pin CFP15 Package PMEG060V100EPDZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.78mm |
| Length | 5.8mm |
| Model | PMEG060V100EPDZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 14A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 700μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 560mV |
| Peak Reverse Recovery Time trr | 33ns |
| Average forward current | IF(AV) ≤ 10 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- Surface mount diode with 3-pin CFP15 power plastic package.
- Maximum continuous forward current of 14 A ensures robust performance.
- Peak reverse repetitive voltage rating of 60 V for reliable protection.
- Low forward voltage drop of 560 mV enhances energy efficiency.
- Peak non-repetitive forward surge current of 210 A supports transient loads.
- Operating temperature range from -55°C to 175°C for industrial applications.
- Automotive grade AEC-Q101 qualified for high reliability.
- Reverse recovery time of 33 ns suitable for high-speed switching circuits.
Product Description
Nexperia PMEG060V100EPDZ is a Schottky diode designed with a surface mount 3-pin CFP15 package, rated at 60 V reverse voltage and 14 A forward current. This diode features a low forward voltage drop of 560 mV that minimizes power loss and heat generation, making it ideal for high efficiency DC-to-DC converters, freewheeling, and reverse polarity protection applications in industrial, automotive, and power supply systems.
The device supports a peak non-repetitive forward surge current of 210 A, enabling it to withstand transient current conditions without damage. It operates reliably across a temperature range from -55°C to 175°C and is manufactured using clip-bonding technology for superior heat dissipation and power capability. The small and thin CFP15 package (5.8 mm × 4.3 mm × 0.78 mm) reduces board space usage, making it suitable for compact electronic assemblies.
This Schottky diode meets the AEC-Q101 automotive standard, ensuring high reliability in automotive electronics. Its fast recovery time of 33 ns supports switching power supplies and other fast switching circuits. Typical applications include switch mode power supplies, automotive electrical systems, low power consumption circuits, and general rectification tasks requiring high efficiency and robustness.
Surface mount 3-pin CFP15 package for compact, robust installations. Rated 14 A forward current and 60 V reverse voltage for versatile applications. Low forward voltage of 560 mV reduces power dissipation. High peak surge current capacity of 210 A for transient conditions.
Wide operating temperature range from -55°C to 175°C. AEC-Q101 qualified for automotive-grade reliability. Fast reverse recovery time of 33 ns suitable for fast switching applications. Low power consumption and high efficiency rectification.
Expertly engineered for industrial and automotive electronics, the PMEG060V100EPDZ Schottky diode combines performance and reliability in a compact surface mount format. Explore the Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers category on EnvMart for more components like this high-efficiency rectifier.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 14 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The forward voltage drop is 560 mV, which enhances energy efficiency.
It supports a peak non-repetitive forward surge current of 210 A.
The operating temperature range is from -55°C to 175°C.
The reverse recovery time is 33 ns, making it suitable for high-speed switching circuits.
This model is packaged in a surface mount 3-pin CFP15 package.
The dimensions of the CFP15 package are 5.8 mm in length, 4.3 mm in width, and 0.78 mm in height.
Yes, it is AEC-Q101 qualified, ensuring high reliability for automotive electronics.
The average forward current rating is IF(AV) ≤ 10 A.
This model is a Schottky rectifier, known for its low forward voltage drop and high efficiency.
The diode configuration is common cathode.
